table hydraulic elevatorModify Date : 2020-08-07 13:38:39

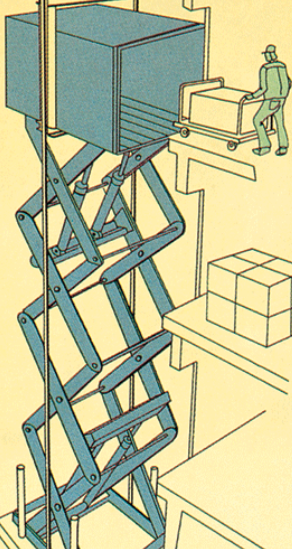

Characteristics
The maximum benefit of the table hydraulic elevator is that it can be used in a small area of installation or by repairing parts of an existing building, depending on the purpose of the cargo.
Also, the mechanical room is installed on the inside of the lower or elevator without having to be located at the top, so the design is designed so that there are no architectural problems.
Also, the power (power cost) is only about half the cost of other elevators.

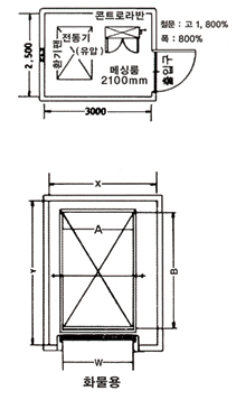

floor plan


specification

형식적재량
(kg)
속도
(m/ min)
전동기
(kw)
출입구
출입구
높이
카규격 (m/m)승강로규격
(m/m)
양정거리
(m)
ABXYaOHP
JS-1420 -0880045.514002100140020001900260075035009003.7
41112004
JS-1820 -10100047.518002100180020002300260075035009003.7
41512004.9
JS-2025 -151500411200021002000250026003100750350010006.8
418.513005.4
JS-2230 -202000411220022102200300028003600750350012007.7
15005.6
JS-2530 -252500411250025002500300031003600750400013007.7
16004.6
JS-2525 -303000414250025002500250031004200750400011006.5
43015004.8
JS-2828 -353500415280015002800280034004400750400011004.8
43015007.2
