CNC RG MULTI
RG-MULTI is a CNC tool grinding machine designed to provide maximum grinding performance in a minimum space. It can satisfy the need for machining time and precision when processing products of ultra-durable, thermet, PCD and CBN materials. It is especially valuable in the processing of complex shapes.
*Introduction of products
The CNC 5-axis tool grinding machine RG-MULTI is a grinding machine for producing interchangeable inserts such as grooving, milling, turning, and profile bytes.
The various types of clamping systems are exchangeable for simple operation and are total systems that can be controlled through the equipment interface.
You can select various jigs depending on the workpiece and operate the processing order and processing form freely.
It is economical and effective in producing a variety of small quantities with short setup time.
- Increase productivity by mounting the robot (optional)
- Excellent in roughing with high power spindle installation
- Excellent operability as an integrated patterned processing program
- Easy to repair and replace by using standard
- It is easy to organize lines in the future during the period of use.
- Convenient operation and operation by ergonomic design
- 0.0001 Control by implementing feedback system on all control shafts

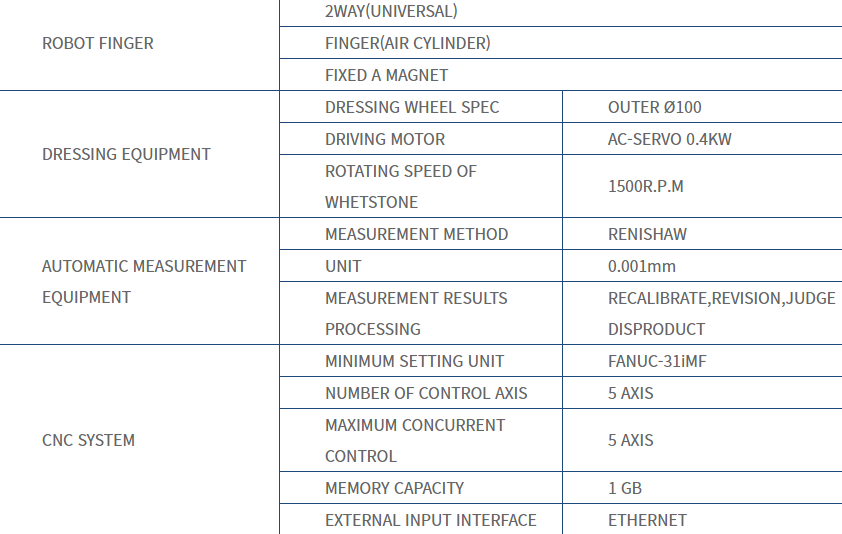

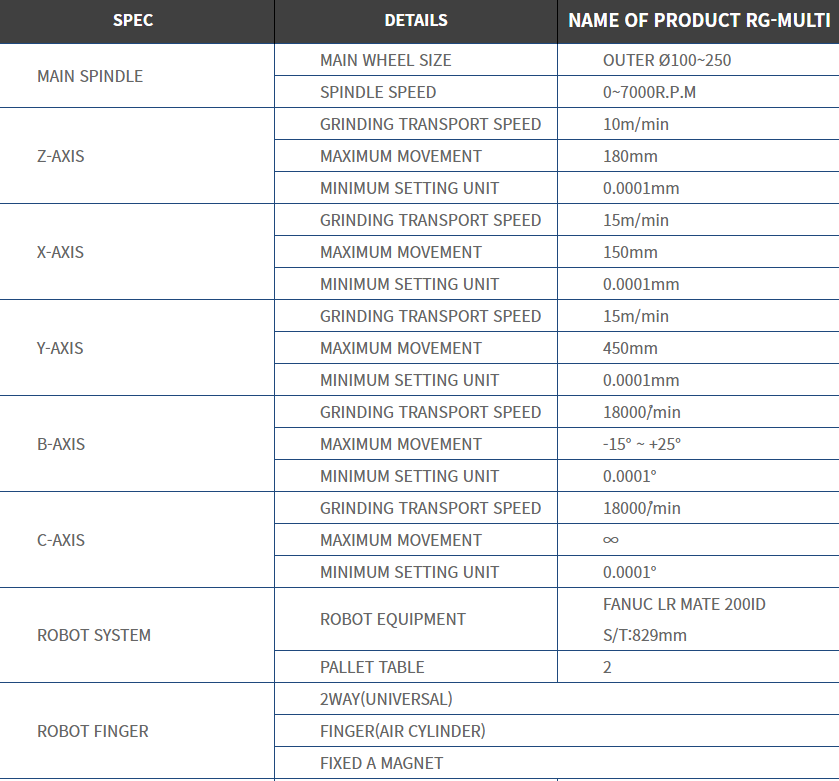

*Mechanical specifications

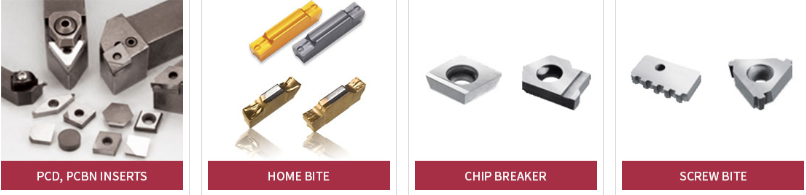

*A case of construction work

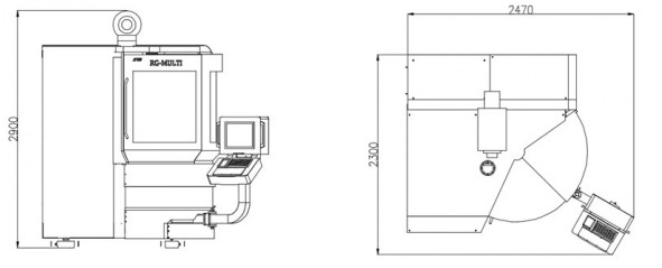

*Product Layout
