PP.PS.A-PET SHEET FLAT LINEModify Date : 2020-08-04 10:11:15

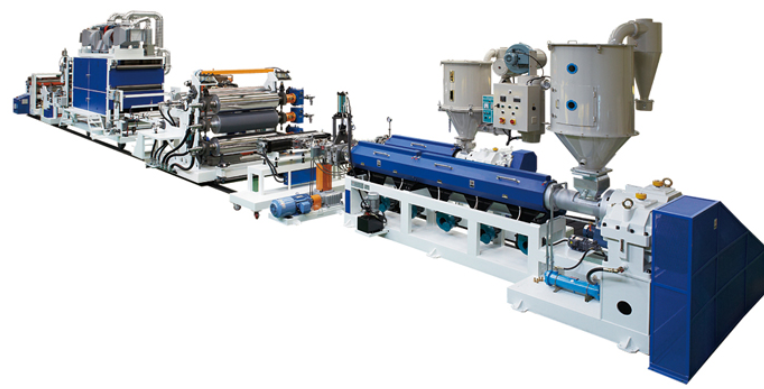

The above device is PP.It is a machine that produces flat, thin plate, single-layer and multi-layer sheets based on PS. It is a system for water cooling and coating, drying, extraction, and winding sharing.
It is a machine that minimizes thermal conductivity due to low-speed operation of the extruder, boasts maximum extrusion volume even at low-speed operation, and focuses on maintaining precise smoothness even at high discharge volume.
Specifications구분 | 형식 |
---|
Electricity(kw) | Φ3 AC 380V 60HZ X 90kw ~ 250kw |
---|
Screw Dia(Φ) | Φ100 ~ Φ150 |
---|
Sheet Thickness(m/m) | 0.3t ~ 1.5t |
---|
Thickness Toerance(m/m) | 두께편차 ±0.02 |
---|
Extrusion Capacity(kg/hr) | 300kg/hr ~ 1300kg/hr |
---|
Sheet Width(m/m) | 300 ~ |
---|
Screw(RPM) | 0 ~ 55 |
---|
※ Specification are subject to change without notice. 구분 | A | B | C | D | E | F | G | H | I | J | K | L | M | O | P |
---|
100m/m | 1200 | 2500 | 4355 | 515 | 560 | 1185 | 2850 | 2455 | 6000 | 630 | 1450 | 2410 | 1600 | 1155 | 27m 665 |
---|
120m/m | 1200 | 2500 | 5124 | 515 | 560 | 1185 | 2850 | 2455 | 6000 | 630 | 1450 | 2410 | 1600 | 1155 | 28m 434 |
---|
130m/m | 1200 | 2500 | 5055 | 515 | 560 | 1185 | 2850 | 2455 | 6000 | 630 | 1450 | 2410 | 1600 | 1155 | 28m 815 |
---|
150m/m | 1200 | 2500 | 6643 | 515 | 560 | 1185 | 2850 | 2455 | 6000 | 630 | 1450 | 2410 | 1600 | 1155 | 29m 953 |
---|
|
