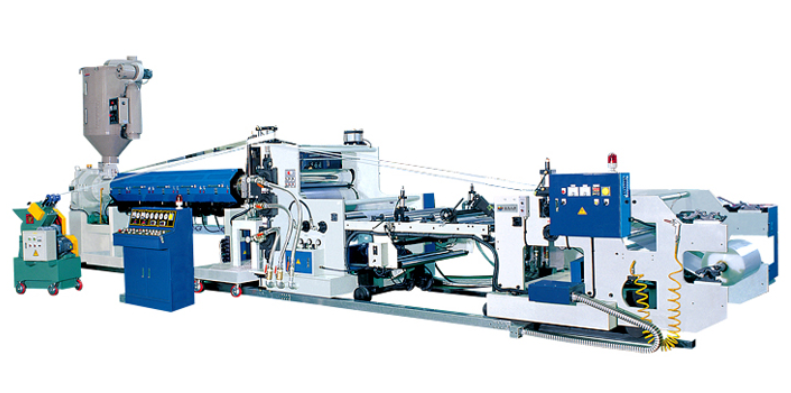

PP.PS.A-PET SHEET LINEModify Date : 2020-08-04 10:09:57
The above device is PP.It is a machine that produces thin plate, single layer and multi-layer sheet using PS as raw material, and it is a system that produces water cooling, coating, drying, drawing, and winding.
It is a machine that minimizes thermal conductivity due to low-speed operation of the extruder, boasts maximum extrusion volume even at low-speed operation, and focuses on maintaining precise smoothness even at high discharge volume.
Specifications
| 구분 | 형식 |
|---|---|
| Electricity(kw) | Φ3 AC 380V 60HZ X 90kw ~250kw |
| Screw Dia(Φ) | Φ100 ~ Φ150 |
| Sheet Thickness(m/m) | 0.3t ~ 1.5t |
| Thickness Toerance(m/m) | 두께편차 ±0.02 |
| Extrusion Capacity(kg/hr) | 300kg/hr ~ 1300kg/hr |
| Sheet Width(m/m) | 300 ~ |
| Screw(RPM) | 0 ~ 55 |
