packaging line automationModify Date : 2020-08-03 13:08:50

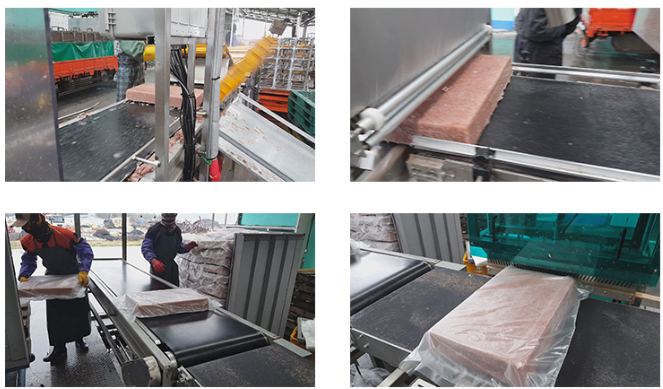

frozen feed packing line
•Packing line before shipment of frozen feed
< Previous process >
1.paste and load in tray; > freeze
2.Remove frozen product -> tray
3.Frozen feed removed from tray -> Put in plastic bag
4.Frozen after loading pallets
< Post-improvement process >
1.paste and load in tray; > freeze
2.Remove frozen product -> tray
3.Frozen feed removed from tray -> conveyer transfer
4.Automatic packing -> Freezing after loading pallets
* Speeds up work with fine-grained control using a microprocessor.
* If plastic packaging is not done when loading after removing the tray, packaging is necessary because the products stick together during freezing.
* Automates vinyl input processes that used existing personnel and increases workload and reduces worker fatigue compared to labor costs.
calendar packing line
•Load the wall-mounted calendar in individual shrinkage
< Previous process >
1.converged heavy iron -> temporary loading before moving the porous line
2.Traffic -> Temporary loading before moving the packing line
3. Shrinkage packing
4.Insert boxes according to quantity after convergence
< Post-improvement process >
After convergence, heavy iron -> perforation -> feeder injection -> automatic insertion of packer conveyer - 수축 shrinkage packing -> quantitative loading - 박스 box packing

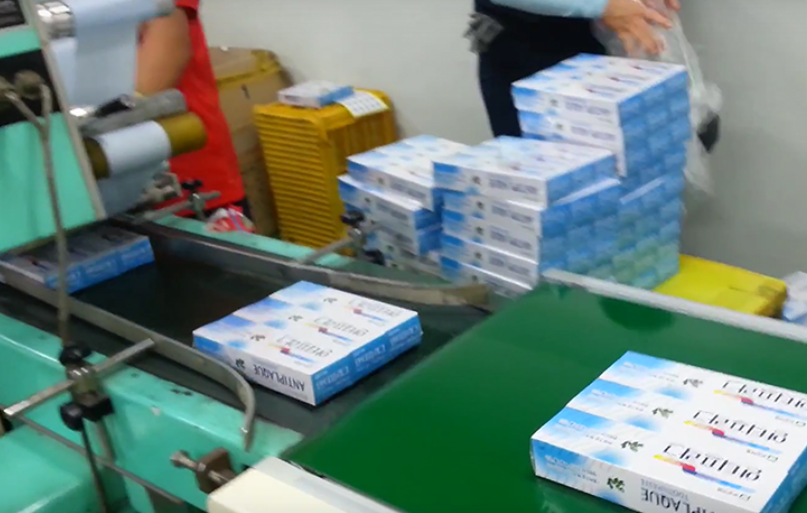

Automated bundle (bundle) packaging
• Pack products such as toothpaste in 1*2-1*5 form
1.Random entry of products into a transport conveyor
2. Transferring to a shrink packer in the desired quantity unit
3.Sorting pre-retract products (prevent distortion)
4. Shrinkage
5.labeling a product
