Pneumatic actuatorModify Date : 2020-08-03 11:22:24

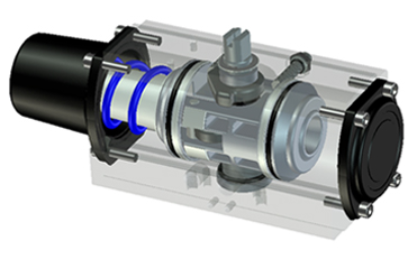

AD/AS(scotch yoke)

Attachable ValueRotary type valve
Operating Temperature-20°C~80°C (Option -40°C~200°C)
ConnectionISO5211, DIN3337, Namur standard
Operation ModeScotch-yoke
Operating MechanismDouble acting/Spring return
scotck yoke torque

Part List

scotch yoke part list

NOPart NameMaterial
1BodyAluminum Alloy
2ShaftSteel Alloy
(Nickel Plated)
3CrankSteel Alloy
4Bushing (Top)Engineering Plastic
5Body O-ring (Top)NBR
6Shaft Roller (Top)Engineering Plastic
7Bushing (Bottom)Engineering Plastic
8Body O-ring (Bottom)NBR
9Shaft Roller (Bottom)Engineering Plastic
10Body Washer (Bottom)Engineering Plastic
11Body Washer (Top)Stainless Steel
12Body Snap-ringStainless Steel
13PistonAluminum Alloy
14Piston O-ringNBR
NOPart NameMaterial
15Piston Guide-ringEngineering Plastic
16Piston PinSteel Alloy
17Piston RollerSteel Alloy
18Piston PadEngineering Plastic
19CoverAluminum Alloy
20Cover O-ringNBR
21Cover BoltSteel Alloy
22Spring CapEngineering Plastic
23SpringSpring
24StopperSteel Alloy
25Adjust WasherStainless Steel
26Adjust NutStainless Steel
27Adjust O-ringNBR
28Adjust BoltSteel Alloy

Operating Mechanism

Double actingAction "A"scotch yoke double acting

torque table dlmension table

Spring returnAction "A"
(Fail Closed)
scotch yoke spring return
Action "B"
(Fail Open)
scotch yoke single acting

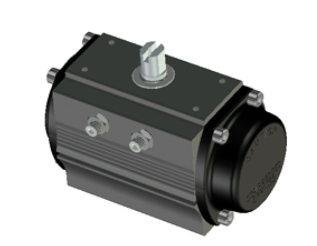

RD/RS(rack pinion)


Attachable ValueRotary type valve
Operating Temperature-20°C~80°C (Option -40°C~200°C)
ConnectionISO5211, DIN3337, Namur standard
Operation ModeRack&pinion
Operating MechanismDouble acting/Spring return
rack pinion torque

Part List

rack pinion part list
