Stick PoggiModify Date : 2020-07-30 11:15:25

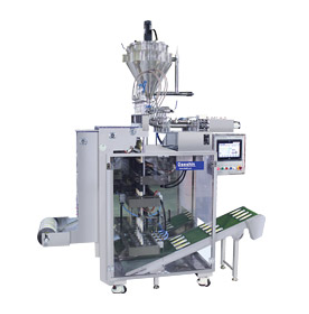

Stick packer (hwan, granulated)
DS-SP102

1. Major Functions
• Fully automatic vertical stick packer
• Two to ten columns of continuous operation
• PLC control by touch screen operation
• Measuring method :
- Volume-adjustable
- servo control method (optional)
• Individual setting :
- Content control
- Adjust the feed speed.
- Temperature control.
2. Applied Specimetry
• Raw material : - granulated
- Hwan
- Coffee.
- Protein powder.
- Besides seeds.
3. Standard functions
• Metering method: volume control method
• Frame: Steel frames and
exterior stainless
• Hopper: Hopper's product detection sensor
• Cutting : - Straight line (default)
- Zigzag, R-cutting (optional)
• Film sealing: Horizontal/Long sealing
• Tube: Form tubes, guides, and colors to meet the customer's specifications.
• Sensor control film tracking and easy setup
• Fast film adhesive table
• Film tension controller
• Cartridge heater
• Minimize remaining film and easily replace film
• Easy disassembly assembly
• Product residual processing capabilities
4. Control Functions
• PLC control
• Touchscreen : 8" Touchscreen
• Control the number of products and other variable speeds
• Temperature control
• Eye mark detection
• Adjust the length of the stick
5. Safety points
• Fully secured safety cover
• Automatically stop when there is no film
• Stop when the product is below a certain amount.
6. Options
• Trim and suction film edges
• Measuring method: - servo control method
• Cutting : Zigzag , R Cutting and Other Prints
• Raw material automatic feeder
• Product discharge conveyer
• Collection equipment

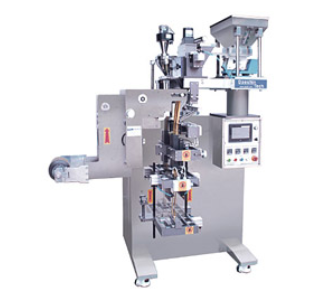

stick packer (liquid)
 DS-LSP102

1. Major Functions
• Fully automatic vertical stick packer
• Two to ten columns of continuous operation
• PLC control by touch screen operation
• Filling method : servo actuator
• Individual setting :
- Piston actuator
- Nozzle Check
- Temperature control.
2. Applied Specimetry
• Liquid: - Pastes with solids
- a viscous liquid.
- Outside the water.
3. Standard functions
• Piston: servo drive method
• Frame: Steel frames and
exterior stainless
• Hopper: Hopper's product level sensor
• Cutting : - Straight line (default)
- Easy such as zigzag, R-cutting, notch and perforation (optional)
• Film sealing: Horizontal/Long sealing
• Tube: Form tubes, guides, and colors to meet the customer's specifications.
• Sensor control film tracking and easy setup
• Fast film adhesive table
• Film tension controller
• Cartridge heater
• Minimize remaining film and easily replace film
• Nozzle cleaning function and easy disassembly assembly
• Product residual processing capabilities

4. Control Functions
• PLC control
• Touchscreen: 10" Touchscreen
• Charge amount control
• Batch production SET UP.
• Store parameter values by product
• Control the number of products and other variable speeds
• Temperature control
• Eye mark detection
• Adjust the length of the stick
• Piston suction speed
• Piston discharge rate
5. Safety points
• Fully secured safety cover
• Automatically stop when there is no film
• Stop when the product is below a certain amount.
6. Options
• Film edge trimming and suction printing
• Raw material automatic feed pump
• Product discharge conveyer
• Hopper and stirrer for heavy water use
