APCModify Date : 2020-07-30 09:33:04

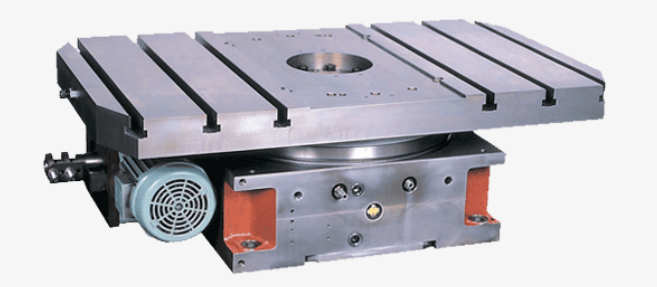

APC
SPECIFICATION

CONDITIONSA사양 (KN40)B사양 (KN30)
Table (lenght x width)1000 x 600800 x 500
Mass of table280kg180kg
Mass of workpiece (with jig)200kg x 2200kg x 2
Max. length : workpirce center-Table center325250
Workpiece (with Jig) (lenght x width)350 x 600300 x 500
1 index time3.2 sec2.4 sec
Allowable mass (Including table abd Jig)680kg680kg
Number of input shaft soeed ranges1500 / min2000 / min
