TORQUE LIMITERModify Date : 2020-07-30 09:30:34

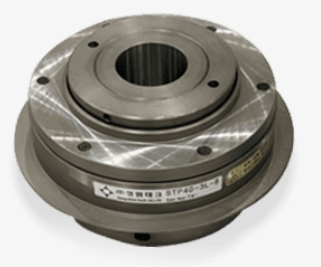

TORQUE LIMITER
TORQUE LIMITER SPECIFICATIONS
Index Drive has a high degree of division and stable motor characteristics. It is a highly rigid structure without backlash. Torque Limiter is a device developed to protect such Index Drive. The torque limiter attaches to the output shaft of the Index Drive to protect the Index Drive from overload.
Rotate - Roller Gear Cam Use, Top - Home Cam Use
SPO80 → 50mm ST Max, SPO100 → 80mm ST Max 80mm

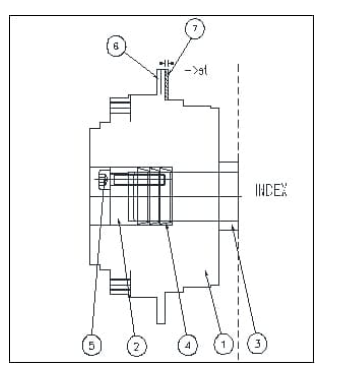

Structure and Operation
If Over Load occurs, slide the flange towards (7). As the spring is compressed and the inner ball is dislodged, the overload is cut off and the power can be cut off by an electrical detector (installation of a close switch, etc.) while moving towards the flange (7).
method of return to home position
After Over Load occurs, when restarting, automatically return to the correct position within one revolution. Therefore, when overload occurs, the power source (motor) must be shut off quickly with an electrical detector (near switch installation) to prevent continuous return to its home position.
precautions
If the number of turns used is high, the return may not be successful, so if possible, return to the home position in a low rotation. The number of rotations that can be returned to their home position may vary depending on the inertia of the longitudinal instrument, stiffness of the driving side, and torque setting torque of the Torque Limiter. In general, it is possible to return to 100 RPM.
Torque required for return is less than 10% of setup Torque.
The torque limiter is normally adjusted to the output load conditions on the output shaft of the index unit. It is used as a power lock. Torque adjustment is adjusted according to the output load conditions. The amount of shaking of the torque limiter shall not exceed the tolerance below. Sectional shaking not more than 0.04 m/radial shaking not more than 0.04 mm
