SPL Series

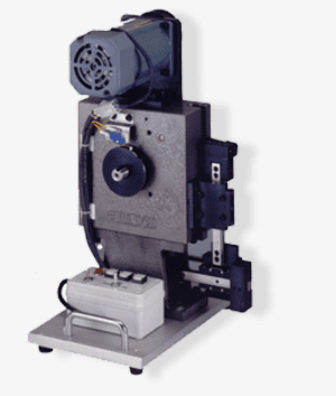

PICK & PLACE UNIT - SPL SERIES SPECIFICATIONS
It is a unit that uses 2 homecams to perform precise repetitive tasks that are superior to the hydraulic and pneumatic units.

It is designed with a compact structure with two homecams and block bearings.
Since it is a CAM drive, it can achieve stable operation compared to other methods.
The one-turn input shaft (CAM) operation alone can complete a certain operation, making it easy to control.
The movement of the HEAD part follows a strict CAM curve, so the object is very smooth.
CAM is an order made method that processes with TIMING required by the user.
The wet section uses LM-GUIDE, which ensures smooth operation and long life.
It is possible to implement various exercises ordered by customers, so it can be used for various purposes such as automated devices and electronic assembly machines.

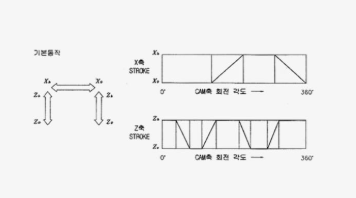

Since CAM is an order-made (order-making) method, you can freely select installment angles, strokes, etc. depending on customer orders, but the minimum amount of installment angle varies by stroke, so please refer to the table of minimum installment angles attached to the catalog to determine the TIMING lead. CHECK the shape of the interfering object so that possible X and Z movements can be OVER LAP, as it moves each position strictly during the CAM movement.

SRH Series

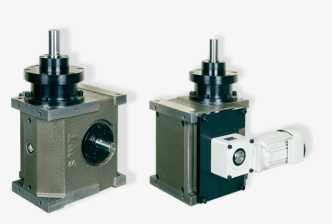

ROLLER GEAR OSCILLATING DRIVES - SRH SERIES SPECIFICATIONS
This is an index that allows for a combination of iso-rotation and up and down motion at the same time.
A combination of air-checks, vacuum pads, etc. can simplify the design of complex installations in multiple automated machines.

Rotate - Roller Gear Cam Use, Top - Home Cam Use
Compact structure suitable for upper and lower movement of 10mm or less
200 to 500 RPM High Speed Exercise Available

SPO Series

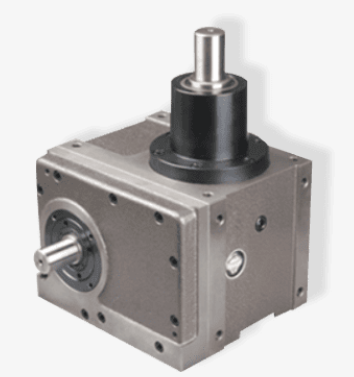

ROLLER GEAR OSCILLATING DRIVES - SPO SERIES SPO SERIES SPECIFICATION
This is an index that allows for a combination of iso-rotation and up and down motion at the same time.
A combination of air-checks, vacuum pads, etc. can simplify the design of complex installations in multiple automated machines.

Rotate - Roller Gear Cam Use, Top - Home Cam Use
SPO80 → 50mm ST Max, SPO100 → 80mm ST Max 80mm
