ROLLER GEAR INDEXModify Date : 2020-07-30 09:24:46

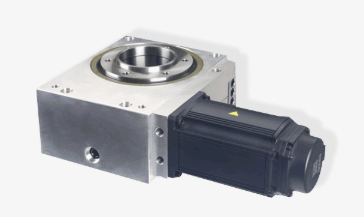

SRD Series
SERVO DRIVES - SRD SERIES SPECIFICATIONS
It is an index that allows free setting and control of all equivariates controlled by servomotor using constant speed roller gear cam.
It is suitable for precise positioning because there is no backlash in the regular and station directions.
Turntable Precision Positioning
Rotation and fluctuation arm drive, output shaft Daegu diameter hollow shaft for easy installation of piping and cables
Rotation of large substrates in semiconductor and LCD lines
precision drive of ball screw
Lower Turn Axis for Robots
Less backlash than moderator for servo motors and ensures high precision, high strength and long life

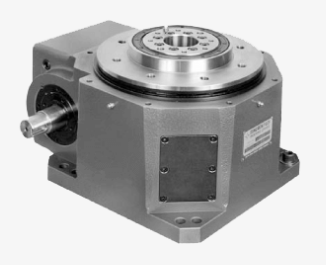

SRS Series
ROLLER GEAR INDEX - SRS SERIES SPECIFICATION
Axial distance: 45, 60, 70, 80, 110, 140, 170 and 200 mm.
Used CAM curve: Strain formation (MT), Strain correction (MS), Strain constant velocity (MCV) etc.
High-efficiency, high power output with roller-gear cam and camper bearings
No backlash. No vibration at high speed.
All six sides of the seal can be used as a kitchen surface, providing convenience in design.
Easy to use and fit with motor integral (OPTION)

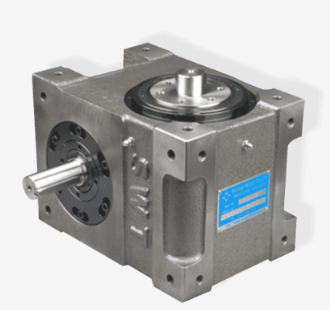

SRF Series
ROLLER GEAR INDEX - SRF SERIES SPECIFICATION
Axial distance: 45, 60, 70, 80, 110, 140, 170 and 200 mm.
Used CAM curve: Strain formation (MT), Strain correction (MS), Strain constant velocity (MCV) etc.
High-efficiency, high power output with roller-gear cam and camper bearings
No backlash. No vibration at high speed.
All six sides of the seal can be used as a kitchen surface, providing convenience in design.
Easy to use and fit with motor integral (OPTION

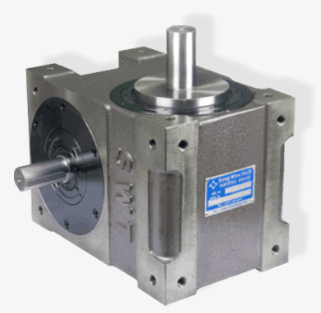

SRA Series
ROLLER GEAR INDEX - SRA SERIES SPECIFICATION
The output shaft flange faces are wide and the hollow fixed shaft makes it easy to install stable motion, oil, and pneumatic wiring.
Standardize wheelbase 70, 90, 110, 150, 190, 230, 330, 450 different sizes
Compact structure to compact the facility
Attachment position, no restriction on area of mouth
Fixed product with a discharge degree of  ±20 seconds (sec) (cam 1Dwell)
Lower Turn Axis for Robots
Inverter control with basic type with hollow axial helmets

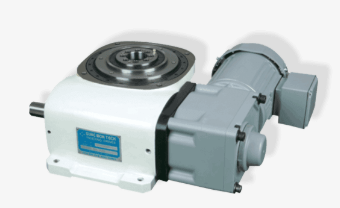

SRT Series
ROLLER GEAR INDEX - SRT SERIES SPECIFICATION
The output shaft flange faces are wide and the hollow fixed shaft makes it easy to install stable motion, oil, and pneumatic wiring.
Standardize wheelbase 110, 140, 180 and 250 different sizes
Attachment position can only be horizontal (GL on the floor) and there is a limit on the surface of the floor
Can be an integral part of a hollow shaft type
