V/VF series (Vertical)Modify Date : 2020-07-29 10:56:39

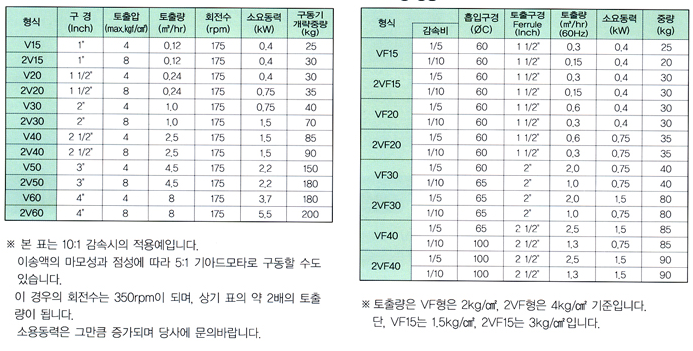

(LEFT) V-type Performance Table (RIGHT) VF-type Performance Table
LEFT
-This table is an example of 10:1 deceleration.
-It can be driven by a 5:1 guide motor depending on the abrasiveness and viscosity of the transport liquid.
-In this case, the number of revolutions is 350 rpm, and the discharge amount is approximately twice that of the table above.
-The use power is increased by that amount, please contact us.
RIGHT
-The discharge amount is based on 2kg/㎠ for VF type and 4kg/㎠ for 2VF type.
-However, VF15 is 1.5kg/㎠ and 2VF15 is 3kg/㎠.
