nut tapping machineModify Date : 2020-07-28 15:41:35

Facility name:High speed nut tapping machine

Production products:angle, hexagon, weld, flange, circular, special nut

Production Range:m3~m20

Main spindle count:1,2,4,6 axis

Supply method:hopper, rotary hopper, step hopper, feeder

Mechanism: bend tap

high speed tapping operation by precision cam

Function: 5 types of product registration function

Data can be stored

tapping torque sensing system

options:supply conveyor

Discharge conveyor, centrifuge, vibration washer, inspector, integrated management system, monitoring system

nut tapping machine

Production products:angle, hexagon, weld, flange, circular, special nut

Production Range:m3~m72

Main spindle count:1,2,4,6 axis

Supply method:hopper, rotary hopper, step hopper, feeder

Mechanism: bend tap

tapping operation by pneumatic

Function: 5 types of product registration function

Data can be stored

tapping torque sensing system

options:supply conveyor

Discharge conveyor, centrifuge, vibration washer, inspector, integrated management system, monitoring system

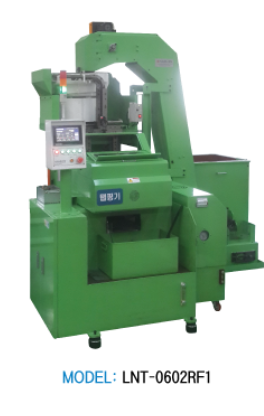

Longnut tapping machine

Production Products: Longnut.special nut

Production range: m3~m32

main spindle number:2 axis

Supply method:hopper, rotary hopper, step hopper, peter

mechanisms:straight tap

Low speed and high speed spindle rpm conversion method

Function:Five types of product registration functions,data storage function

tapping-torque sensing system

Options specifications:supply conveyor

Discharge conveyor, centrifuge, vibration washer, inspector, integrated management system, monitoring system

Facility name: Uplight tapping machine


Production products: Blocked nuts,long nuts.special nuts.

Production range: m3~m32

main spindle number:1 axis

Supply method:hopper, rotary hopper, step hopper, peter

Mechanisms:Straight tap, pitchscrew,peachler

tapping operation by static/reverse rotation

Function:Five types of product registration functions,data storage function

tapping-torque sensing system

Numerical control method


Options specifications:supply conveyor

Discharge conveyor, centrifuge, vibration washer, inspector, integrated management system, monitoring system, integrated management system

Facility name: index tapping machine/indexcnc tapping machine,cnc tapping machine


Production products: Blocked nuts,long nuts.special nuts.

Production range: m3~m32

Main spindle number:1 axis/1 puck,2 puck

Supply method:hopper, rotary hopper, step hopper, peter

Mechanisms:Straight tap, pitchscrew,peachler

tapping operation by static/reverse rotation

Add cleaning and inspection process


Function:Five types of product registration functions,data storage function

tapping-torque sensing system

Numerical control method


Options specifications:supply conveyor

Discharge conveyor, centrifuge, vibration washer, inspector, integrated management system, monitoring system, integrated management system

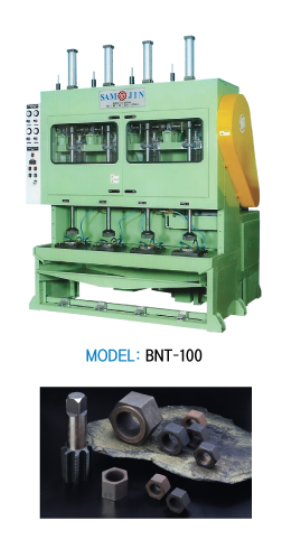

Facility name: Semi-automatic tapping machine

Production Products: Large nuts.

Production range: m52~m100

main spindle number:4 axis
mechanisms: Semi-automatic system, tapping by the load of tabs


Function:Five types of product registration functions,data storage function

tapping-torque sensing system


Options Specifications:Tap Automatic Supply System
