UVTransModify Date : 2020-07-28 13:58:04

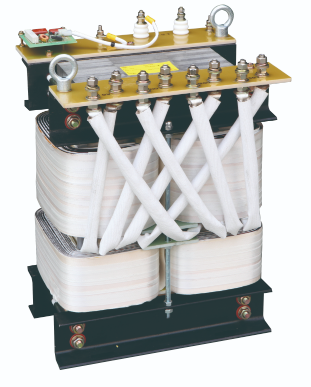

UV-Transfer Features

High purity of copper wire, standardization of silicon steel plates, and the best use of insulated paper minimizes noise and vibration, and sufficient load-free voltage production maximizes lamp efficiency.

UV Trans (Conductor Type)

 Model

 input voltage

output voltage

Frequency

(Hz)

 Transverse

(mm)

 length

(mm)

Height

(mm)

at a leisurely pace


(mm)

by a single file

(mm)

SJ-2KW

220V/380V

 300V/7A

60

240

165

 220

180

106

SJ-3.5KW

 220V/380V

 500V/7A

60

270

170

 270

177

118

SJ-5.3KW

220V/380V

 750V/7A

60

380

225

 270

 223

150

SJ-6.6KW

220V/380V

 950V/7A

        60

380

240

 270

 223

165

SJ-10.5KW

 220V/380V

1500V/7A

60

380

240

 400

 267

153

SJ-13.3KW

220V/380V

1900V/7A

60

380

260

 400

 267

173


*You can order up to 25KW.

*Based on a substrate.The size of the capacitor may vary when using the capacitor and at frequency (50 Hz).

*In addition to the existing products, order production is available. (A small order is available.)

* Terminal direction can be set when ordering, and there may be a change in size.


UV Trans (Choke Type and Power Control Type)



 Model

input voltage

output voltage





Frequency

(Hz)





Transverse

(mm)



 length

(mm

Height

(mm)

)



at a leisurely pace


(mm)







by a single file

(mm)

)



SJT-4KW

220V/380V

 400V/10A

50/60

290

 200

300

250

133

SJT-6.6KW

 220V/380V

 950V/7A

 50/60

380

 250

400

267

172

SJT-8KW (노광용)

220V/380V

 550V/15A

 50/60

380

 290

370

285

190

SJT-10KW (노광용)

220V/380V

 540V/20A

50/60

470

 380

410

380

203

SJT-1900

 220V/380V

1900V/7A

60

350

 350

500

200

186

SJT-20KW

220V/380V

1900V/10.3A

 60

430

 380

550

298

178

 SJT-25KW

 220V/380V

 2100V/11.8A

60

 430

 395

 550

298

193

 SJT-36KW

 380V

 2800V/13A

60

430

 400

700

298

222


*The order can be made from 400W to 45KW.

*Choke type and power control type are order production from low to large (small orders are available)

*When ordering, terminal orientation can be set.

*Size changes may occur at frequency 50 Hz.

*Power control is built at variable rates.



import-trans repair
