UV Variable Frequency Power Supplies

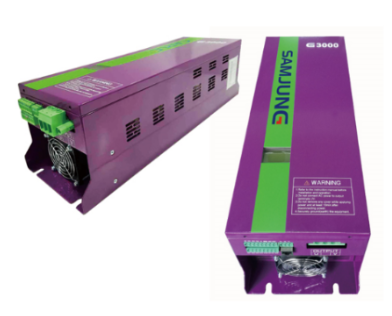

Model G3000
Input 380V
Output 200 to 500V
Capacity 3-15KW
Frequency 50/60Hz

Specifications and Features

The G3000 series smart UV inverter power is a high-tech product developed specifically for low-tube voltage UV hardening facilities. It has various functions, easy control, and excellent performance, so it is matched with various machines for integrated system application.
Widely used in printing, PCB production, medical and other industries.

major characteristic

1. Capacity Range: 3.0 KW - 8.0 KW /10.0 KW to 15.0 KW

2. Output voltage: 200 V to 500 V

3. Receiving an external facility failure switch signal, UV inverter power immediately sounds an alarm in the event of an external facility failure.

It stops.

4. Integrated inverter fan control makes exhaust emissions more efficient and hardenable

5. With a multi-stage supply, four different capacities are available through a combination of ON/OFF state of two external switches.

Supply and realize capacity-output conversion function

6. External terminal operation and standby functions to reduce energy consumption and prolong life

7. A variety of communication interfaces, including the standard RS485 communication interface with Modbus RTU.

Extensions for various communication interfaces, Ethernet communications.

UV Variable Frequency Power Supplies

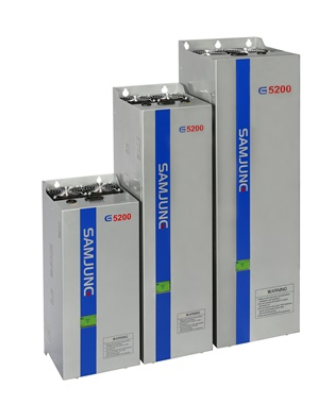

Model G5200
Input 380V 3 Phase
Output
Capacity 3KW to 35KW
Frequency 50/60Hz common

Specifications and Features

The G5200 series smart inverter power meets the broad requirements of various machinery and equipment, system integration and applications, and is widely used in printing, PCB production, surface coating, woodworking coating, medical and other industries.

1. Capacity Range: 3.0 KW - 30 KW (main issue: 30 - 35 KW)

2. Receiving the external equipment failure switch signal, the UV inverter power immediately sounds the alarm and stops in case of external equipment failure.

3. Integrated inverter fan control makes exhaust emissions more efficient and hardenable

4. With multi-stage capacity supply, four different capacities are supplied through a combination of ON/OFF status of two external switches and the ability to convert capacity outputs is realized.

5. External terminal operation and standby functions to reduce energy consumption and prolong life

6. Extensions for various communication interfaces, CANopen, and Ethernet communications, including standard RS485 communication interfaces supporting Modbus RTU.
