Color fastness testerModify Date : 2018-11-13 10:59:05
▣ Color fastness tester
※ Product Information
- It is equipped with PID type temperature controller and a digital timer that can be arbitrarily set.
- It is designed to operate smoothly at the start and end of work by installing an inverter so as not to overload the drive motor.
- Spring is mounted on the holder and it can be easily attached and detached by pushing Pot.
- 550ml, 1200ml Pot can be used in parallel (DL-2002M).
- Special packing is used to prevent water leakage at high temperature.
- Shock absorber is installed on the door for user's convenience.
- Built-in buzzer to notify the end of work.
- User can easily operate and easy to clean.
- Test standard: KSK 0430, ISO 105-C06, AATCC 61
·A precision temperature sensor can be installed on a heating plate for precise temperature control.
·Temperature of two heating plates can be adjusted respectively.
·The temperature and time settings can be easily manipulated by the user.
·There is a built-in buzzer to announce the end of the work.
·Test specifications: KSK 0651, ISO 105-P01, ATCC 117
Model
|

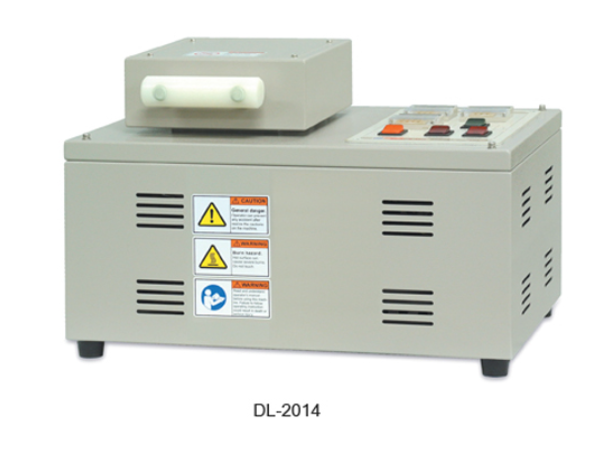

DL-2014
|
| Number of plate | 1 plate |
| Heating plate size | 100 × 100mm |
| Temp. range | 50~200℃ |
| Temp. controller | Digital PID type |
| Test timer | Digital 99min. 59sec. |
| Alarming device | End buzzer |
| Heater capacity | 250W × 2 |
| Power source | 220VAC 50/60Hz single phase |
| Dimension (Approx.) | 300(W) × 400(D) × 300(H)mm |
·Motor operation by digital counter control is applied.
·An accurate experiment is possible with a uniform round trip.
·It is designed to secure the test piece by attaching sandpaper and clamp.
·Use a clamp to secure the white cotton cloth on the acrylic rod.
·Test specifications: KSK 0650, ISO 105-X12, AATCC 8.
Model
|

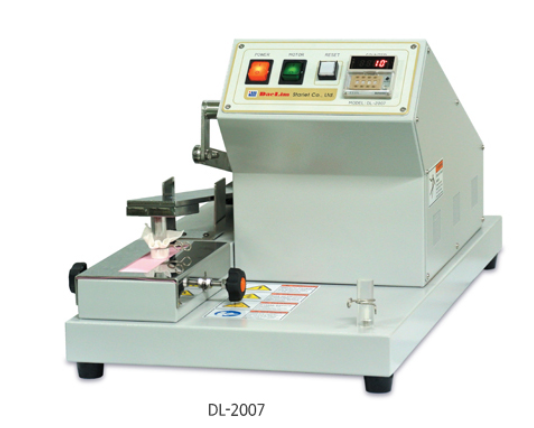

DL-2007
|
| Specimen size | 200 × 100mm |
| Sliding speed | 60r/min. ±5% |
| Distance for crocking | 104mm ±3mm |
| Finger load/diameter | 900g/16mm |
| Counter | 4 digital memory type |
| Motor | 6W |
| Power source | 220VAC 50/60Hz single phase |
| Dimension (Approx.) | 520(W) × 620(D) × 310(H)mm |
·It consists of a stainless steel body and an acrylic plate.
·Suitable for discoloration of all fabrics.
·Fixing devices are attached to the spring load plate to maintain weight and pressure during drying.
·Test specifications: KSK 0715, ISO 105-E01/02/03/04, AATCC 15
Model
|

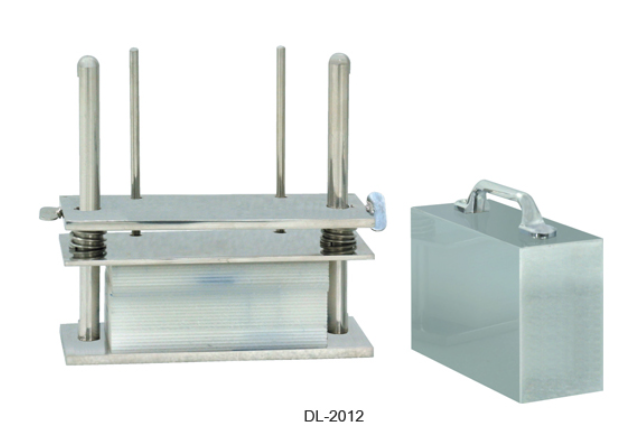

DL-2012
|
| Specimen size | 115 × 63mm |
| Load |
5kg (Standard) 4.5kg (Option) |
| Plastic plate | 21ea |
| Material | SUS#304 polishing |
| Weight (Approx.) | 6kg |
| Dimension (Approx.) | 165(W) × 76(D) × 150(H)mm |
·It consists of a stainless steel body and a plastic funnel.
·Easy to detach and attach test pieces.
· Precise nozzles were used so that water could be dropped evenly onto the test specimen.
·Test specifications: KSK 0590, ISO4920, AATCC 22
Model
|

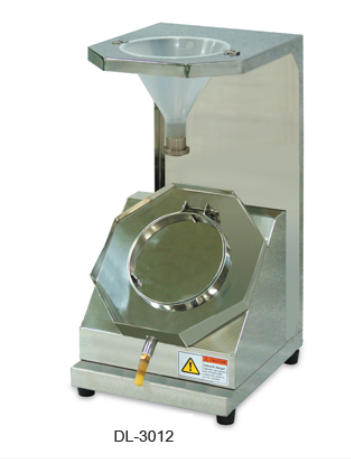

DL-3012
|
| Specimen size | 200 × 200mm |
| Test angle | 45° |
| Spray nozzle | 0.9mm dia. 19 holes |
| Specimen hold | 150mm |
| Funnel Diameter | 150mm |
| Weight (Approx.) | 5kg |
| Dimension (Approx.) | 250(W) × 350(D) × 500(H)mm |
·It is designed to automatically stop the digital counter exactly at the set number of times.
·Bend mechanism is designed so that users can easily take out test pieces after the Wrap release, making it easy to use.
·You can adjust the speed of rotation by installing a speed controller.
·Soft start method is applied to rotate at low speed at the beginning and end of the work.
Model
|

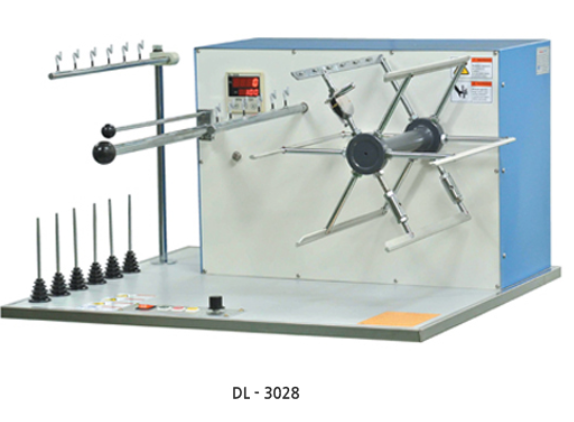

DL-3028
|
| Reel girth | 1000mm ±0.5mm |
| Reeling circle | 1~9999. LED |
| Reel speed | 30~250r/min. (Step less variable speed) |
| Pre-tension | 0~100cN |
| Guide bar travel | 35mm |
| Bobbin number | 1~6 |
| Power source | 200VAC 50/60Hz single phase |
| Dimension (Approx.) | 780(W) × 700(D) × 500(H)mm |
·We can easily determine the unusual phenomenon between light sources.
·It is designed and manufactured in accordance with ASTM D1729 standards and international standards.
·Used standard light sources from the International Commission on Illumination [CIE].
·6 basic types of light sources can be used to determine various colors.
Model |

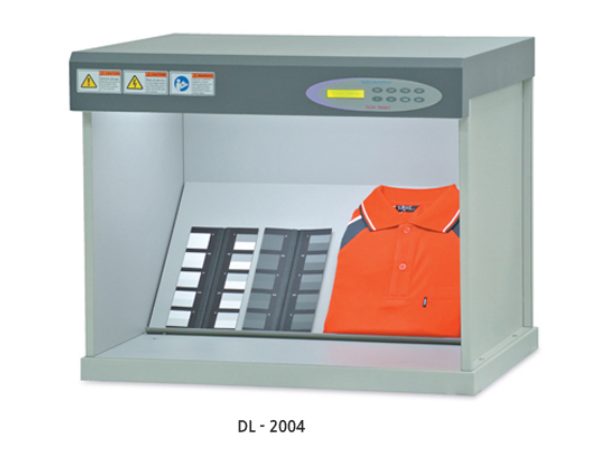

DL-2004 |
| Light source | D65[6500K], D75[7500K] - (Option) CWF[4150K] - Cool White Fluorescent A[2856K] - Incandesent TL84[4100K] - Store Light U30[3000K] - Ultralume UV[BLB] - Ultraviolet |
| Power source | 220VAC 50/60Hz single phase |
| Dimension (Approx.) | 690(W) × 590(D) × 575(H)mm |
