cooperative robotModify Date : 2020-07-24 13:19:43

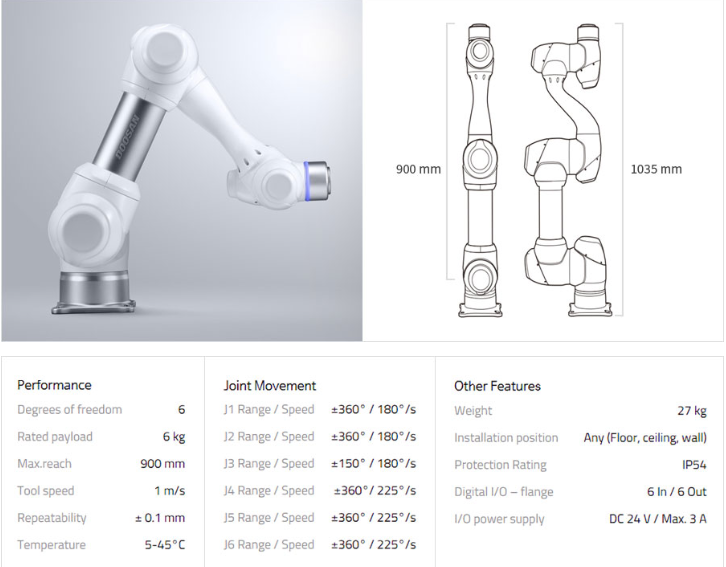

M0609
Optimized for rapid iteration of light objects, Compact Robo

t-Relastic Weight: 6 kg / Work Radius: 900 mm- Stain-Resistant MODEL is optional.

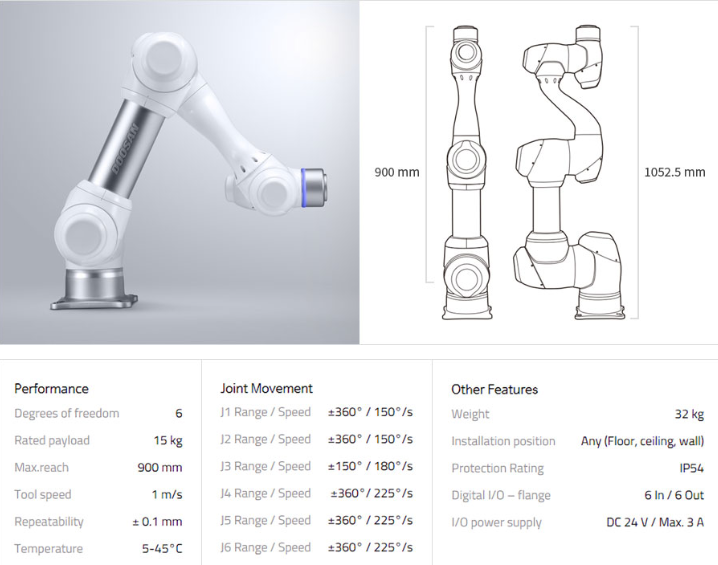

M1509
Up to 15kg (the industry's largest) high-end weight robot for heavy duty work - 15kg / 900mm radius of work - Stain-Resistant MODEL is optional.

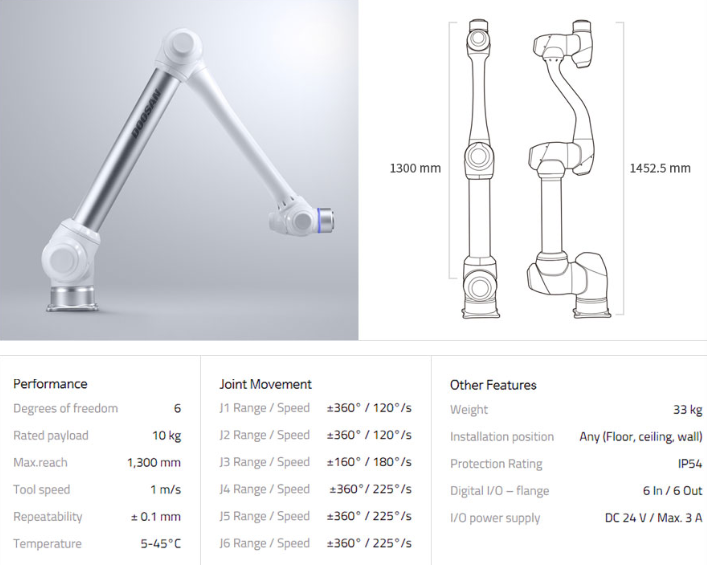

M1013
Standardized robots that can be applied to various work processes
- Random weight: 10kg / Work radius 1300mm - Stain-Resistant MODEL is optional.

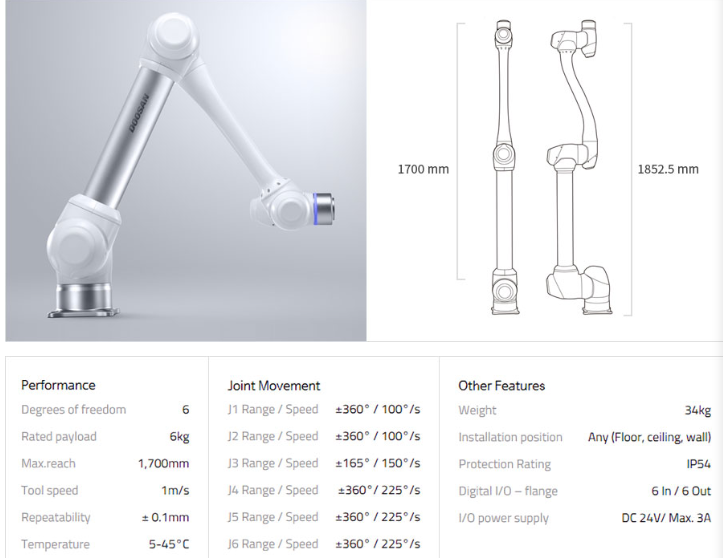

M0617
Long Range Robot delivers the best efficiency during two or more work processes or long-distance work.
- Random weight: 6kg / Work radius 1700mm - Stain-Resistant MODEL is optional.

Controller /
Pendant

State of the ArtController
- A top-level control platform that supports complete and reliable robot control.
- Maximize torque sensor performance with innovative motion control algorithms and robot language.
- All the latest communication technologies (Etherent, Fieldbus, Serial, Wifi, etc.) are supported, enabling easy interface with various automated facilities and peripherals.
- App-based kill-based programming makes it easy to implement complex robot motion
- A solid platform that ensures stable performance even in tough industrial sites based on real-time control and high-speed communication technology.
- Innovative control algorithms that can be easily used for various applications in the field
Human-CenteredTeach Pendant
- Power-static touch provides superior usage and excellent resolution
- Minimize user fatigue with a light, comfortable grip design
- Intuitive usability implementation through graphical communication
- Intuitive Card View enables users to view information about working environment related to robots at a glance.
- Intuitive and easy task programming with Drag & Drop method

OPTION

Value-Adding l Enhancer 01

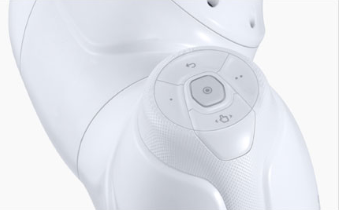

Direct Control Unit : Cockpit
The best option for maximum user convenience is to select various teaching modes and save coordinates with just five simple button actions.

Value-Adding l Enhancer 02

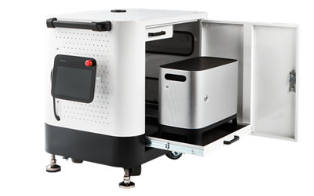

Mobile Base
The robot, controller, and Teach Pendant are mounted for free movement and relocation in the field.
Easy to install and store work tools such as pallets and laser scanner.

Value-Adding l Enhancer 03

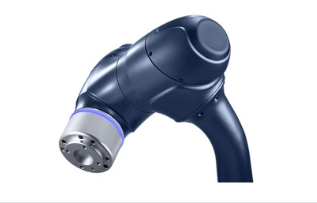

Stain-Resistant Model
Anti-Stain function is enhanced to provide easy appearance management even in environments that are easily exposed to pollution.

Value-Adding l Enhancer 04

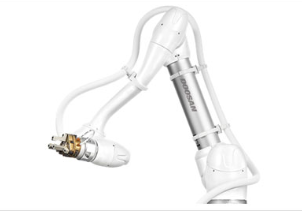

Dress Pack
Various harnesses connected to tools at the end of the robot enable efficient operation.
Integral arrangement of tube brackets and holders makes it easy to remove and reposition the robot.

Value-Adding l Enhancer 05

Water Jacket
Prevent contamination of the robot by liquid substances, such as cutting aid.
The PU coating prevents double penetration of water, allowing you to use the doosan robot in the best condition for a long time.
