Industrial Piping SystemsModify Date : 2020-07-24 11:54:07
▣ ESLON SCH80 PVC & CPVC Piping Systems
ESLON SCH80 Piping Systems are produced in accordance with ASTM Standards.
▶ Advantages of SCH80 PVC & CPVC
1.Excellent corrosion resistance and chemical resistance
2.Excellent impact resistance and pressure resistance
3.Smooth internal surface; less friction-caused loss and fast flow speed
4.Easy piping work and construction cost saving
5.NSF approved pipe with excellent sensitivity for portable water
6.All SEKISUI products have NSFPW mark displayed on their surface.
▶ Features of ESLON SCH80

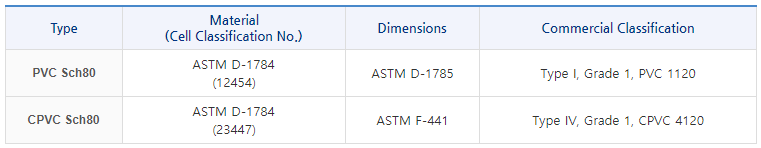

ESLON SCH80 Pipe and Fitting have NSF 14 and NSF 61 approvals.
- NSF 14
Requirements of Plastic Piping System Components and Related Materials
- NSF 61
Requirements of Drinking Water System Components - Health Effects
All products manufactured in conformance to NSF 14 and NSF 61 have NSFPW mark on its surface.
Pipe & Fitting Size : 1/2” – 24”
SCH80 PVC Max 온도 : 60℃
SCH80 CPVC Max 온도 : 93℃
▶ESLON PVC PIPE • FITTINGS UV STRONG
Weather-proof resin that is resistant to ultraviolet (UV) rays has achieved excellent anti-UV performance.
- Weather-resistance promotion evaluation (impact resistance)
According to promotion test for outdoor exposure, decrease in impact performance was approx. 10% in 10 years.
- Weather-resistance promotion evaluation (exterior design)
It controls discoloration for exterior design and decrease in physical properties.
- Delamination Test
It has been proven that dissecting is very difficult due to high weather-resistance. (Carried out peeling / attaching tape on the sample 5 times)
