Daechang Co., Ltd

machinery & heavy equipment031-496-3000

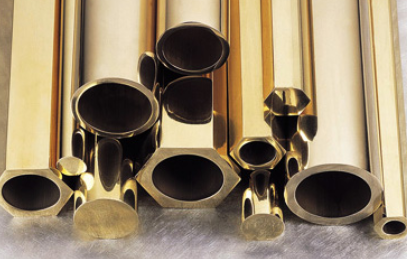

unleaded brassModify Date : 2020-07-24 11:53:42

Description of Product

Pro-environmental, lead free material with no leaching of lead, not damaging original machinability

Use of Product

Piping for food-related goods, faucet and beverages

Size Productible by Product Type

TypeSize Productible (in mm)
Round RodФ2 ~ Ф80
Hexagonal RodФ9 ~ Ф50.8
Square RodФ7

Packing Available by Product Dimension

Basic Packing

Outer diameter under Ф12 (OD under Ф8 in case of exportation):
20 to 25 kg; simple packing with nylon cord + PP band
Outer diameter Ф12 or more (OD Ф8 or more in case of exportation): PP band
Packing weight: 1,000 to 1,500 kg (500 and 1,000 kg, respectively in case of exportation)

Strawboard Packing

Basic packing + plastic packing + paperboard packing

Wood Box Packing

Basic packing + plastic packing + wood box

Chemical Composition and Mechanical Properties

Chemical composition

Alloy numberChemical composition, wt.%
KS/JISUNISCuPbFeSnZnOthers
FD(DR)seriesC4860059.0-62.01.0-2.50.20.8-1.5Rem.0.02-0.25As
MD seriesC3533059.5-64.01.5-3.5--Rem.0.02-0.25As
MB series-57.0-63.00.20.50.5Rem.0.5-3.5Bi
CZ seriesC8984483.0-86.00.20.33.0-5.07.0-10.01.0Ni,2.0-4.0Bi
0.25Sb
0.75Al,0.5-3.5Bi
0.7Al,0.02-0.25As
CB series-58.5-63.00.20.50.7Rem.
CD series-59.0-64.00.8-2.50.21.5Rem.

Mechanical Properties

Alloy numberStandard numberTemper designationDiameter and length between opposite sidesTensile strength(Mpa)Elongation(%)Hardness(HRB)
KS/JISUNIS
--------
