Dyeing TesterModify Date : 2018-11-13 10:59:05

▣ Dyeing Tester

※ Product Information

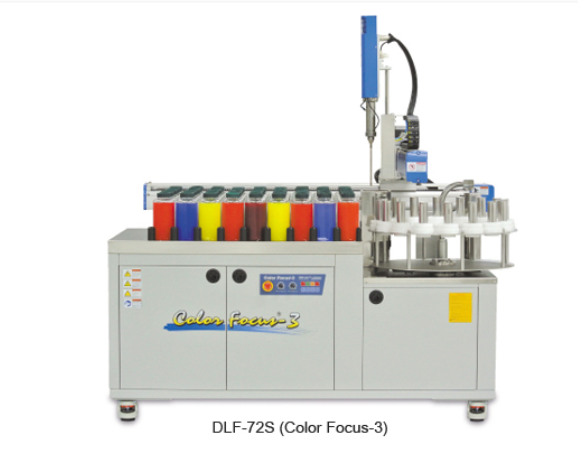

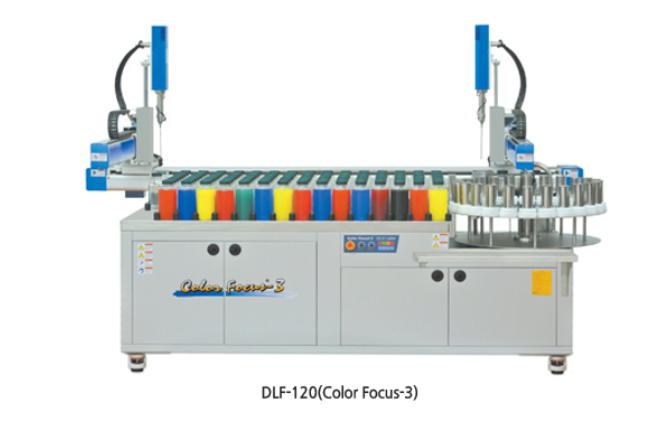

- The number of mother liquor bottles consists of 98 (1000cc), 120 (1000cc) and 144 (800cc).

- Two pipetting devices, the maximum Syringe capacity is increased from 40cc to 80cc, so the solution speed is high.

 ㆍ 3 Combination: 12 prescription criteria takes about 4 minutes. (Medium Color Standard)

 ㆍ 3 Combination: 24 prescription criteria takes about 8 minutes. (Medium Color Standard)

- There is no worry of sedimentation of disperse dyes by each magnetic stirrer operation method.

- Easy to operate (Korean Windows XP, Windows 7, Windows 8 method)

- Easy to maintain (No nozzle cleaning, simple structure, less trouble.)

- Accurate dye measurement (preparation of mother liquor) and accurate pipetting. (≤ ± 0.02cc)

- When using disperse dyes with tubeless method, there is no worry of color difference due to scale of nozzle.

- Maximize the reproducibility with the field by solving the color difference of Lt / Color which is a problem of weight type

- Cost reduction and quick delivery response. (Color difference solved by wind, vibration and scale

- System hardware precision. (X, Y, Z robot and tubeless method)

- Designed to be compatible with IR pots 150ml, 300ml, 500ml, beakers, triangle flasks and conical beakers without the need for a funnel.

- Cation dye can be used.

- Balance Warning If the balance is not enough, stop the operation.

- There is no problem of syringe contamination by adopting the upgraded 5 stage cleaning system.

--------------------

·Composed of 98 (1000cc), 120 (1000cc), and 144 (800cc) bottles.
·Fitted with two pipetting devices, the maximum capacity of Syringe is increased from 40cc to 80cc, which speeds up the composition.
- 3 Combination : 12 prescriptions take about 4 minutes (medium standard)
- 3 Combination : 24 prescriptions take about 8 minutes (medium standard)
·Each Magnetic Stirrer is operated in its own way, so there is no worry about the depressions of distributed dyes.
·Easy to manipulate. (Hangul Windows XP, Windows 7, Windows 8)
·Easy to maintain (Nozzle cleaning is not required, the structure is simple, so there are fewer failures.)
·Accurate dye accounting (column preparation) and accurate pipetting. ( 이내 이내0.02cc or less)
·If distributed dye is used in a tubeless way, there is no concern about color difference caused by the scale of Nozzle.
·Maximizing reproducibility from the field by solving color differences of Lt/Color, which is a problem of weighting,
Cost reduction and Quick delivery response (resolved color difference by wind, vibration, scale).
·System hardware precision. (X, Y, Z robots and tubeless methods)
·Without a funnel, IR pot 150ml, 300ml, 500ml, beaker, triangular flask,
It is designed to be compatible with the use of the Cornical Biker.
·Cation dye can be used.
·The balance warning program stops the operation if the balance is insufficient.
·Adoption of the upgraded five-step cleaning system ensures no problem with the syringe contamination.

·There is no cable in the sensor pot, so there are few sensor failures, and it is easy to remove and attach the sensor pot.
(patent application, design registration)

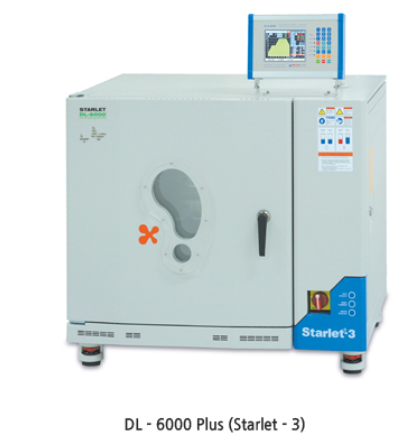

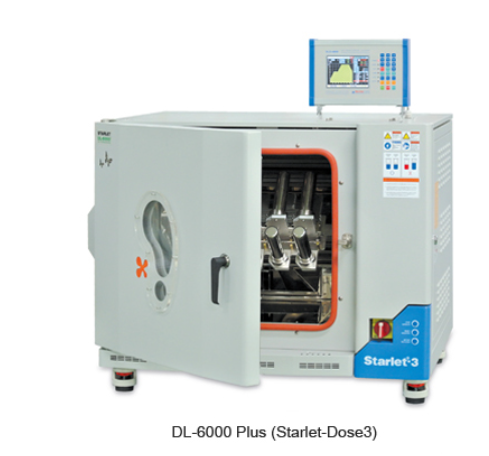

·Pot rotates 360° to remove the causes of salinity and imbalance due to high sample flow
- High performance test dyeing machine with CPU Micro processor.
·Diversification of varieties. (1 chamber - 16 or 24 pots)
- 150 ml, 300 ml, 500 ml, (1000 ml, 2000 ml - Option) pot are compatible.
- Suitable for P/C, P/R, P/W, and P/N. (Pot is rolled to prevent contamination by special electrolyte treatment)
- Up to 24 150ml. - Up to 12 300ml. - Up to 12 500ml.
- Up to 32 150ml. - Up to 28 300ml. - Up to 24 500ml. (Big3-Option)
·Suitable for various fiber dyeing. (Knit & Woven, Yarn)
- Spandex, Polar Fleece, lecturer, archival, bridgework, ultra-polar detail.
·Responseable dyeing - It can be designed in the same way as in the field.
Resolving color differences between sites and laboratories due to the anti-temperature method.
·Environmentally pleasant working environment with little noise and no gas.
·Using a controller on a large graphic screen makes it easy to check the progress of dyeing.
·Choose English, Chinese, German, and Korean programs.

·Automatic injection of preparation (soda and alkali) is possible during dyeing process, so the site and
It can improve interlaboratory reproducibility. (Cotton Dyeing)
·You can dye your hair daily and use regular pot at the same time. (P/C, P/R Dye)
·Pot rotates 360° to remove the causes of salinity and imbalance due to high sample flow
- High performance test dyeing machine with CPU Micro processor.
·Diversification of varieties. (1 chamber - 15 pots)
- 150ml, 300ml, and 500ml pot are compatible.
- Suitable for P/C, P/R, P/W, and P/N. (Pot is rolled to prevent contamination by special electrolyte treatment)
- 150ml up to 15. - 300ml up to 15. - 500ml up to 7.
·Suitable for various fiber dyeing. (Knit & Woven, Yarn)
- Spandex, Polar Fleece, lecturer, archival, bridgework, ultra-polar detail.
·Reactive dyeing possible - can be designed in the same way as in the field
Resolving color differences between the site and the laboratory due to conventional antioxidant methods.
·Environmentally pleasant working environment with little noise and no gas.
·Using a controller on a large graphic screen makes it easy to check the progress of dyeing.
·Choose English, Chinese, German, and Korean programs.
