magnetic chuckModify Date : 2020-07-24 10:22:01

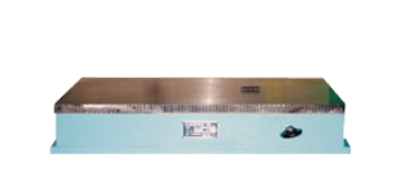

micropitch-type magnetic electron chuck
Characteristics
- Mainly applied to grinding of small objects or thin parts.
- Small to large objects can be used for public use due to the narrow gap between poles.
- It's easy to install as it just needs to be fixed on the table.
purpose
Mold manufacturing, grinding, price, etc.
(applies mainly to grinding of small objects or thin parts. )
specification
Model | Normal Dimension | Top Plate | Pole Picth | Bottom Plate | Height | Hole | Voltage | Current | Weight (kg) | Electro Chuck Master | |||||
B₁ | L₁ | t | Le | P | B₂ | L₂ | h | H | G | ||||||
HMC-1530M | 150×300 | 150 | 300 | 20 | 245 | 4 | 145 | 335 | 18 | 113 | Clamp type | DC 90V | 0.4A | 31kg | KCM-10A |
HMC-1535M | 150×350 | 350 | 293 | 5 | 385 | 20 | 110 | 0.6A | 37kg | ||||||
HMC-1545M | 150×450 | 450 | 25 | 396 | 485 | 0.79A | 48kg | ||||||||
HMC-2040M | 200×400 | 200 | 400 | 346 | 195 | 435 | 120 | 0.95A | 65kg | ||||||
HMC-2050M | 200×500 | 500 | 445 | 195 | 535 | 1.17A | 82kg | ||||||||
HMC-2060M | 200×600 | 600 | 545 | 195 | 635 | 1.4A | 98kg | ||||||||
HMC-2560M | 250×600 | 250 | 245 | 1.75A | 128kg | ||||||||||
HMC-3060M | 300×600 | 300 | 541 | 295 | 2.1A | 147kg |

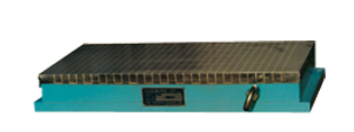

standard magnetic electron scale
Characteristics
It is specially designed so that the precision of temperature rise is not abnormal when used.
purpose
mold manufacturing, grinding price, etc.
Appropriate for grinding general materials, etc. by attaching to grinding machine.
specification
Model | Nominal | Top Plate | Pole | Bottom Plate | Height | Voltage | Current | Weight | |||||
Dimension | Picth | (kg) | |||||||||||
| B₁ | L₂ | T | Le | P | B₂ | L₂ | h | H |
| |||
HMC-1530 | 150×300 | 150 | 300 | 25 | 240 | 16 | 145 | 335 | 25 | 95 | DC 90V | 0.19A | 21kg |
HMC-2050 | 200×500 | 200 | 500 |
| 434 | 18 | 195 | 511 | 20 | 0.43A | 46kg | ||
HMC-3060 | 300×600 | 300 | 600 | 554 | 22 | 295 | 640 | 0.86A | 83kg | ||||
HMC-4080 | 400×800 | 400 | 800 | 744 | 395 | 840 | 1.72A | 174kg | |||||
HMC-40100 | 400×1000 | 400 | 1000 | 934 | 395 | 1035 | 2.11A | 218kg | |||||
HMC-50100 | 500×1000 | 500 | 1000 | 944 | 495 | 1035 | 2.58A | 273kg | |||||
HMC-6060 | 600×600 | 600 | 600 | 554 | 586 | 605 | 1.59A | 196kg | |||||
HMC-7075 | 700×750 | 700 | 750 | 685 | 690 | 750 | 2.93A | 286kg | |||||
HMC-80100 | 800×1000 | 800 | 1000 | 958 | 790 | 1000 | 3.18A | 435kg | |||||
HMC-3665 | 360x650 | 360 | 650 | 25 | 604 | 18 | 355 | 650 | 20 |
| DC 200V | 2.59A | 110kg |
HMC-35950 | 350X950 | 350 | 950 | 25 | 904 | 22 | 345 | 950 | 20 | 120 | DC 45V | 35.5A | 195kg |
HMC-20150 | 200X1500 | 200 | 1500 | 18 | 1454 | 18 | 195 | 1500 | 20 | 95 | DC 45V | 11.2A | 175kg |

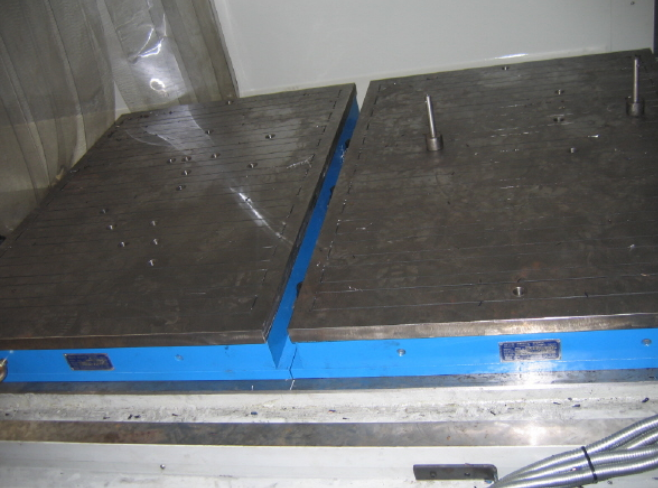

super-strong electronic chuck
Characteristics
- Super-strong electronic scale by special design for medium cutting.
- Production can be made by adjusting the distance between the plays according to the workpiece.
purpose
Molding manufacturing, milling, forestry, etc.
Suitable for heavy-cutting machining for milling or frena Miller.
specification
Model | Normal Dimension | Top Plate | Pole Picth | No of Ples | Bottom Plate | Height | Hole | Voltage | Current | Weight (kg) | ||||||
B₁ | L₂ | T | L₃ | Le | P₁ | P₂ | B₂ | L₂ | h | H | ||||||
HMC-2050H | 200×500 | 200 | 500 | 25 | 422 | 160 | 74 | 42 | 4 | 195 | 535 | 18 | 100 | DC 90V | 0.90A | 75 |
HMC-3060H | 300×600 | 300 | 600 | 535 | 730 | 70 | 31 | 5 | 295 | 635 | 1.59A | 130 | ||||
HMC-4080H | 400×800 | 400 | 800 | 725 | 320 | 80 | 41 | 7 | 395 | 835 | 2.52A | 230 | ||||
HMC-40100H | 400×1000 | 400 | 1000 | 917 | 340 | 65 | 55 | 8 | 390 | 1000 | 2.96A | 288 | ||||
HMC-50100H | 500×1000 | 500 | 1000 | 920 | 420 | 80 | 28 | 8 | 495 | 1035 | 25 | 120 | 3.96A | 360 | ||
HMC-50150H | 500×1500 | 500 | 1500 | 1421 | 430 | 67 | 55 | 8 | 490 | 1500 | 5.4A | 540 | ||||
HMC-60100H | 600×1000 | 600 | 1000 | 917 | 530 | 65 | 55 | 12 | 590 | 1000 | 5.3A | 432 | ||||
HMC-60150H | 600×1500 | 600 | 1500 | 1421 | 530 | 67 | 55 | 12 | 590 | 1500 | 6.5A | 650 |
Chuck Mastar
Characteristics
- Used for all magnetic electrochucks.
- Application according to the construction method as a de-placing device and magneto-regulating device.
- No residues occur at all, and the time to escape is about 5 seconds.
purpose
Molding manufacturing, milling, forestry, etc.
Rectifier used by connecting wires to use magnetic electrochecks
specification
Model | Input | Output | Dimension | Mounting | Mounting Hole | Mass | |||||
Voltage | Fuse | Voltage | Current | Width | Height | Depth | Width | Height | |||
HCM-5A | Slinglephase AC 110/220V | 5A | DC90V | 5A | 172 | 254 | 111 | 80 | 150 | 4-ø4.5 | 2.3kg |
HCM-10A | Slinglephase AC 110/220V | 10A | 10A | 2.5kg |
