NUT/BOLT MANAGERModify Date : 2020-07-21 11:45:27

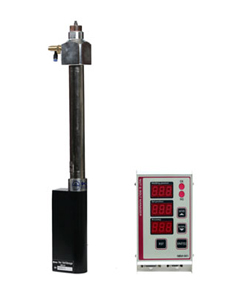

■ NUT/BOLT MANAGER

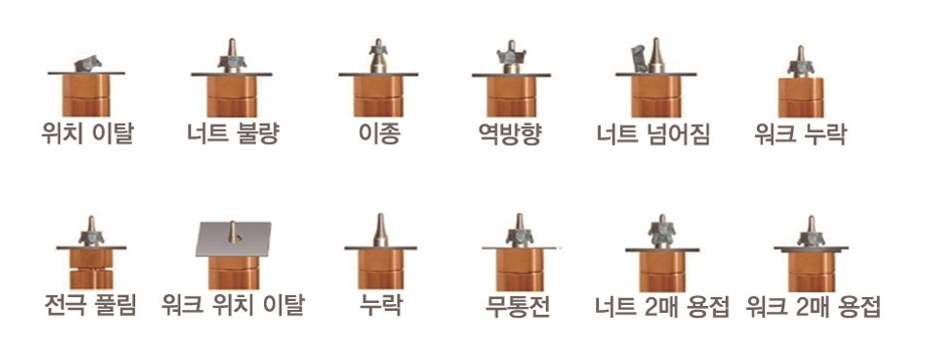

It is a device which detects the defects in nut and bolt such as nut projection defect, bolt length defect, installed reverse nut, no nut, eccentricity due to fallen nut or welding defect caused by application of non-electricity and it stops welding operation to prevent welding defect, and after welding it discriminates whether the welding is normal and indicates the result to the operator.


• Detecting defective nut/bolt and in case of NG it stops welding

• Indicating and adjusting the tolerance range of OK in digital

• Allowing welding by one cycle when several nuts are welded in one different work (Each 15 Series set and manager. It can judge NG,

OK by welding spot)

• Detecting welding defects after welding

• Applicable robot

• Indicating each error code in case of NG

• Stop function when device is in failure (Existing welding is available without using Manager)
