Auto Tip DresserModify Date : 2020-07-21 11:38:33

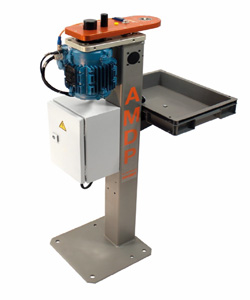

■ Auto Tip Dresser



• High-speed auto tip dresser (cutter drive up to 780 RPM)

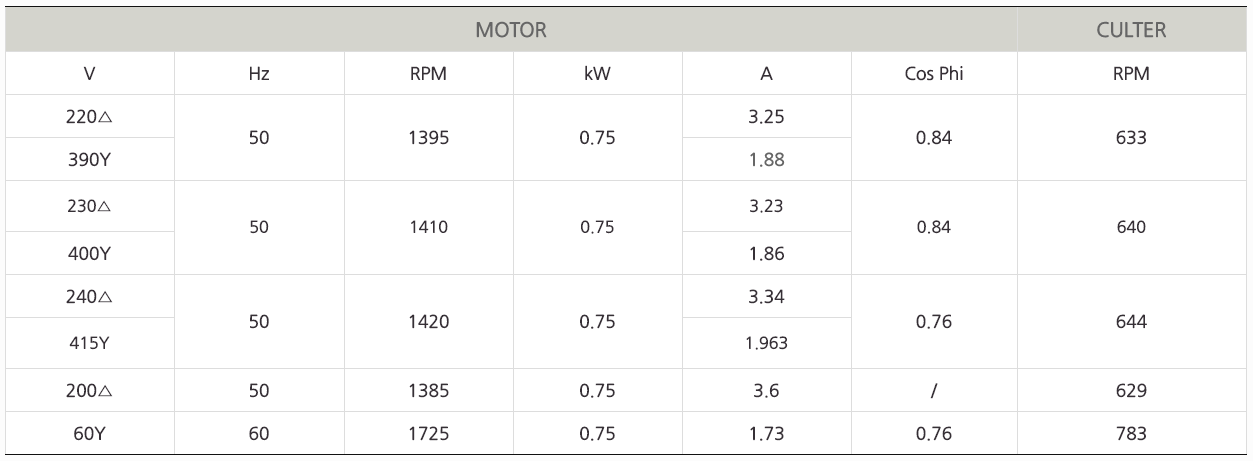

• Standard 3-phase electric motor

• Chip ejection by rotation speed (no need for air blower)

• Cutter rotation sensor (optional : binary/counting signal)

• Productivity improvement

• Stable welding quality by complete dressing




|TIP CUTTER ASSEMBLY

• High

• Very compact dressing cutter, which makes it possible to dress all types of guns

• Recommended pressure of the gun on the cutter : between 80 and 150daN depending on the type of gun and electrodes advantages


|1. SYMMETRICAL BLADE
• Perfect guidance of the tips
• No vibration during dressing
• Diameter of the lens guaranteed
• Circular Told ±0.1mm
• Chip thickness controlled by AMDP design

|2. SYMMETRICAL BLADE
• No hold through cutter
• No jamming
• Automatic ejection of the chip, without air blower

|3. INTERCHANGEABLE BLADE
• CUTTER -> LIFTTIME CUTTER 60,000 DRESSING CYCLES
• BLADE -> LIFTTIME BLADE 15,000 DRESSING CYCLE
