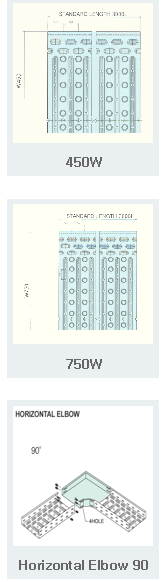

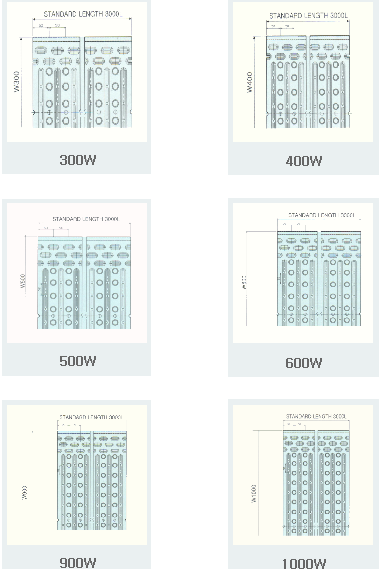

HI-TEC TRAY(PUNCHING) Modify Date : 2020-07-21 11:25:23

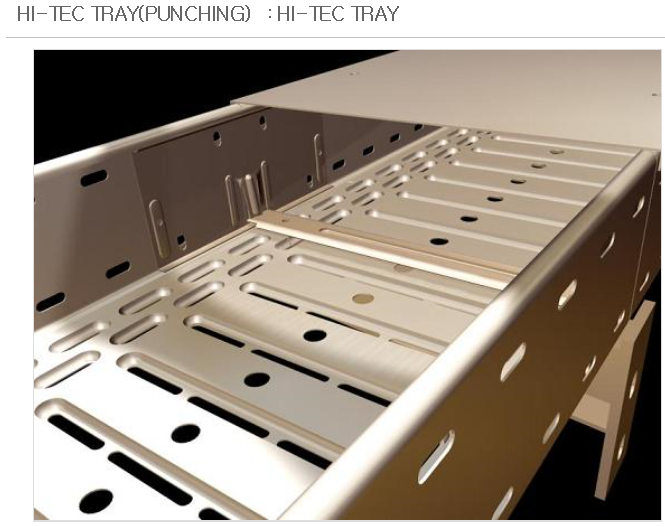

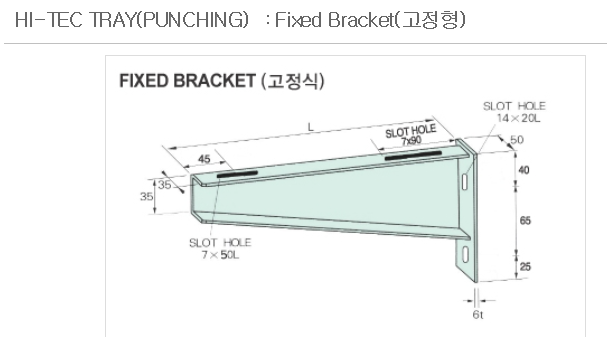

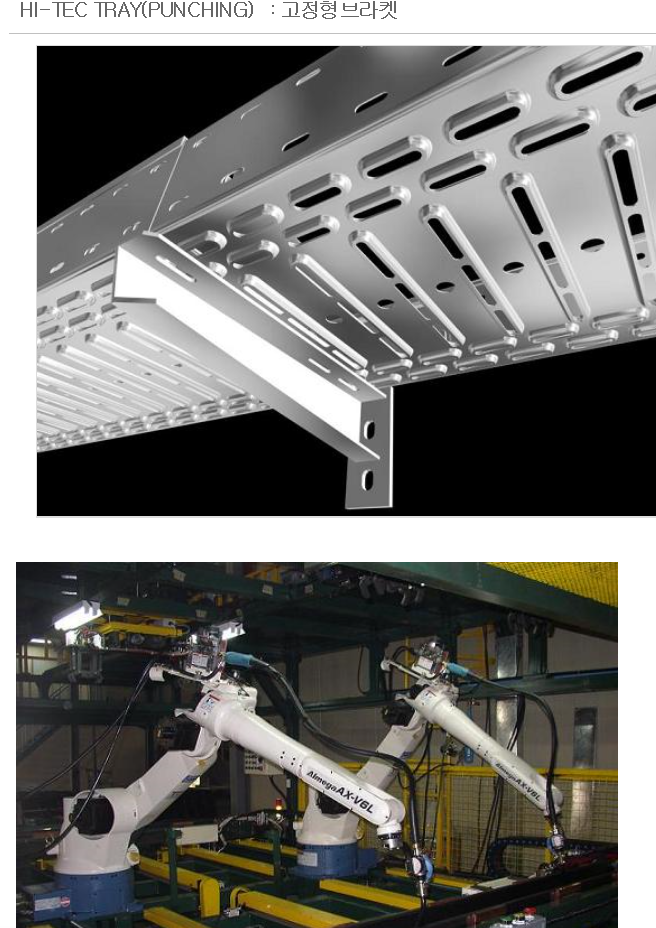

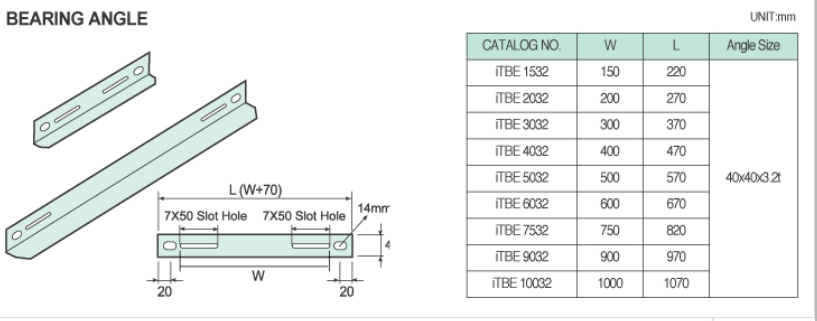

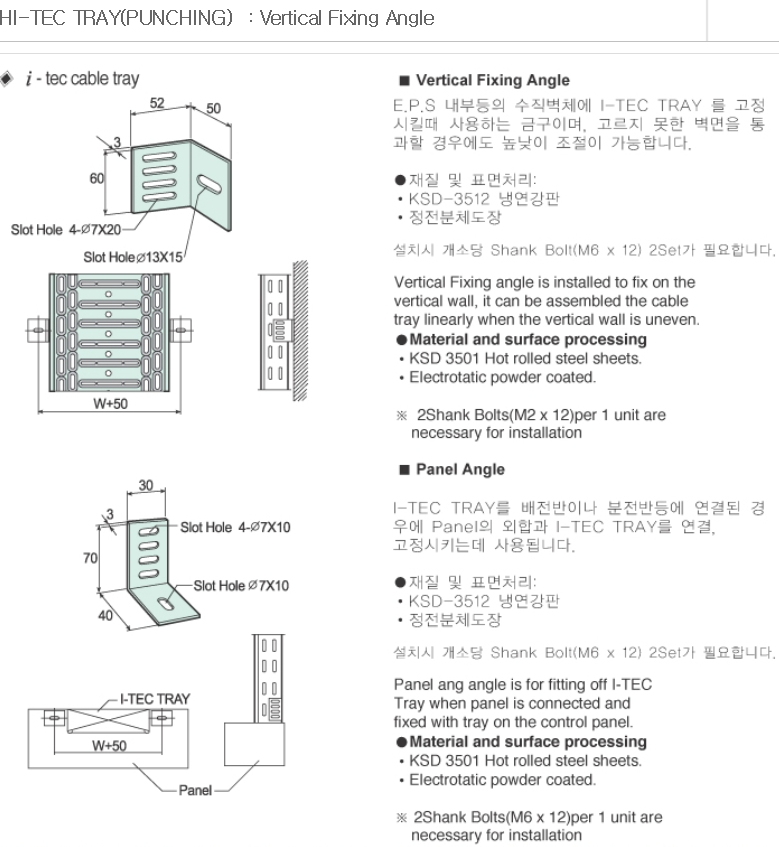

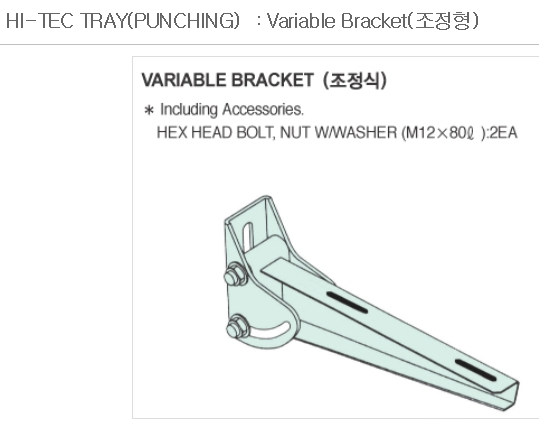

Fixed Bracket
○ To support the i-Tech Track line, support is used for installing concrete walls or solid brick walls and support called our U-Support.
○ 2 sets of shank bolt/nut (M6X12) are required for tightening the i-Tec tray and bracket.

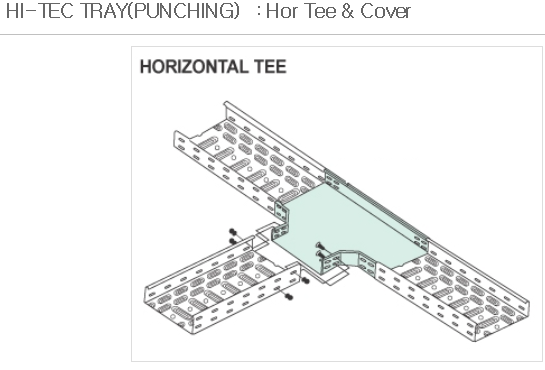

Horzonal Tee & Covers
○ Fitting used when the i-Tec Trackline changes direction from horizontal to T-shaped.
○ Stright Connector 6ea and shank bolt/nut 24set are required for installation.
○ Covers require four locking devices.

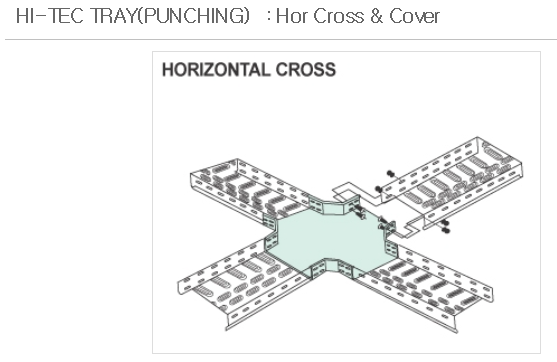

Cross & Covers
○ Fitting used when the i-Tec Trackline changes direction from horizontal to + shape.
○ Stright Connector 8ea, shank bolt/nut 32set is required for installation.
○ Four locking devices are required for cover

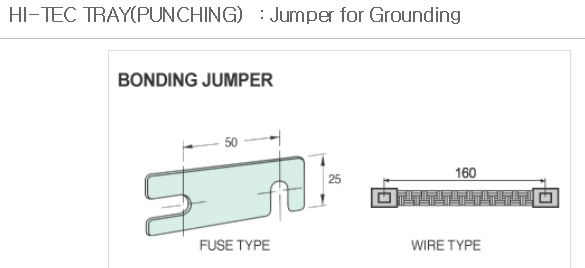

Jumper for Grounding
○ Grounding work should be carried out according to the voltage of use as other conduits, as the electric current in the i-Tech Tray may cause electric shock due to short circuit lights.

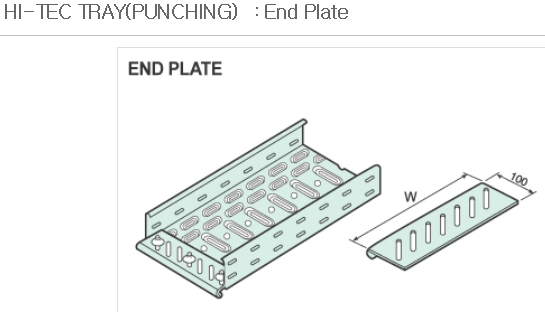

End Plate

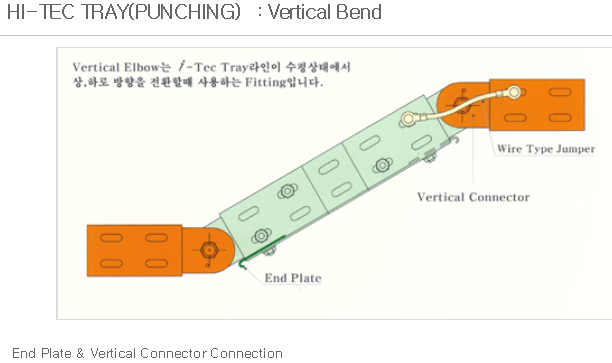

○ If you want to change the direction of the i-Tec tray line vertically, connect the Vertical Connector to the Tray and use it as a Vertical Elbow, which is used to strengthen the strength of the tray end and to protect the laying wires.
○ 2 sets of shank bolt/nut (M6X12) during installation

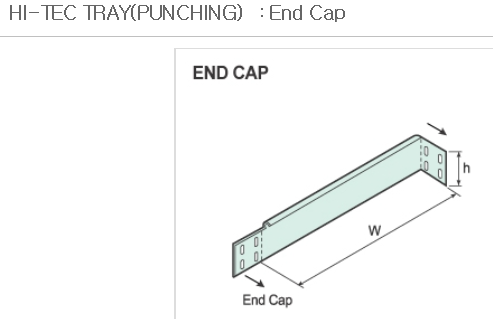

End Cap
○ Used to block the end of the i-Tech Track line for finishing.
○ 4 sets of shank bolt/nut (M6X12) during installation

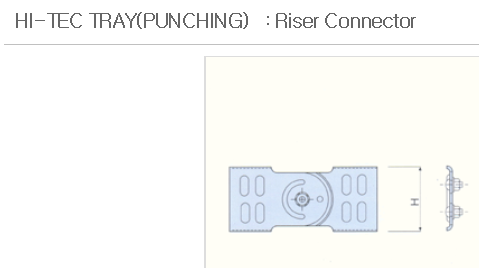

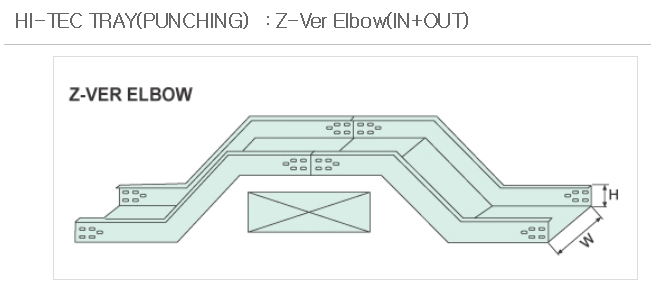

Vertical Connector Set
○ If you want to change the i-Tec Track line up or down, connect the Vertical Connector to the Tray and use it as a Vertical Elbow, which is the prohibition of connection.
○ 12 sets of shank bolt/nut (M6X12) during installation

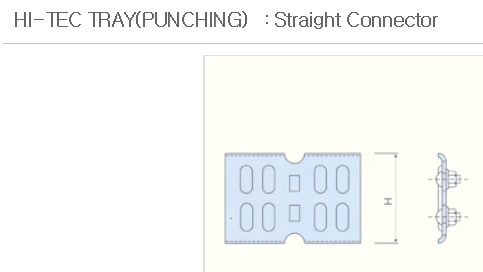

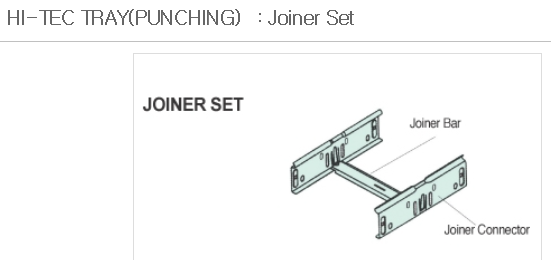

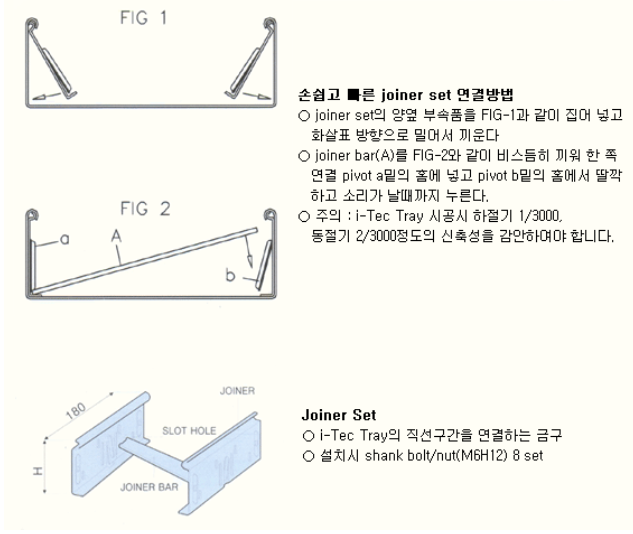

Straight Connector
○ When the i-Tech Tray horizontal straight section is turned to L, T, +, etc., the gold ball connecting the Fitting and Tray straight section is connected.
○ 4 sets of shank bolt/nut (M6X12) during installation
