·It consists of 64 dye boxes, 88 dye boxes, and 112 dye boxes. (Special specifications according to the quantity and size of the dye box can also be produced after consultation.)
·The robot moves fast using X, Y, and Z servo control systems.
·4 4 When measuring combination, it takes about 1 minute and 30 seconds to move the robot. (based on 64 dye boxes)
·It's easy to operate (PC Touch Screen)
·Applying servo motor and servo live, precise location control is possible. (262144P/Rev 18bit, ABS Encoder)
·Easy to maintain.
- Using a special bearing that is strong against dust, there is no concern of failure caused by foreign substances.
- Very strong against strength and impact using German special bearings.
- Japanese motors and control parts make it easy to supply and demand parts anywhere in the world.
·ERP, Barcode system can be linked.
·Automation of dye rooms can improve re-salt components, improve the environment, and relieve workers from their duties.
·The small scale and the large scale can be selected by the operator and used at the same time.
·Korean language, English language, and Chinese language programs.

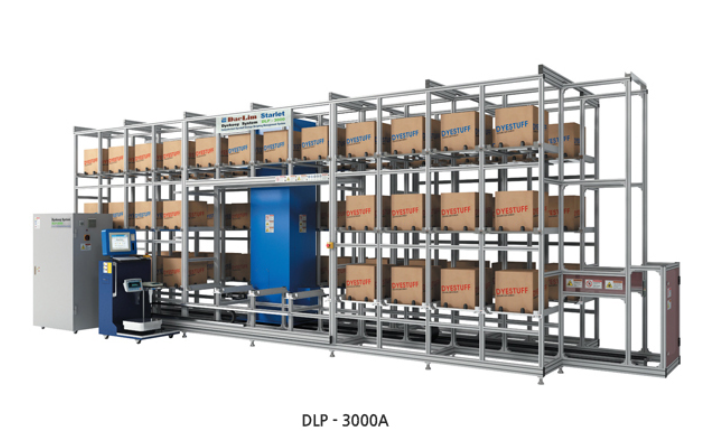

Model |
DLP-3000A |
| Transport method | X, Y, Z - Axis servo motor robot |
| Stock rack | 64ea, 88ea, 112ea (Standard) |
| Weigh rack | 4ea (Standard), Additional rack (Optional) |
| Size | Rack part 1set (4 × 3ea) : 2300(W) × 580(D) × 2780(H)mm Weighing part : 650(W) × 810(D) × 1400(H)mm |
| Speed (Moving) | Minimum 1min. 30sec./4 combination |
| Balance | Big size : Maximum 40kg, minimum 0.5g (d=0.5g) Small size : Maximum 2000g (d=0.01g) |
| Power source | 380VAC 50/60Hz 3phase (Minimum 3kw) |
| Weight (Approx.) | Stock rack 64ea : 2020kg Stock rack 88ea : 2400kg Stock rack 112ea : 2780kg |
| Dimension (Approx.) | Stock rack 64ea : 8220(W) × 2540(D) × 2780(H)mm Stock rack 88ea : 10520(W) × 2540(D) × 2780(H)mm Stock rack 112ea : 12820(W) × 2540(D) × 2780(H)mm |
·The prescription data can be linked to the production department's office. (ERP, Barcode System)
·The small scale and the large scale can be selected by the operator and used at the same time. (calculation range: 0.01g to 40kg)
·The control department can be operated at 180 degrees left and right at the convenience of the user. (Moving Controller System Applied)
·Easy to operate. (15 inch PC touch screen)
·You can check the measurement results and print them out to prevent re-inflammation.
·Lot management by dye is possible. (Barcode Printer and Scanner : Option)
·It is possible to calculate the cost of each dye used.
·Applying the dye usage management program system. (Day/month/year inventory management)
·Choose Korean, English, and Chinese programs.

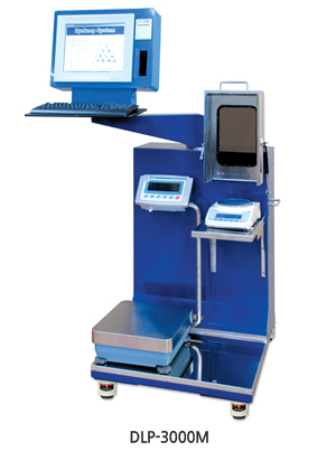

Model
|
DLP-3000M
|
|
| Weighing method | Balance weighing system | |
| Balance |
Big size : Maximum 40kg, Minimum 0.5g (d=0.5g) Small size : Maximum 2000g (d=0.01g) |
|
| Control PC | 15″ PC touch screen | |
| Power source | 220VAC 50/60Hz single phase | |
| Weight (Approx.) | 80kg | |
| Dimension (Approx.) | 1150(W) × 650(D) × 1700(H)mm | |

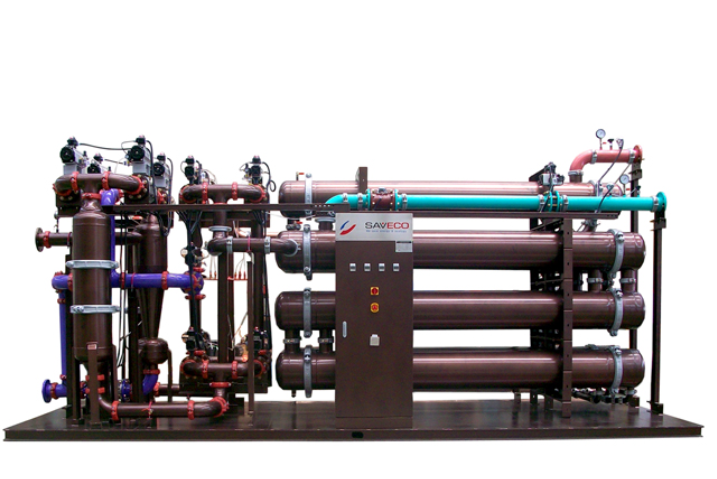

(waste water heat system)
