SME Co., Ltd

machinery & heavy equipment031-499-0679

SOURCEModify Date : 2020-07-20 17:13:18

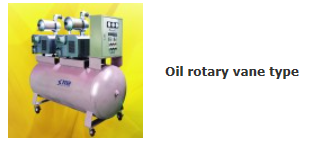

* Type
 - Duplex, oil rotary vane vacuum pump


* Construction


 2-Vacuum pump(Duplex)

 1-Receiver tank

 1-Control panel 1-W/standard accessories




Specification-Duplex Tank Mounted

Model No.

No. of Pump

Tank Size(Ø)

Capacity (L/min)

Motor(kw)(HP)

Size(WxLxH)

SME-AB20

2

300x800

400

0.9x2(1.2)

1300x450x900

SME-AB22

2

470x1000

900

1.5x2(2)

1450x600x900

SME-AB23

2

660x1450

1300

2.2x2(3)

1800x700x1300

SME-AB24

2

660x1450

3200

3.7x2(5)

1950x900x1600

SME-AB25

2

800x1450

4300

5.5x2(7.5)

1950x950x1700

SME-AB26

2

800x1450

5000

7.5x2(10)

1950x1050x1700

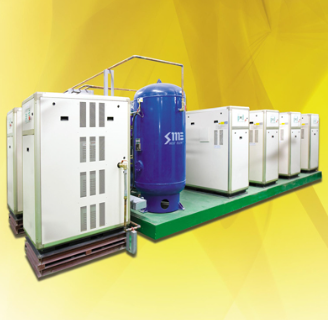

MEDICAL AIR COMPRESSOR SYSTEM

Type

- Duplex, Oilless Air -comp. System for ICU,OR,ER



Construction



- Oilless Air -comp(Duplex). Reciver Tank, After Cooler, Main Filter, Air Drier, Pre Filter, Line Filter ,

Coalescent Filter, Adsorbant, Regulator, Control Panel.



Option/I



- Desiccant Type Air Dryer.





Specification


Model No.

Type

Kw(HP)

Pressure (kg/㎤)

Free Air Delivery    (l/min)

Air Outlet

Tank Capacity

Receiver Tank Capacity

SME-AA11

Reciprocating

2.2duplex(3)

7

255

PT 1/2"

135

300

SME-AA12

Reciprocating

3.7duplex(5)

7

430

PT 1/2"

155

500

SME-AA13

Reciprocating

5.5duplex(7.5)

7

640

PT 1/2"

155

1000

SME-AA14

Reciprocating

7.5duplex(10)

7

850

PT 1

260

1000

SME-AA15

Reciprocating

11duplex(15)

7

1250

PT 1

280

1500

* Air Comp Scroll Tpye

Model No.

Type

Kw(HP)

Pressure  (kg/㎤)

Free Air Delivery     (l/min)

Air Outlet

Receiver Tank Capacity

SME-AA21

Scroll

2.2duplex(3)

8

240

PT 1/2"

300

SME-AA22

Scroll

3.7duplex(5)

8

400

PT 1/2"

500

SME-AA23

Scroll

5.5duplex(7.5)

8

640

PT 1/2"

1000

SME-AA24

Scroll

7.5duplex(10)

8

800

PT 1

1000

SME-AA25

Scroll

11duplex(15)

8

1200

PT 1

1500

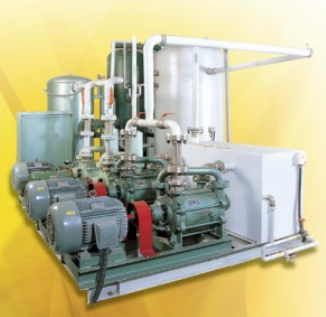

MEDICAL VACUUM PUMP SYSTEM

Type

- Duplex, water sealed vacuum pump



Construction
2 - Vacuum pump(Duplex)  1 - Automatic water supply / drain system.

1 - Receiver tank         1 - Control panel

1 - Separator tank       1 - W/standard accessories

Model No.

Type

Vent Velocity    (l/min)

Pressure (Torr) (15°C Water)

Motor  (kw)(HP)

Tank Capacity   (liter)

SME-AB11

Water Sealed

     850

17

2.2(3)

300

SME-AB12

Water Sealed

    1,500

17

3.7(5)

500

SME-AB13

Water Sealed

    2,500

17

5.5(7.5)

700

SME-AB14

Water Sealed

    3,000

17

7.5(10)

1000

SME-AB15

Water Sealed

    4,000

17

11(15)

2000

SME-AB16

Water Sealed

    5,500

17

15(20)

2000

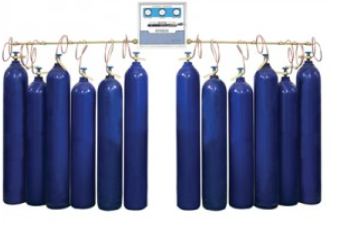

Type



- Auto throw-over / standing free

- Max. flow: 140Nm3/hr



Construction



- Cover: Stainless Steel 1.2t

- Panel : Al 2t color printed, P.C sheet coating

- Frame : Aluminium profile 30 x 30

Consist of

- Main body, Header, Pigtail

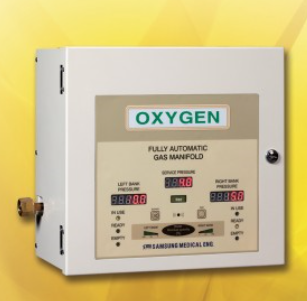

Fully Automatic Manifold
* Type : Fully Automatic

* Consist of

 - Main Body
 - Header
 - Pigtail
