ARCHITECTURALModify Date : 2020-07-20 17:06:29

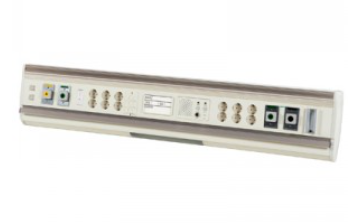

Type
Horizontal wall exposed mount.
Construction
- main frame: AL profile 2.5t anodizing finished.
- Front Cover: AL profile 2.5t powder coted paint finish.
- Side cover: AL die casting 4.0t powder coted paint finish.
- Option : Monitor Shelf with Rail ( wall mount type)
- Lighting : Reading Lamp 30w ( FL)
Indirect Lamp 10w or 20w ( FL)
Type
Horizontal wall exposed mounted.
Construction
- main frame: AL profile 2.5t anodizing finished.
- Front Cover: AL profile 2.5t powder coted paint finish.
- Side Cap: AL die casting 4.0t powder coted paint finish.
- Shelf : HPM 17.0t
- Lighting : Reading Lamp 20w ( Halogen)
Indirect Lamp 13w ( FL)
Type
Horizontal wall exposed mounted.
Construction
- main frame: AL profile 2.0t anodizing finished.
- Front Cover: AL profile 2.0t powder coted paint finish.
- Panel : AL profile 2.5t powder coted paint finish.
- Side Cap: ABS, 2.5t.
- Option : Monitor Shelf,Utiliry Basket
- Inclusion : Upper and Lower Rail
- Lighting : Reading Lamp 30w ( FL)
Indirect Lamp 10w or 20w ( FL)

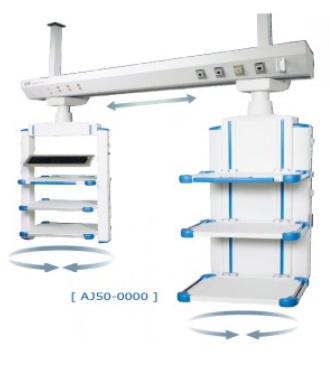

Suspended Supply Unit
Type
- Ceiling Mounted
Construction
- Material is all AL profile anodizing or baked painting finished.
- Weight : 135kg ( Console 1,990mm : 53kg, Equipment Carrier: 80kg)
- Shelf Header Box : Steel or AL profile, baked painting.
- Shelves Stroke : Console Rail ( change according to length)
- Carrier Load Capacity : 80kg
- Equipment Carrier Q'ty : 1 or 2 pcs(optional)
- Gas Outlet 4 Gases, 8Outlet (optional)
( Oxygen, Nitrous-oxide,Air, Vacuum)
- Receptacle : 110vAC, 220V AC(optional)
- Option : I.V Holder
- Inclusing Lighting: Indirect Lamp 30w( Fluorescent)
* Improve in nevery partient room.
* Match individualized requriemnets and meet optional needs.
* Construction durability with AL profile and laminate panels.
* Over 100 plastic laminate color selections to complements your room decor.
* Available every application - service outlet can be optional fix as hospital requirement.
* Instsllation is fast, simple, economical. |
| |
|
◦ The Interior Care unit's attractive, uncluttered appearance
gives any room a neat, clean, appearance.
◦ Clean straight line design units available in any
width or height to suit your patient service needs.
◦ Economical solution to patient care needs.
Place of use
a private room
* The flat wall's attractive, uncluttered appreance gives any room a neat, clean, appreance.
* Clean straight line design units available in any witdh or height to suit your patient service needs.
* Economical solution to patient care needs.
▶▷Type
◦ Horizontal wall exposed mount
▶▷Construction
◦ Main Body : steel 1.6t powder coated paint finish.
◦ Sliding Rail : Triple extension type
◦ Front Panel : a picture frame
◦ Side Cap : ABS, 2.5t
◦ Consis of Receptacle, Medical Gas Outlet,
Feature
- Construction durability with AL profile and larminate panels. - Available every application - Scrvice outlet can be optional fax as hospital requirement. - Installation is fast, simple, economical - Wallcare unit inner installation of potable vacuum & air comp
Consisting of
- 110V Receptacle (duplex)
- Ground Jack
- 220V receptacle.
- LAN/Phone
- Blank ( AL)
- Vacuun side base
- Sliding storage.
- Poling storage.
- Oxizen gas outlet
- Comp Air Gas outlet
- Vacuum Gas Outlet
- Bed bummper
- Panel
- Accessory
- Vacuum pump ( 0.3 HP, 220VAC),
- Air compressor ( 0.3 HP, 220VAC), |
| |
|
