Swinggate_400Modify Date : 2020-01-21 13:23:48

400

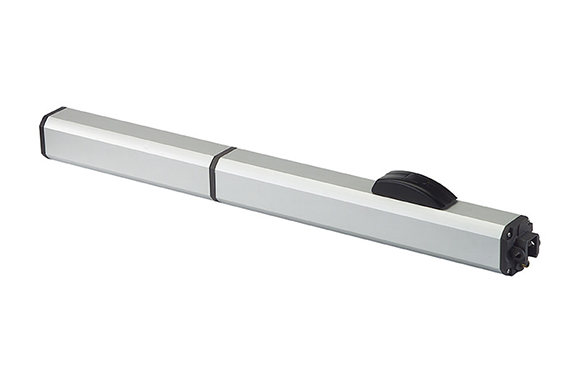

230V Hydraulic Operator
2,2 - 7 m per single gate
frequency of use (cycle / time) 50-70 cycle /hour
for business/industrial use

o Hydraulic operator

o For swing gate

o Swinggate Operator for Business/Industry

o 2.2 m single gate (7 m with electric lock)

o Self-hydraulic lock / LONG Ver for large industrial gates

o Products suitable for industrial facilities, auxiliary facilities and financial facilities


various models
The FAAC 400 offers six different types of operators, with or without hydraulic locks, in a range of 2.2 to 7 meters of single gates.

There are enterprise gates, industrial gates, and continuous switching models for the operator.


excellence of safety

The hydraulic unit has two excellent bypass valves to provide maximum protection against impact.

In an emergency, the door can be operated manually using the alignment key. Hydraulic locking forces also make the system very safe for external intrusion attempts.


FAAC 400 Features
Motor devices are housed in small hydraulic integral housing. All components are bedfed, continuously cooled, little maintenance required and low power consumption.


It uses FAAC only hydraulic oil and operates with very low noise, and is very stable even in cold temperatures of -20C +55C.

The product range is 2M to 7M (including electric lock) according to the various gates of the industry. From the model group with built-in hydraulic lock to the long version that can move large gate.

It's available.

Again, this is a randomly tailgate can be opened using the manual haejeki.


specification form

Hydraulic bypass operator l maximum usage per hour 40-70cyls / hour torque 4650-7750N

Electrical motor power supply: 220v-240v / 50 (60)Hz motorpower 220w operator size (length x width x height) 1285 (1031) x 113 x 85mm

Protection Class IP55 " External Protection Temperature -20 C+55 C

Stainless Steel Rod / Corrosion-Free Piston Protection Housing with Aluminum /

Anti-pressurizing safety functions according to cryogenic noise/ UNI 8612 certification / with cylinder adjustable for opening and closing
