Swinggate_S450HModify Date : 2020-01-21 13:17:10

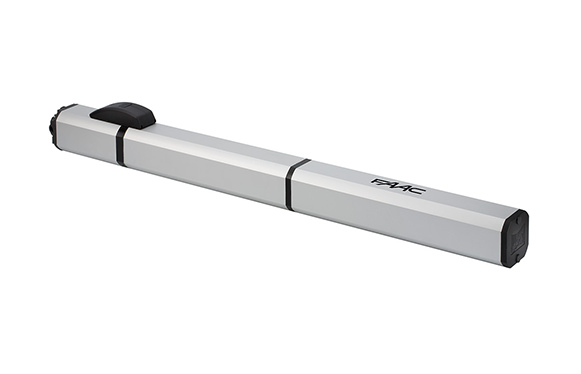

S450H
24V Hydraulic Operator
Singlegate 2 - 3 m
Frequency of use continuously available
for housing/business use
o Hydraulic operator
o Swing Gateong
o General/enterprise swinggate operator
o Singlegate 2-3m
o Low-power hydraulic operator allows battery power to open and close several times in case of emergency
Hydraulic system optimized for residential/enterprise gates
The 450 model hydraulic system is optimized for automatic system, as it is easy to install and fast and uses electronic control of the hydraulic operator.
excellence of safety
The hydraulic unit contains 2 by-pass valves which prevent external shocks and provide excellent sensitivity.
Based on hybrid technology (24V + hydraulic operator), it is also very safe for external intrusions through low power and hydraulic locking.
Electronic Safety Device
The E045-E145 electronic control board can be maintained/settled and motorized directly by the drive in the S450H.
In the case of an emergency, the tailgate using the manual haejeki can open and close at random.
S450H Other Features
In case of emergency due to low power of 24V, the battery can open and close several times even when the power supply is not available.
Reverse object detection through SAFEencoder to prevent breakage and prevent human accidents (when SAFEencoder is installed separately)
The weather conditions also have anti-corrosion coatings that can withstand the weather conditions, which can sustain the instrument'span.
specification form
Hydraulic by-pass operator type l Continuously Available Torque 5000N per hour
Electrical motor power supply: 220v-240v / 50 (60)Hz motorpower 24v operator size (length x width x height) 1113 x 85 x 119mm
Protection Class IP55 " External Protection Temperature -20 C+55 C
Anti-pressurizing safety system function according to motor control/low noise/ UNI 8612 certification through hydraulic cylinder
