Polymer automatic melting deviceModify Date : 2018-11-23 02:16:39

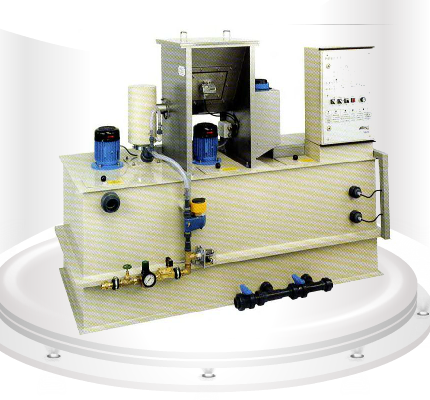

▣ POLYMAT


It is an integrated automatic melting device that completes storage, supply, mixing, dissolution and aging of polymers in a single system. By adopting the principle of continuous proportional supply, the concentration of the solution is kept constant at all times.






Fully automated system

Dissolution Concentration: 0.05% ~ 0.5%, Random Control, Maximum Viscosity 2000cp

Compact appearance, excellent dissolving power and inexpensive equipment

Capacity: 500 ~ 16000 L / hr


#Characteristic

Powder supply device: Powder supply by sophisticated screw (1 ~ 99%)

Water jet device: instantaneous mixing of strong turbulence and polymer

Melting chamber: 2nd mixing after falling

Aging room: Ensuring sufficient aging time

Supply room: completion of preparation

Touch Screen: Display of Operation Status


Continuous feeder: Automatically control the powder feed screw by checking the flow rate. This ensures a consistent concentration of solution

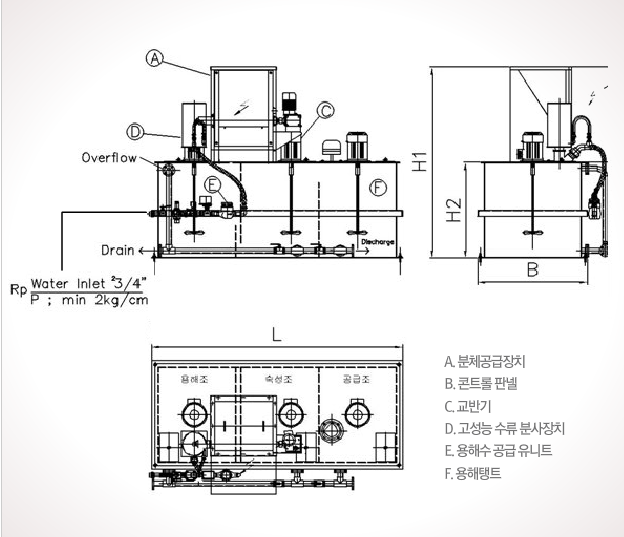

#drawing
