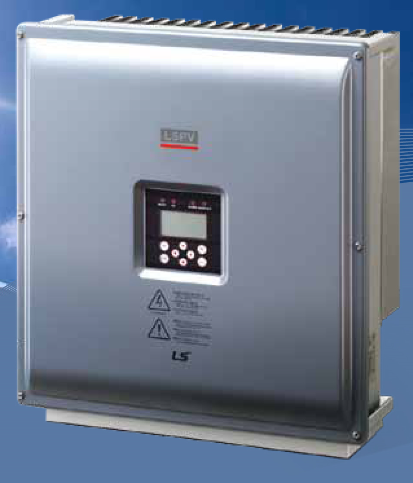

▣ Three Phase Solar Inverter (No Transformer Type)
LSRP-T013L / T017L / T020L are optimized for rooftop power generation systems from 13kW to Mega Watt units. Designed with IP65 enclosure protection class, it can be installed indoors and outdoors. High-efficiency energy conversion is realized through high-speed, precise MPP tracking control. Low noise operation is possible by applying natural air cooling method and it can be used for thin film solar modules.
#Characteristic
-Transformerless topology
Rated output power 13/17 / 20kW
-Maximum (Euro) Efficiency: [T013L] 98.0% (97,5%)
[T017L] 98.2% (97.8%)
[T020L] 98.2% (97.8%)
High MPPT Input Voltage Range
-Outdoor installation with IP65 rating

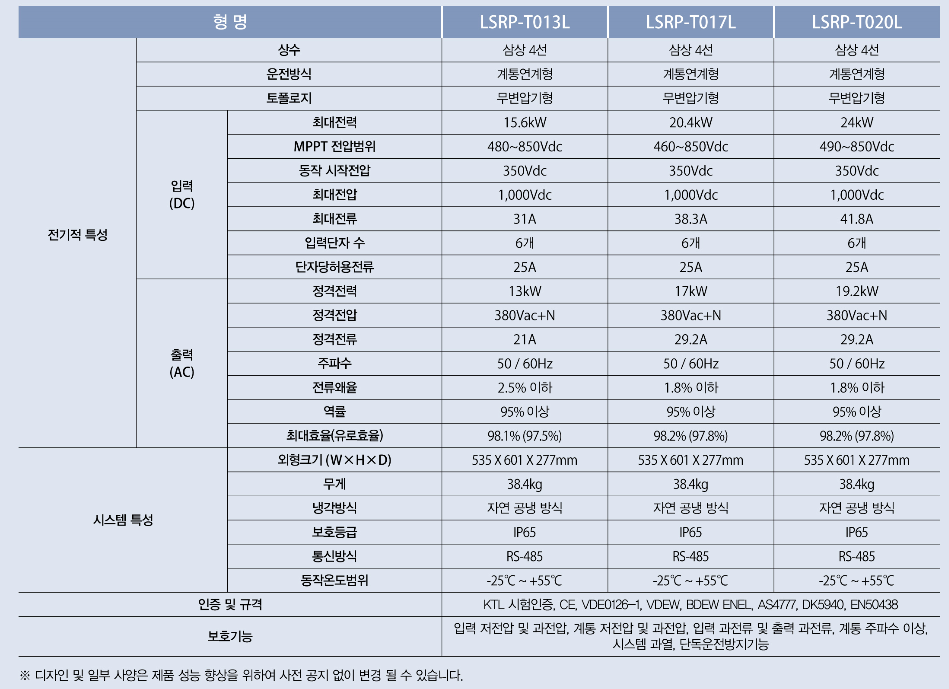

#Specifications
