▣ PCB Equipment

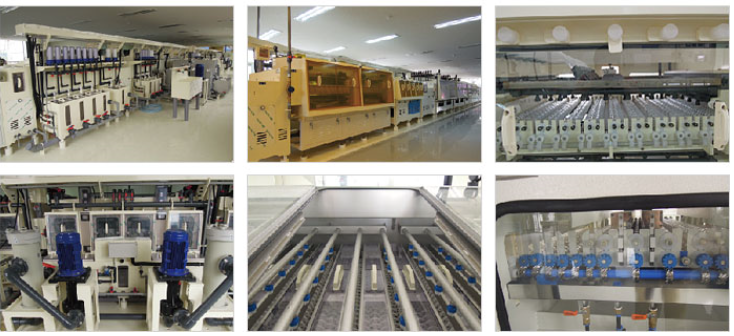

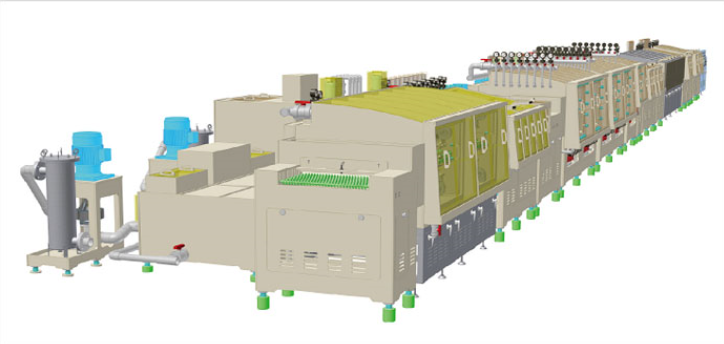

# D.E.S. LINE
# Equipment Description
Development-Process of chemically removing the dry film of the part not exposed to UV light during exposure
Etchin-Process to chemically remove unnecessary copper foils other than the circuit of the product
Strip-The process of completely removing dry film remaining on a substrate on which a circuit is formed with an alkali (KOH or NaOH) agent.
# Equipment Features
· Easy cleaning by applying one-touch nozzle for developing, etching and peeling
· Easy nozzle cleaning due to easy disassembly of OSC
· Excellent for collecting peeling film residue by applying filtering device of peeling part DRUM type
· Development and Epping Main Chamber, Flush Side Double Cover
· Easy to observe inside even under spray by peeling and washing inside nozzle cover
· Drying drive gear drip suppresses dust generation by friction and increases durability by lubrication of driven gear
· Durable material such as PP and PE for conveyor
· Wire duct is located on the top of the equipment for easy management and beautiful appearance
