▣ PNEUMATIC ACTUATOR (RACK & PINION Type)
Introducing new SMART ACTUATOR
1.Wide angle adjustment range Thanks to special design applied to, the eneral angle range 90º ± 5 is overcome to enhance user convenience. R ※ Series
R ※ Series Angle range
90º ~ A + 5º, -10º (standard)
90º ~ B -30º (option)
2.More compact and smart
Implementation and adoption of the compact design, smart appearance, maintain the consistency of the design was adopted by the same double and single cover used as a color indicator. Opening and closing checks are easier than.

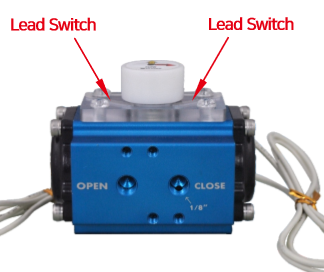

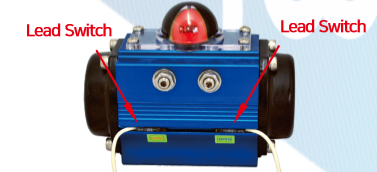

3.Magnetic Sensor (Lead Switch) Hall (Option)
By Placing a magnetic inside the body, and a sensor hall on the side, the sensor can be slid in enabling the internal status to be transmitted out via electrical signals.

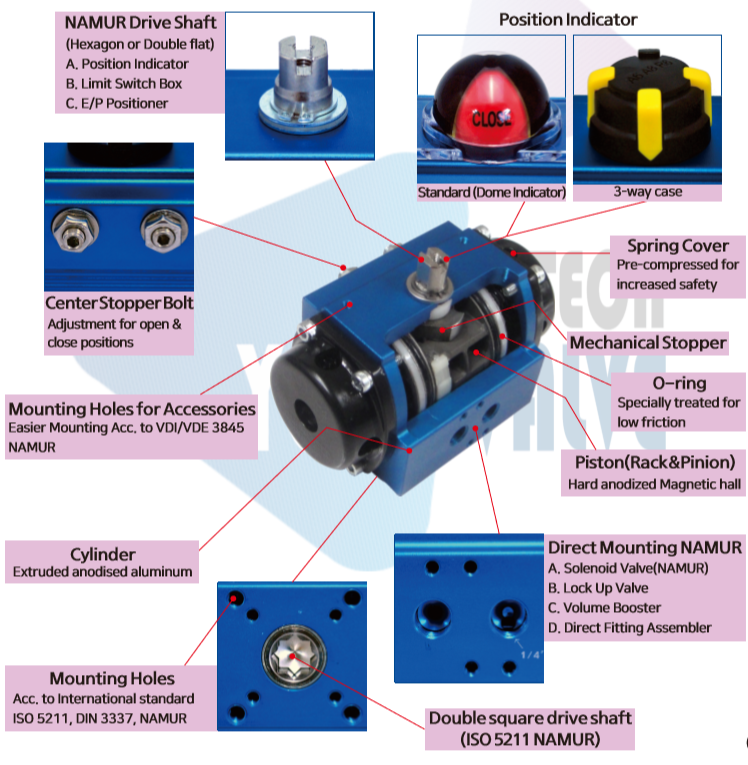

Design and structure
1. Smart actuator is designed for rotary type valve. 2.Smart actuator is Rack & Pinion type and more
compact and lighter.
3.Smart actuator is designed for ISO standard and it
makes assembly with various accessories possible.
4.Smart actuator with good price and high quality
is mass-produced through precision processing.
5. 3 step inspection is performed in every actuator
to minimize a defect.
6.More than 1,000,000pcs are produced yearly in
automation facilities and quick delivery is one of
our advantages.
7. Yoon valve is available to provide solutions to a
wide of range in industries including
Petrochemical, power generation,
atomic power plant, steel mill, shipyard, refining,
wastewater disposal, automation facilities and
building air conditioner.
Pneumatic Rotary Actuator Applications
