UTP-1 (1 phase)Modify Date : 2018-11-20 18:44:09

▣ UTP-I (Phase 1)

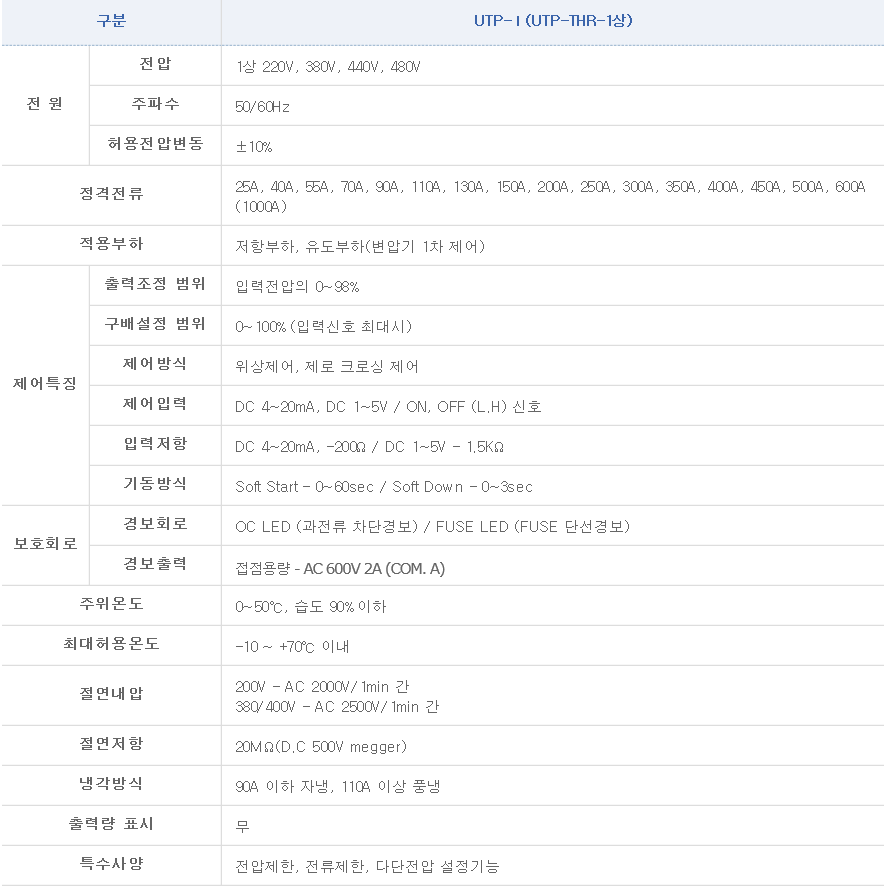

#Specifications

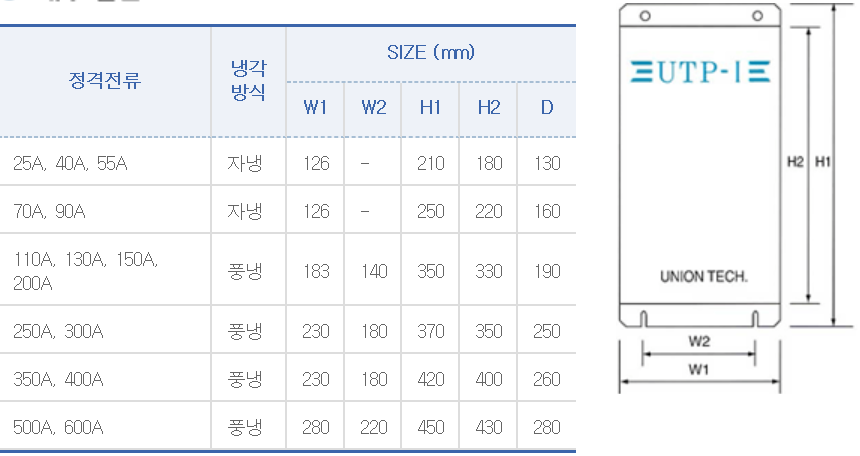

# Structure and specification

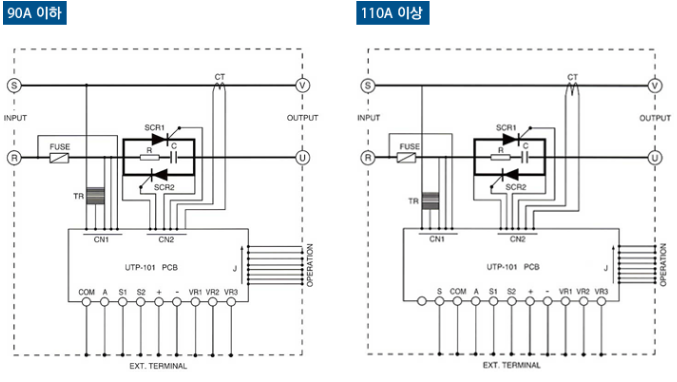

# Internal settlement



# Instruction manual

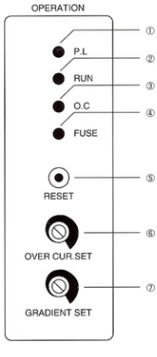

1. OPERATION Name

① P.L LED-Green LED turns on when INPUT is ON.

② RUN LED-Green LED turns on when RUN is turned on in TB S1, S2.

③ O.C LED-If tube current flows more than operating current, output is cut off and red LED is turned on to protect SCR.

④ FUSE LED-Red LED is on when fast fuse is broken or input power breaker (NFB) is defective.

⑤ RESET BUTTON-BUTTON which resets manually when O.C (over current) LED is on.

⑥ OVER CUR. SET (OVER CURRENT SET)-OVER CUR. Set the SET.

⑦ GRADIENT SET-If the load capacity is too big, the output voltage can be changed from 0 to 100% with proper voltage.
