Internal Floating Roof최종 수정 일자 : 2020-08-11 11:29:22

◇개요

Many companies in petroleum, petrochemical and tank terminal throughout the world have turned to Korea Float for its superior design and efficiency on internal floating roof.

The long life cycle, excellent emission control and no maintenance cost are well known now. Korea Float’s design and

manufacturing method meet API standards and specified national codes and regulations worldwide.

◇장점

 - Meeting API 650 Appendix H Standard API MPMS Chapter 19.2 (Evaporative Loss)
- Highly efficient vapor loss prevention design
- Excellent quality Seal Material
- Wide range of storage application
- Superior chemical resistance (100% Aromatic Protection)

◇주요 제품

 -KFIS-1 : Single Wiper Seal
 -KFIS-2 : Double Wiper Seal

One economic way of sealing is to apply vapor mounted single or double seal type. Its flexible wiper seal will cover the rim space and can last long even after long years of floating roof’s movement.

100% aromatic prevention quality will meet your needs and requirement.

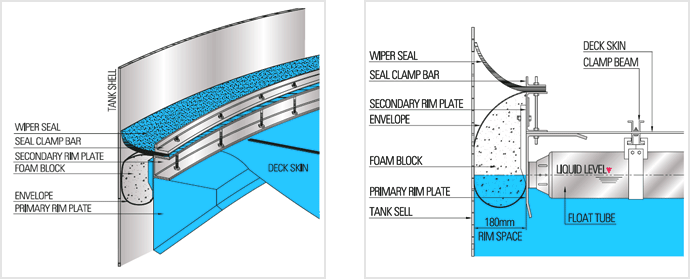

-KFIS-3 : Primary Foam & Secondary Wiper Seal

Excellent liquid-mounted foam seal and secondary wiper seal have been chosen from many customers around the world.

The foam block’s resilience provides excellent sealing effect and secondary wiper seal reinforces the sealing effect.

-KFIS-MS: Mechanical seal

Stainless Shoe is always in contact with tank shell due to powerful stainless steel Pusher Spring.
KF Mechanical seal system have been used especially for strong chemical content such as Petrochemical Industry as well as Petroleum

. Continuous seal is perfectly reducing the vapor loss with top quality material. Mechanical seal system’s life time can cover more than several decades.
