Measurement System최종 수정 일자 : 2020-08-10 14:50:04

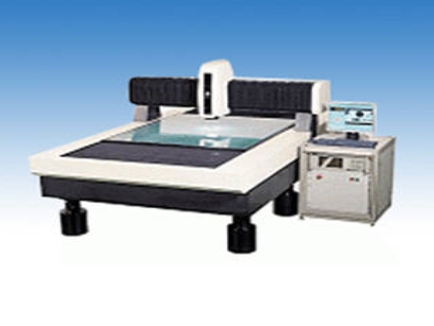

| <Vast 1500C> ■Feature •Bridge type X axis and slide bed type Y axis •High precision movement system by the patent thechnology •Solid design and high accuracy •Granite surface plate base •Fast accelation and high speed by the DC servo motor •Minimize measuring error by precision zoom lens •Auto focus and programable light control system •The world best image processing technology •IView software that support easy user operation •Joystick control the speed on the 3 axes •Compact anti-vibration pad system •The high quality mesurement system ■Spec. •0.0001 mm glass scale on XYZ •DCC, Joystick, Keyboard Motion Controls •High resolution color CCD camera •PCI color frame grabber •12.5:1 programmable zoom lens •Programmable LED section ring illumination •Coaxial top and back light •iView-4000 metrology software •Pentium IV Computer with 17″ LCD Monitor |

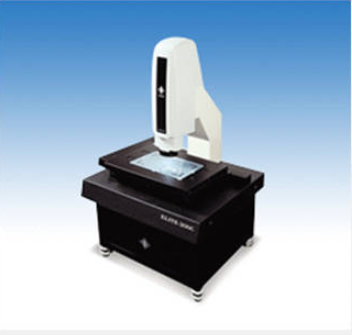

 | <Elite 200C> ■Feature •Slide bed type X, Y axes •Good design and high accuracy •Granite surface plate base •Fast accelation and high speed by the DC servo motor •Minimize measuring error by precision zoom lens •Auto focus and programable light control system •The world best image processing technology •IView software that support easy user operation •Joystick control the speed on the 3 axes •Compact anti-vibration pad system •Economical price ■Spec. •0.0005 mm glass scale on XYZ (0.0001 mm optional) •DCC, Joystick, Keyboard Motion Controls •High resolution color CCD camera •PCI color frame grabber •6.5 :1 programmable zoom lens •Programmable LED section ring illumination •Coaxial top and back light •iView-4000 metrology software •Pentium IV Computer with 17" LCD Monitor |
 | <Mighty 50M> △Feature •Measurement sytem for small size parts •Compact design, high accuracy and repeatablity •The world best image processing technology •Manual type iView software that support easy user operation ■Spec. •25 mm micrometer heads •(25 mm digital positioners optalnal) •High resolution color CCD camera •70XL micro zoom lens •20W halogen sub-stage illumination •LED ring light illumination •iView1500 imaging and measurement software •Pentium iV computer, 17" LCD monitor |
 | <Mighty FV> ■Feature •Measurement sytem for small size parts •Compact design, high accuracy and repeatablity •The world best image processing technology •Manual type iView software that support easy user operation ■Spec. •High resolution color digital camera •PCI color video card •Macro zoom lens •Magnifiacion : 0.7x - 4.5x •LED ring illumination •iView-1000 metrology software •Pentium IV Computer with 17" LCD screen Monitor |
 | <Vast 1000C> ■Feature •Bridge type X axis and slide bed type Y axis •High precision movement system by the patent thechnology •Solid design and high accuracy •Granite surface plate base •Fast accelation and high speed by the DC servo motor •Minimize measuring error by precision zoom lens •Auto focus and programable light control system •The world best image processing technology •IView software that support easy user operation •Joystick control the speed on the 3 axes •Compact anti-vibration pad system •The high quality mesurement system ■Spec. •0.0001 mm glass scale on XYZ •DCC, Joystick, Keyboard Motion Controls •High resolution color CCD camera •PCI color frame grabber •12.5:1 programmable zoom lens •Programmable LED section ring illumination •Coaxial top and back light •iView-4000 metrology software •Pentium IV Computer with 17" LCD Monitor |
 | <Premium 800C> ■Feature •Bridge type x axis and Slide bed type Y axis •Solid design and high accuracy •Granite surface plate base •Fast accelation and high speed by the DC servo motor •Minimize measuring error by precision zoom lens •Auto focus and programable light control system •The world best image processing technology •IView software that support easy user operation •Joystick control the speed on the 3 axes •Compact anti-vibration pad system •High quality measuring system •The best solution for complex part measurement ■Spec. •0.0001 mm glass scale on XYZ •DCC, Joystick, Keyboard Motion Controls •High resolution color CCD camera •PCI color frame grabber •12.5:1 programmable zoom lens •Programmable LED section ring illumination •Coaxial top and back light •iView-4000 metrology software •Pentium IV Computer with 17" LCD Monitor |
