Rotative Movement최종 수정 일자 : 2020-08-07 09:28:33

Rotative Movement

●It couldn't be
easier or more compact !

In a wire race bearing, highly resilient bearing rings made of wire assume the function of the bearing arrangement. This saves weight and space. The free choice of material and the free design of the enclosing structure also allow the weight of the overall product to be reduced considerably.

Franke Lightweight Bearings

●Runs precisely.
And runs precisely.

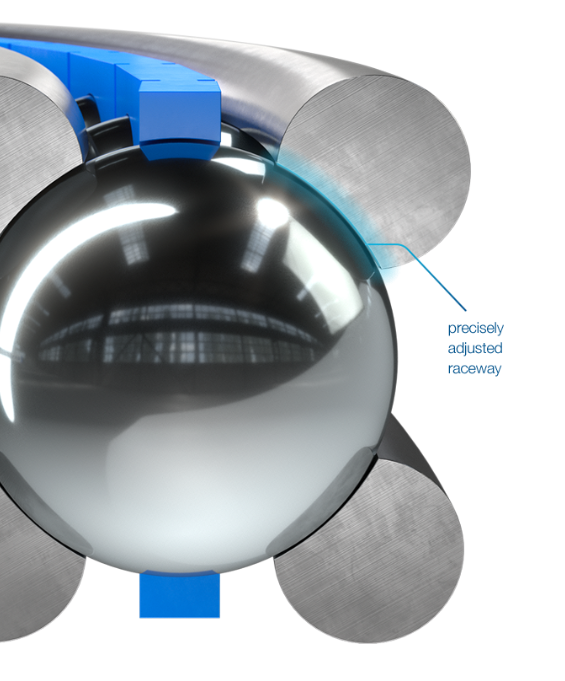

In wire race bearings, the raceways of the rolling elements are precisely matched to the diameter of the rolling elements. This ensures optimum functional characteristics and guarantees both, precise running and a long operating life.

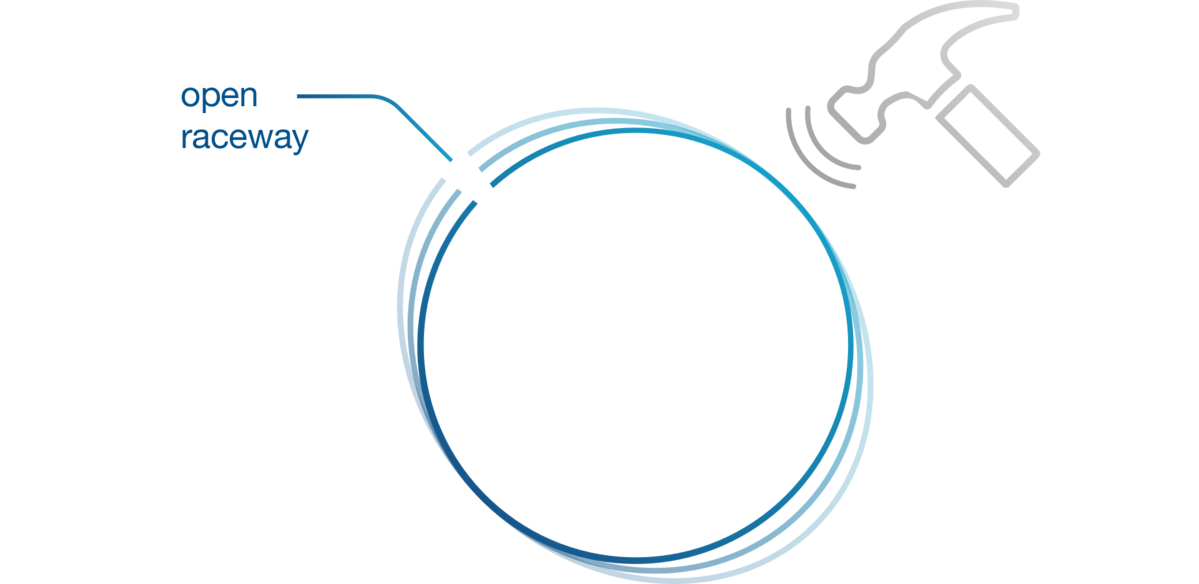

●Shock and impact elastic

The races of Franke wire race bearings are made of hardened spring steel. Shocks and vibrations are absorbed by them. The result: a high resistance against such disturbing influences.

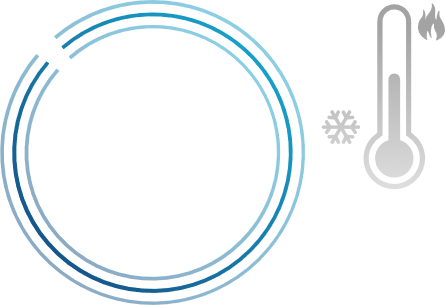

●Compensates deformations

Slight deformations of the enclosing structures, for example due to temperature changes, are compensated by the flexible Franke bearing element. Where other roller bearings fail, the Franke bearing continues to roll.

●No bearing play. Adjustable rotational resistance.

Does your application focus on dynamics or precision? Or does a good compromise have to be found? The rotational resistance of a wire race bearing is adjustable. Suitable for each application. At any time.

●Possibilities
instead of
specifications

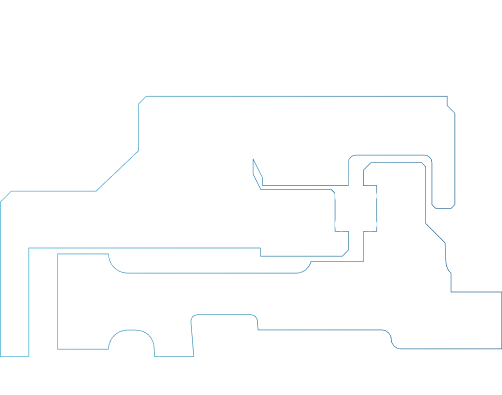

Franke bearing elements can be used in a wide variety of designs. The demands on the enclosing construction are low, because it is not directly exposed to the loads. The main load is borne by the wire race bearing. This allows you to determine almost freely the ideal shape and material of your further construction.

●Anything you wish.
Only what you need.

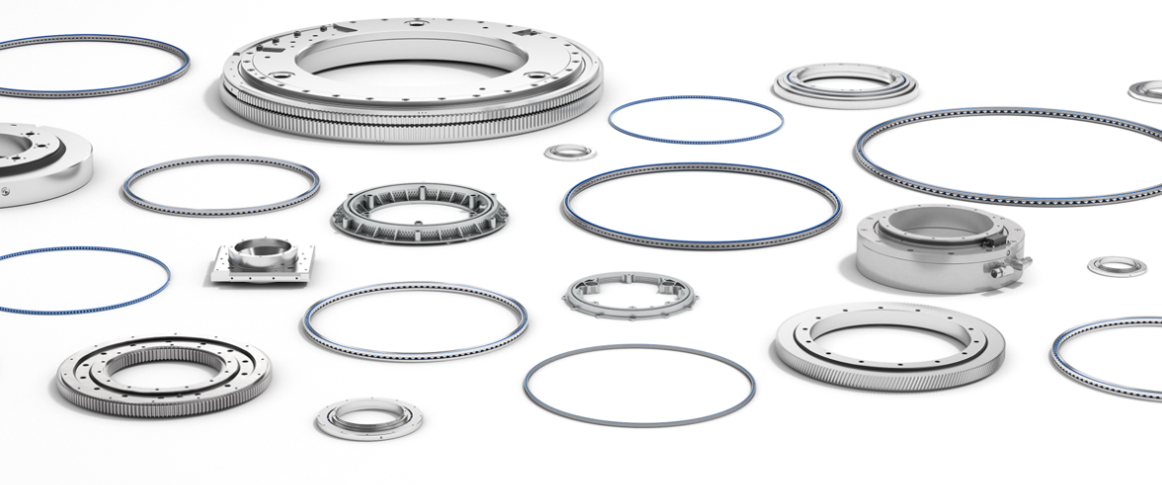

You can purchase from Franke only the bearing elements or ready-to-install bearing assemblies. On request in customer-specific design, with toothing or with integrated torque motor.

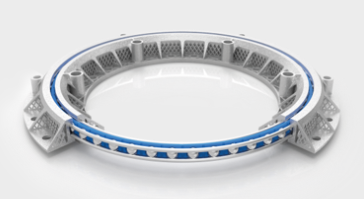

Bearing Elements All you need for your product solution with wire race bearings is a Franke bearing element. Franke bearing elements can be integrated directly into your design. You can easily assemble them yourself. The bearing element can be adapted in form and material bespoke to your requirements, for example by choosing amagnetic ceramic rolling elements.	Bearing Assemblies If required, we can also design and manufacture complete bearing assemblies for you. These can be mounted even more easily than bearing elements. Franke bearing assemblies are available in every size, with individual bores and toothings and in numerous materials such as aluminium, stainless steel, carbon or as a 3D printed housing.	Rotary Tables/Systems You prefer a complete solution from one source? Franke offers complete customized positioning and drive units, optionally with proximity switch, coupling and motor. Systems with direct drive are a particular strength of Franke. They are used, for example, in many computer tomographs of renowned manufacturers.

●Super Individual

Wire race bearings will have superpowers – if you need them:

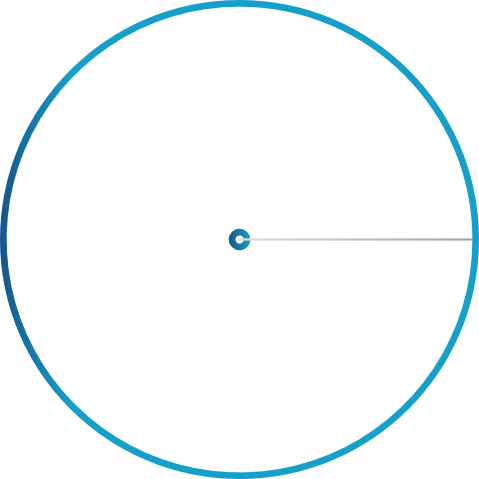

●Ø from 40 to 2000 mm.
Stepless.

Franke manufactures wire race bearings in any desired diameter between 40 mm and 2000 mm. We supply both individual and series requirements at attractive conditions.
