DESTO CUP & CONTAINER FORMING M/C최종 수정 일자 : 2020-08-05 16:31:37
| DESTO CUP & CONTAINER FORMING M/C |
| |

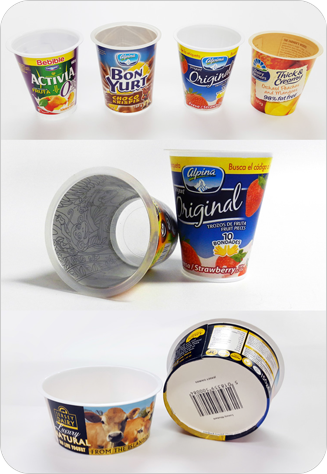

| |  | | This Desto Cup Forming Machine is designed to produce outer sleeve with paperboard wrapping for all kind of plastic inlet Desto cups for high graphic quality and increased insulation.
The EAGLE-1800 OW-D wraps pre-printed blanks around the plastic cups and containers at speeds up to 200 cups per minute, and EAGLE-1800 OW-B is available for wrapping not only pre-printed blanks but also paperboard around the bottom at speeds up to 180 cups per minute.
Desto packaging is suitable for a variety of markets including dairy products, horticultural, ready meals, hot drinks, hot and cold snacks, instant noodle, soup, confectionery, porridge and ‘meas-for one’. |
| | | | | | MAIN SPECIFICATIONS | | | • | Model : EAGLE-1800 OW-D/ EAGLE-1800 OW-B | | • | Production Speed
EAGLE-1800 OW-D : Max. 200 cups per min.
EAGLE-1800 OW-B : Max. 180 cups per min. | | • | Cup Size Range: 4oz ~36oz | | • | Sealing Method: Hot melt or Cold glue or Both | | • | Materials: Non coated duplex board or others | | • | Paper Weight : 170gsm ~ 350gsm | | • | Electric Power: 220V, 50/60Hz, 3P, 4W | | • | Electric Consumption: 15Kw | | • | Air Requirement: 1.2m3/min. at 5kg/cm2 | | • | Weight: 6,000kgs |
|
| | |
|
