Pneumatic actuator최종 수정 일자 : 2020-08-03 11:22:24

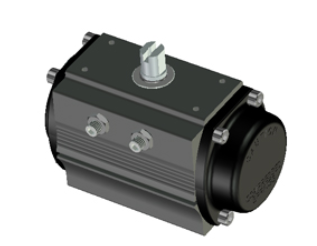

AD/AS(scotch yoke)
| ttachable Value | Rotary type valve |
|---|---|
| Operating Temperature | -20°C~80°C (Option -40°C~200°C) |
| Connection | ISO5211, DIN3337, Namur standard |
| Operation Mode | Scotch-yoke |
| Operating Mechanism | Double acting/Spring return |
 | |

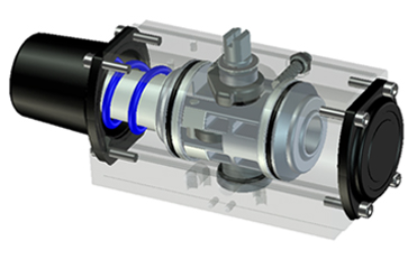

Part List
| NO | Part Name | Material |
|---|---|---|
| 1 | Body | Aluminum Alloy |
| 2 | Shaft | Steel Alloy (Nickel Plated) |
| 3 | Crank | Steel Alloy |
| 4 | Bushing (Top) | Engineering Plastic |
| 5 | Body O-ring (Top) | NBR |
| 6 | Shaft Roller (Top) | Engineering Plastic |
| 7 | Bushing (Bottom) | Engineering Plastic |
| 8 | Body O-ring (Bottom) | NBR |
| 9 | Shaft Roller (Bottom) | Engineering Plastic |
| 10 | Body Washer (Bottom) | Engineering Plastic |
| 11 | Body Washer (Top) | Stainless Steel |
| 12 | Body Snap-ring | Stainless Steel |
| 13 | Piston | Aluminum Alloy |
| 14 | Piston O-ring | NBR |
| NO | Part Name | Material |
|---|---|---|
| 15 | Piston Guide-ring | Engineering Plastic |
| 16 | Piston Pin | Steel Alloy |
| 17 | Piston Roller | Steel Alloy |
| 18 | Piston Pad | Engineering Plastic |
| 19 | Cover | Aluminum Alloy |
| 20 | Cover O-ring | NBR |
| 21 | Cover Bolt | Steel Alloy |
| 22 | Spring Cap | Engineering Plastic |
| 23 | Spring | Spring |
| 24 | Stopper | Steel Alloy |
| 25 | Adjust Washer | Stainless Steel |
| 26 | Adjust Nut | Stainless Steel |
| 27 | Adjust O-ring | NBR |
| 28 | Adjust Bolt | Steel Alloy |
Operating Mechanism
|
RD/RS(rack pinion)
| Attachable Value | Rotary type valve |
|---|---|
| Operating Temperature | -20°C~80°C (Option -40°C~200°C) |
| Connection | ISO5211, DIN3337, Namur standard |
| Operation Mode | Rack&pinion |
| Operating Mechanism | Double acting/Spring return |
 | |
Part List
