071-4111-0155
ATC최종 수정 일자 : 2020-07-30 09:32:15

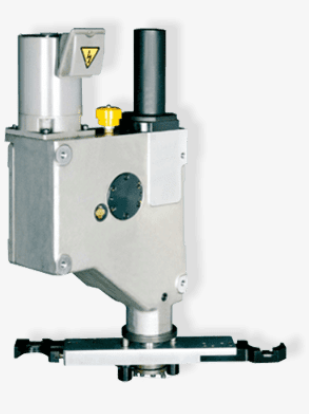

BT 30
SPECIFICATION
| CONDITIONS | CONTENTS | |
|---|---|---|
| Tool Shank (nominal size, No.) | MAS 30 | |
| Mass of Tool | 3.0kg x 2 | 1.5kg x 2 |
| Tool changing time(tool to tool) | 0.70sec | 0.5sec |
| Number of input shaft speed ranges | 1714 / min | 1800 / min |
| Mass of arm | 2.5kg | |
| Radius of arm | 150mm | |
| Drawing force of tool | 88.2N (9kgf) | |
| Reduction ratio | 1/20 | 1/15 |
| Lubricating system | Oils bath, Greasw | |
| Lubricating oils and grease | SAE80W(2-Grade) | |

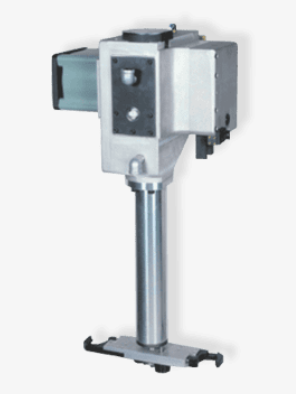

BT 40
SPECIFICATION
| CONDITIONS | CONTENTS |
|---|---|
| Tool Shank (nominal size, No.) | MAS 403 - BT40 |
| Mass of Tool | 5.0kg x 2 |
| Tool changing time(tool to tool) | 1.20sec |
| Number of input shaft speed ranges | 1800 / min |
| Mass of arm | 5kg |
| Radius of arm | 220mm |
| Reduction ratio | 1/40 |
| Lubricating system | Oils bath |
| Lubricating oils and grease | ISOVG68 (2-Grade) |
