2차전지 사업부최종 수정 일자 : 2020-07-27 16:01:00

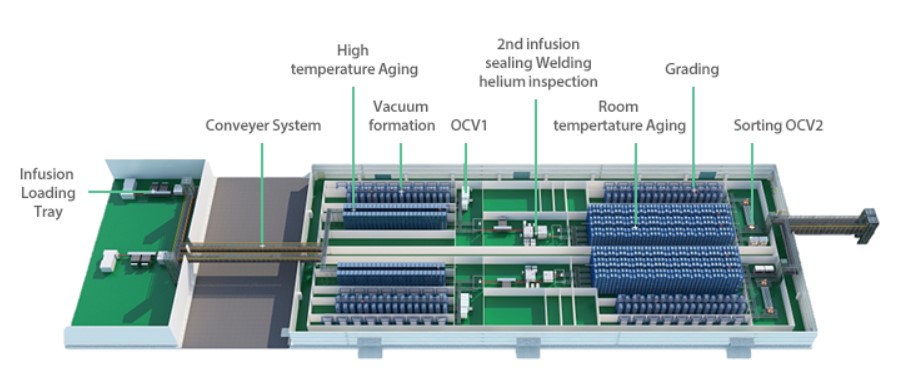

▣ Automatic Battery Production Line

특징

1. Provide whole solution for battery formation and Mass automated production

2. With mature upstream and Downstream equipment integration experience Ensure safe and efficient Production capacity

3. Provide whole battery Abnormality monitoring and safety fire protection programs for safe production

4. Provide advanced battery testing solutions to meet different battery production process requirements

▣ Product Descriptions

▶ RCDS 5V Charge and Discharge Testing System

장점

- High reliability, low noise, intelligent background operating system

- With offline, anti-reverse connection, data loss and other protection functions, software intelligent sorting and matching function.

- Support the second voltage system comparison function.

- Support multi-channel charge and discharge curve comparison, multi-channel parallel function.

- High quality discharge energy feedback to the grid, efficiency ≥ 75%

Feature introduction

- Charge and discharge dcharacteristic test.

- Voltage test, temperature characteristic test, rate test.

- Dynamic and static SOC test, DC internal resistance test.

- Mixed pulse power performance test, pulse test.

- Working condition simulation

Specification Parameter

- Voltage range : 0-5V

- Points resolution : 0.1mV

- Current range : 0-200 A

- Points Resolution : 1mA

- Voltage accuracy : ±(0.05% FS)

- Current accuracy : ±(0.1% FS)

- Current response times : ≤ 10ms

- Communication method : LAN

- Discharge energy feedback grid

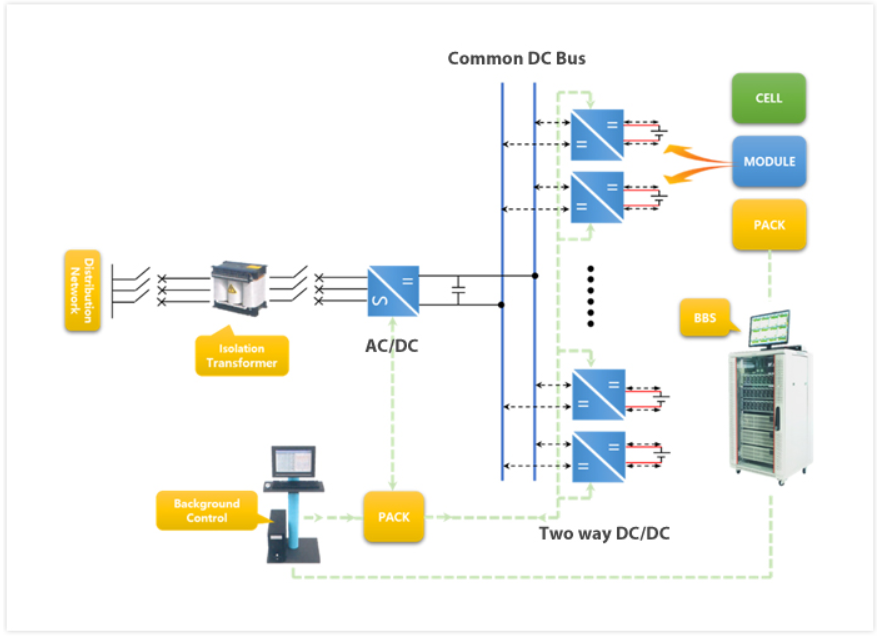

Regenerative Testing Solution

▣ DCIR

장점

- High accuracy and safety

- Real time circuit control and monitoring

- Extendable to many units

- Easy installation and matintenance in one place design.

스펙

- Channel : Can be changed according to customer's needs

- Current range : 0-100A / 200A

- Operation mode : CC / CV

- Communication : IEEE802(LAN) , TCP/IP

▣ PROGRAM

특장점

- Stabilize supply and demand of equipment and secure economical efficiency.

- Ensuring ease of maintenance between formation equipment.

- Efficient operation through powerful GUI environment

Function introduction

- Connection processing with external host. (IMS)

- Connection with Formation Equipment (EPC)

- Information Display from formation

Safety function specification

- Overcharge protection

- Prevent over discharge

- Overcurrent protection

- Overvoltage protection

- Internal overheat protection

- Emergency stop function

- Connection monitoring function

- Secondary currency of input power

- CPU fault detected

- Unit smoke detection

- Unit temperature detection
