(주)성원중기계

건설 및 채광용 기계장비 제조업032-817-2286

진공 흙이기기 기계(Auger Machine)최종 수정 일자 : 2020-07-27 10:03:20

1. AUGER

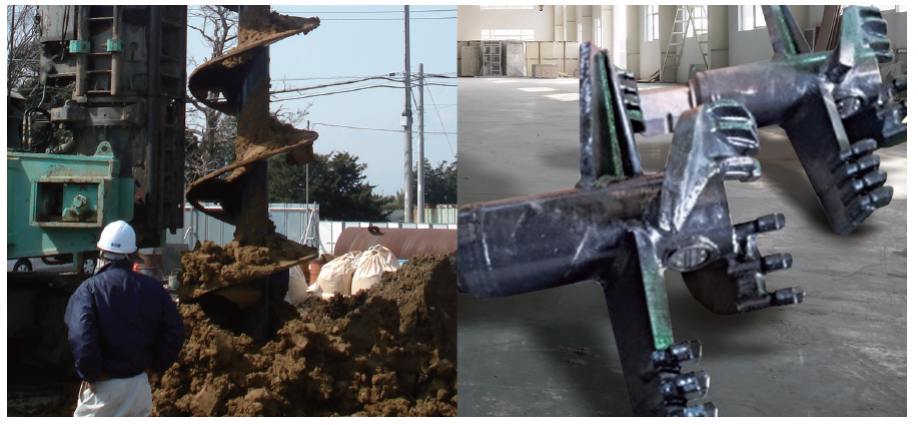

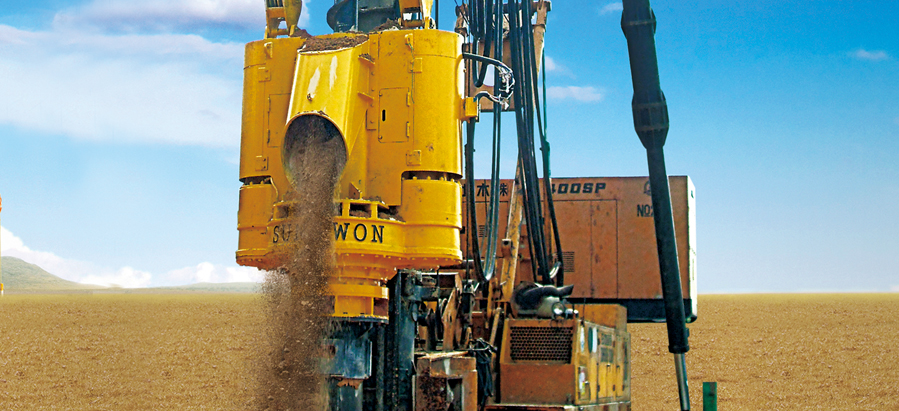

Auger Machine
We, SUNGWON Heavy Machinery, have been manufacturing and supplying
rock, soil drilling equipment and tools of DTH Hammers, Hammer Bits and
Auger Machines in Korea.

Auger Specification

Single Augers
For Rod operation

Separate Augers

For Casing operation

Doughnut Augers
For Rod & Casing operation
(2 in 1 function)

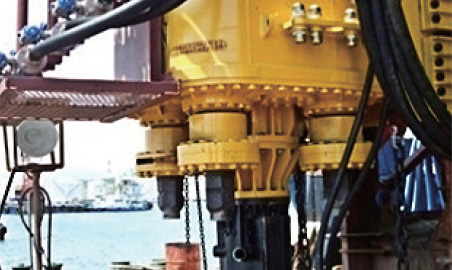

Multi shaft Augers
For Ground Improvement & Sea [beach]
Wall Foundation work using DCM
construction method

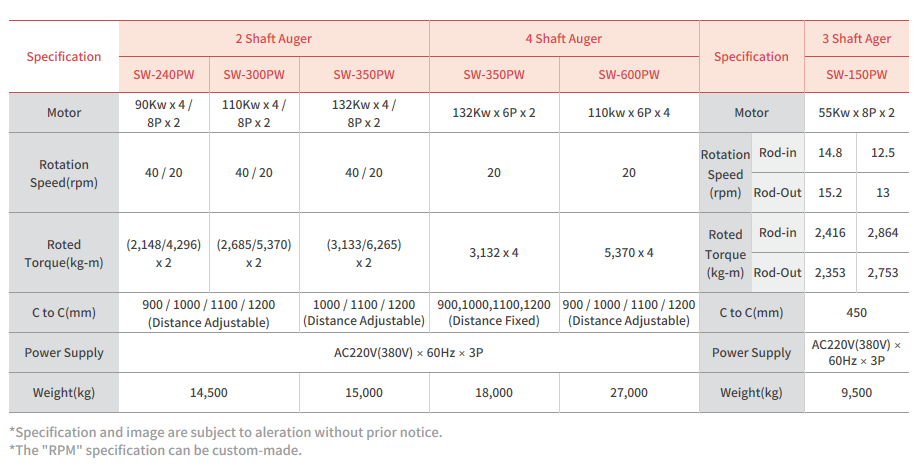

Multi Shaft Auger SPECIFICATION

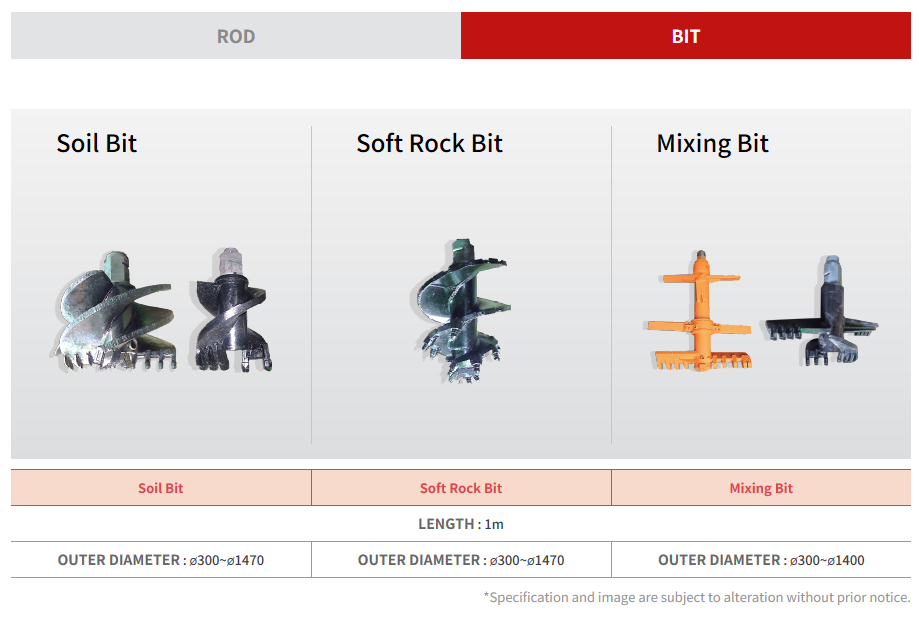

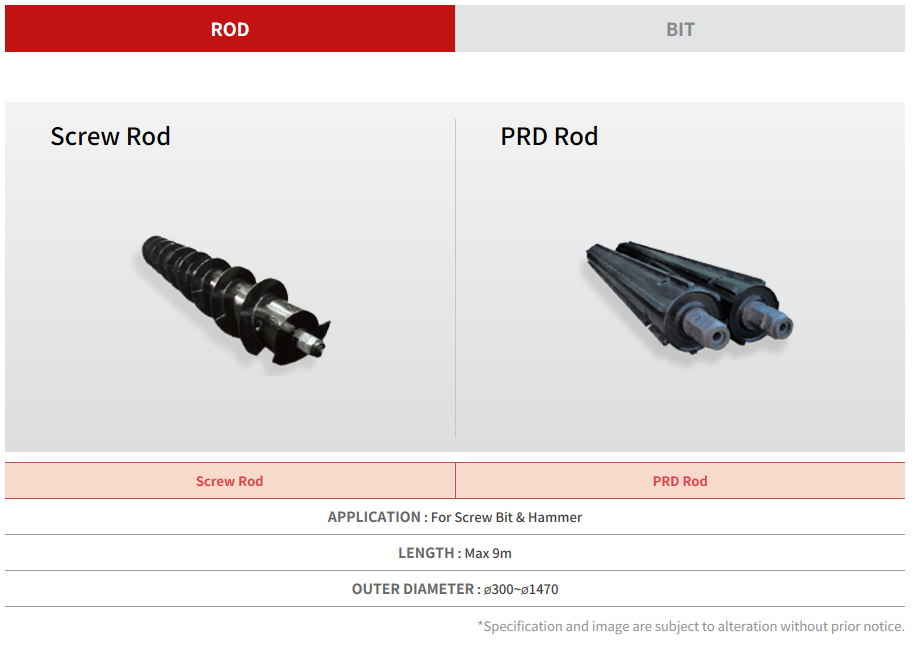

2. ROD&BIT

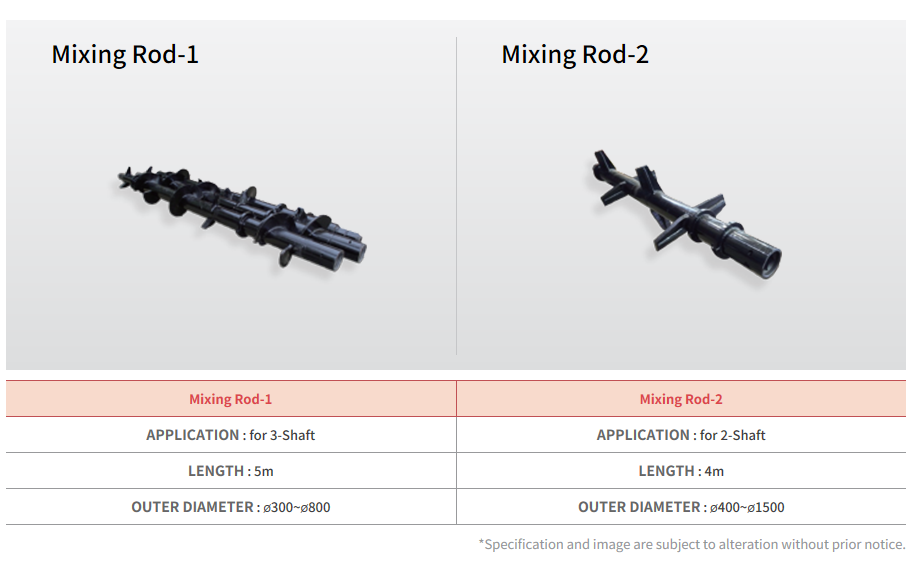

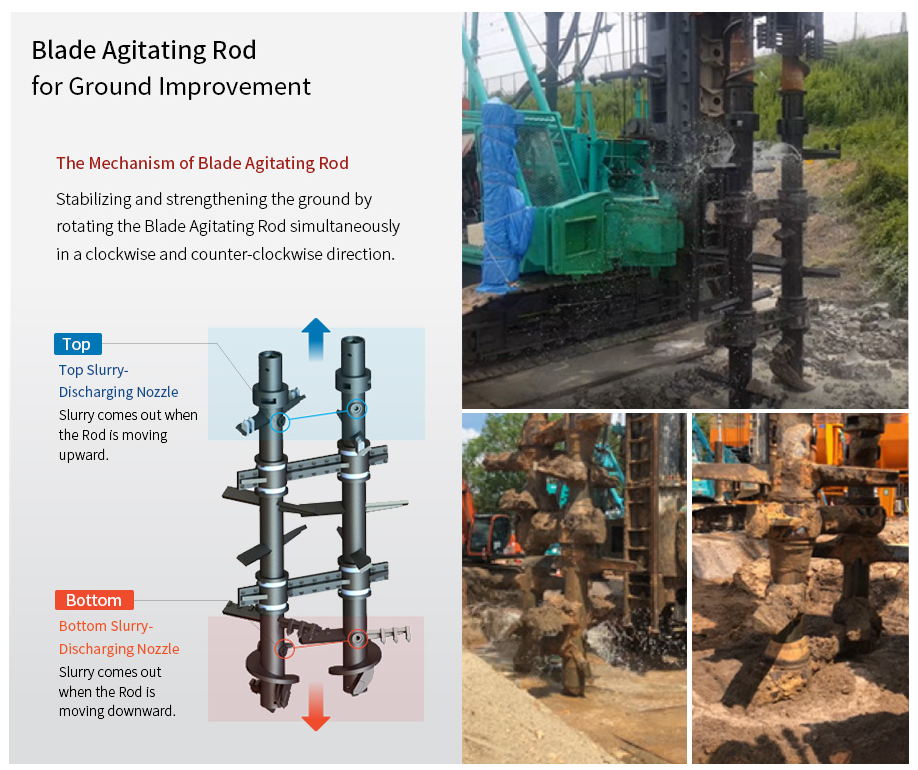

Features of Blade Agitating Rod

1. Efficient Structure & Role
The discharging Exit for Slurry is installed at both Top & Bottom part of the Blade Agitating Rod. This multi-discharging outlet outperforms the general discharging mono Exit when mixing the soil and cement slurry.

2. Soil Mixing Technology
The Rods with blade have functions of a soft soil stabilization which mixes soft soil in situ with cement slurry to produce soil-cement with higher strength.

3. Reduction in Construction Period (Time & Cost Saving)
The discharging outlet at the Bottom plays a role of mixing the soil with Slurry when in operation downward. The other outlet at the Top functions in mixing the soil & cement slurry as well when in operation upward.

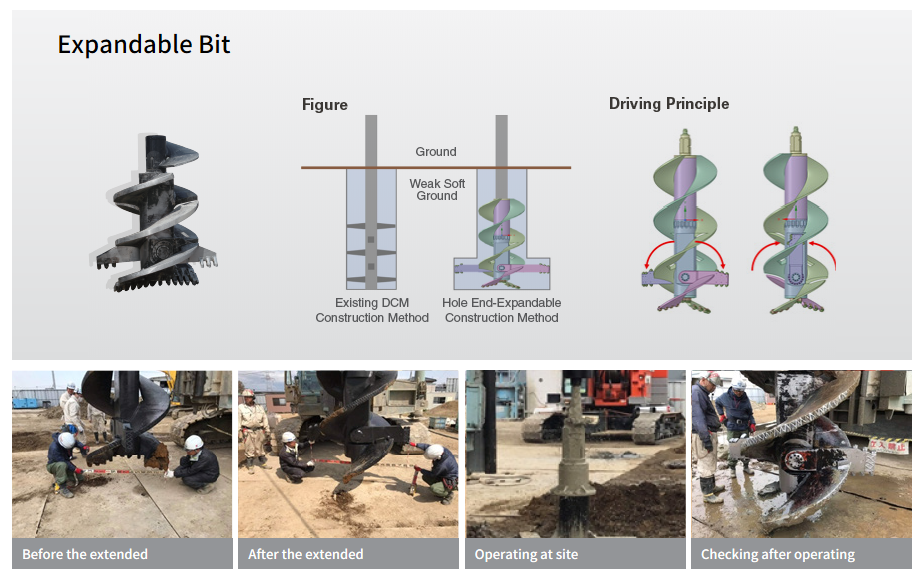

Features of Expandable Bit

The tools help to create the structure to increase the Bearing Capacity at the hole-end of the drilling, leading to saving the construction cost and shortening the construction period.
-Increasing supporting structures by more than 30%
-Reducing construction costs by more than 40%
-Shortening construction period by more than 30%

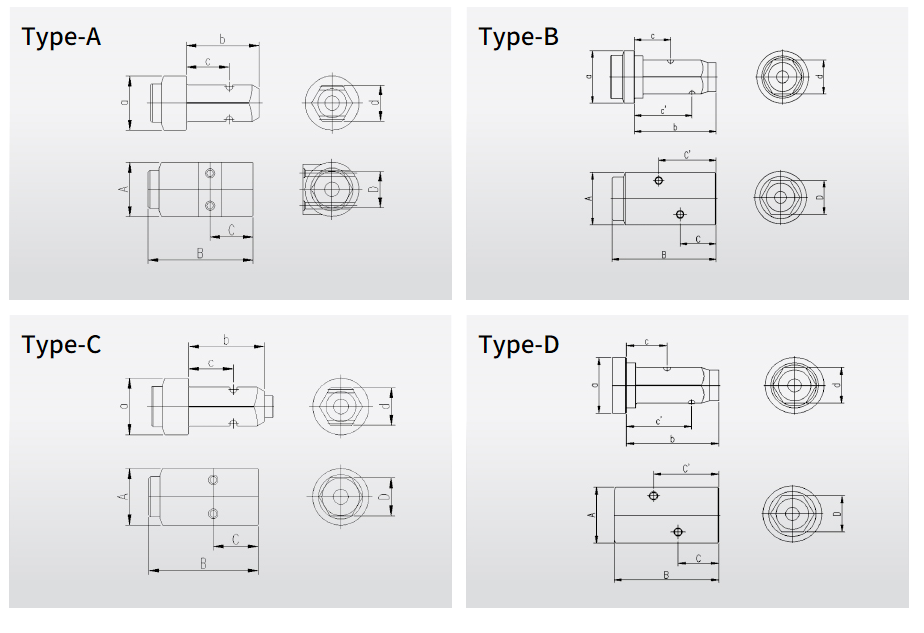

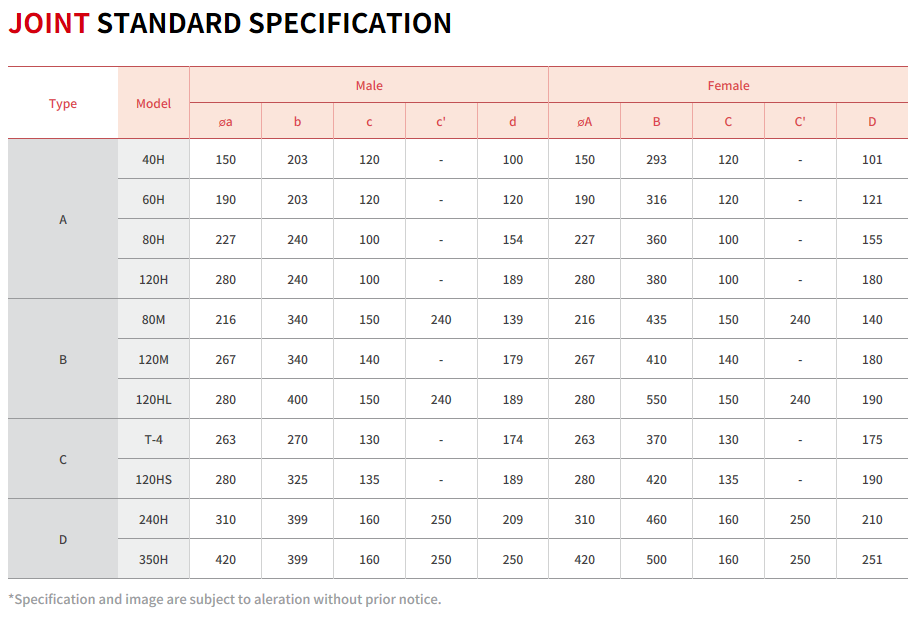

3. JOINT
