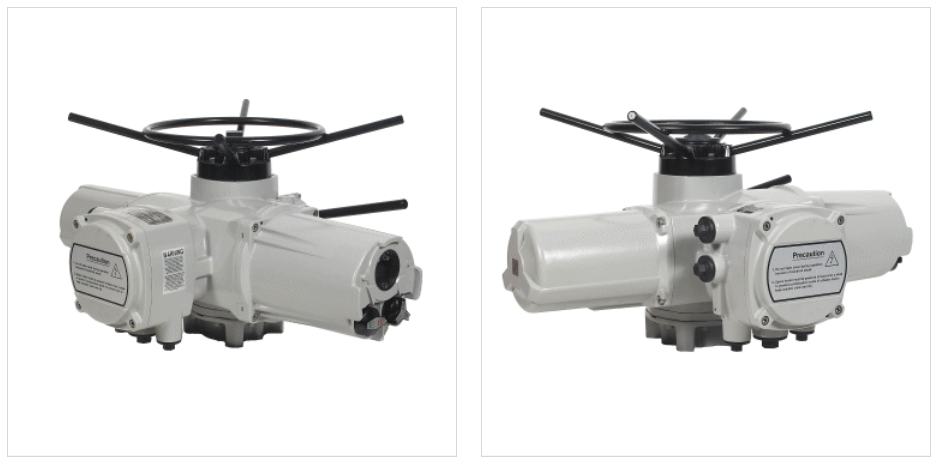

ELECTRIC MULTI-TURN ACTUATOR 최종 수정 일자 : 2020-07-17 10:37:09

- HM004, 008, 011

-HM020, 040

-HM060

-HM100, 150, 200, 300

DESCRIPTION
- HM-series electric multi-turn actuator is specially designed for all multi turn valve applications such as globe, gate valves and similar usages - Wide range of output torque and control options meet your specific requirement - HM-series provides high reliability and performance - HM-series is simple and safe, and rapid non-intrusive commissioning with infra-red control - The digital position display clearly indicates the status of valve and actuator - With our extensive product range and engineering knowledge, HKC can provide solutions for costomer requirements - User friendly easy controls and indication - simple commissioning & trouble shooting

FEATURES
- Robust and low weight due to high grade aluminum alloy housing (except HM-100~300)

- High corrosion resistance due to hard anodizing and polyester coating

- Direct output torque range from 35N.m to 3000N.m

- Wide range of voltage available

- Digital LCD window & smart design

- Rugged design construction (Water tight : IP68, Explosion proof : Eexd IIb T4, IP68)

- Hand wheel for manual operation engaged by a hand/auto lever

- Valve torque indication

- Setting tool (infrared setup)

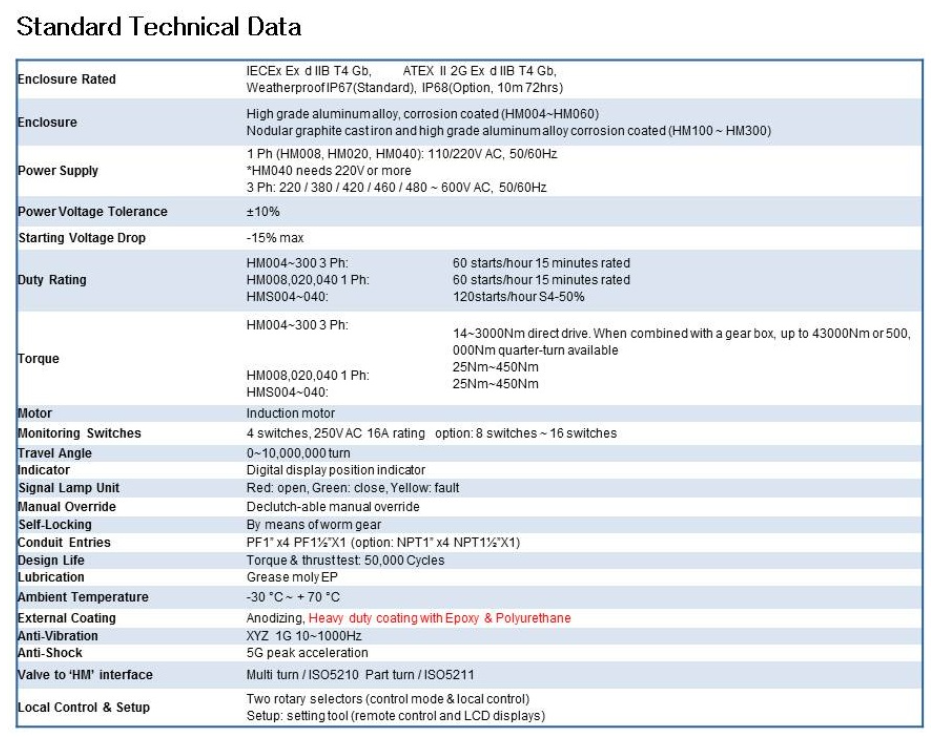

SPECIFICATION
