Isolating valves최종 수정 일자 : 2020-07-16 10:41:47

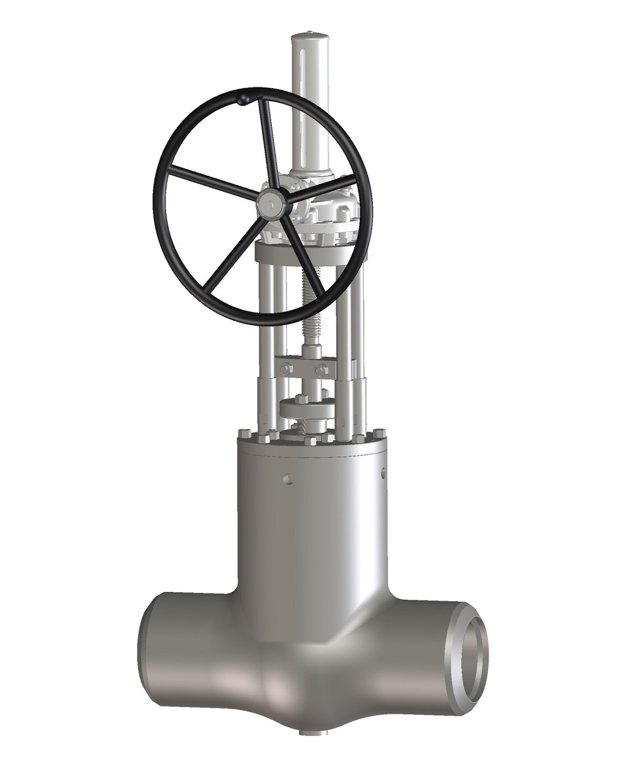

◆kkp-600
| Fig no.
KKP - 600 Pressure rating
600 / 600 lbs Size range
3 - 24 Body materials
(S)A216-WCB, (S)A217-WC6, (S)A217-WC9, (S)A217-C12A End connections
BW Features
Parallel Slide, Pressure Seal Bonnet, Integral Backseat
|
◆kkp-900
| Fig no.
KKP - 900
Pressure rating
900 / 900 lbs Size range
3 - 24 Body materials
(S)A216-WCB, (S)A217-WC6, (S)A217-WC9, (S)A217-C12A End connections
BW Features
Parallel Slide, Pressure Seal Bonnet, Integral Backseat
|
◆kkp-1500
|
Fig no.
KKP - 1500 Pressure rating
1500 / 1500 lbs Size range
3 - 24 Body materials
(S)A216-WCB, (S)A217-WC6, (S)A217-WC9, (S)A217-C12A End connections
BW Features
Parallel Slide, Pressure Seal Bonnet, Integral Backseat
|
◆kkp-2500
|
Fig no.
KKP - 2500
Pressure rating
2500 / 2500 lbs Size range
3 - 20 Body materials
(S)A216-WCB, (S)A217-WC6, (S)A217-WC9, (S)A217-C12A End connections
BW Features
Parallel Slide, Pressure Seal Bonnet, Integral Backseat
|

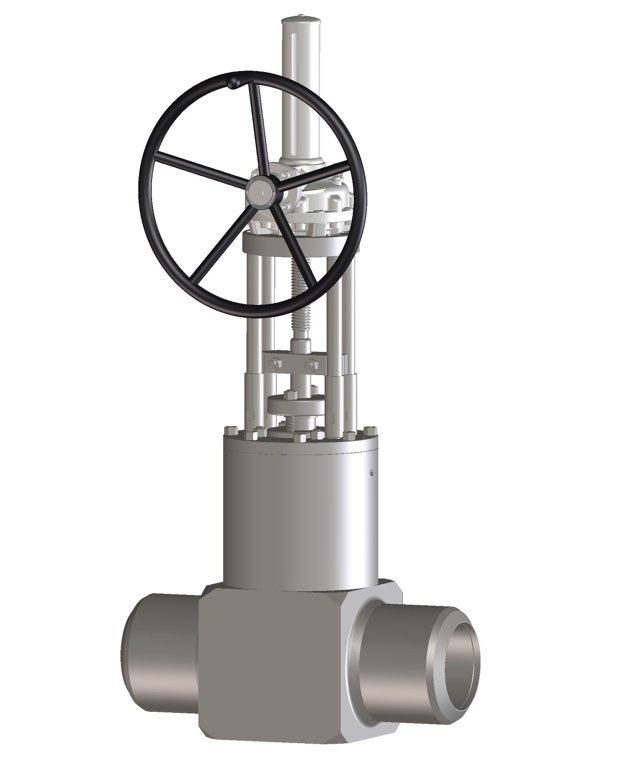

◆KJP-1500
|
Fig no.
KJP - 1500
Pressure rating
1500 / 1500 lbs
PN 250 Size range
6 - 24 Body materials
(S)A105N, (S)A182-F11, (S)A182-F22, (S)A182-F91, (S)A182-F92, 1.0460, 13CrMo4.5, 11CrMo9.10, 1.4903, 1.4901, 1.6368 End connections
BW Features
Parallel Slide, Pressure Seal Bonnet, Integral Backseat
|
◆KKP-2500
|
Fig no.
KKP - 2500
Pressure rating
2500 / 2500 lbs Size range
3 - 20 Body materials
(S)A216-WCB, (S)A217-WC6, (S)A217-WC9, (S)A217-C12A End connections
BW Features
Parallel Slide, Pressure Seal Bonnet, Integral Backseat
|
◆KJP-900-1500
Fig no.
KJP - 900 - 1500
Pressure rating
900 / 1500 lbs
PN 250
Size range
1/2 - 2
Body materials
(S)A105N, (S)A182-F22, (S)A182-F91, (S)A182-F316(L), 1.0460, 11CrMo9.10, 1.4903, 1.4401
End connections
SW, BW, Flanged
Features
Parallel Slide, Pressure Seal Bonnet, Integral Backseat
◆KJP-2500-3500
Fig no.
KJP - 2500 - 3500
Pressure rating
2500 / 3500 lbs
PN 500
Size range
1/2 - 2
Body materials
(S)A105N, (S)A182-F22, (S)A182-F91, (S)A182-F316(L), 1.0460, 11CrMo9.10, 1.4903, 1.4401
End connections
SW, BW, Flanged
Features
Parallel Slide, Pressure Seal Bonnet, Integral Backseat

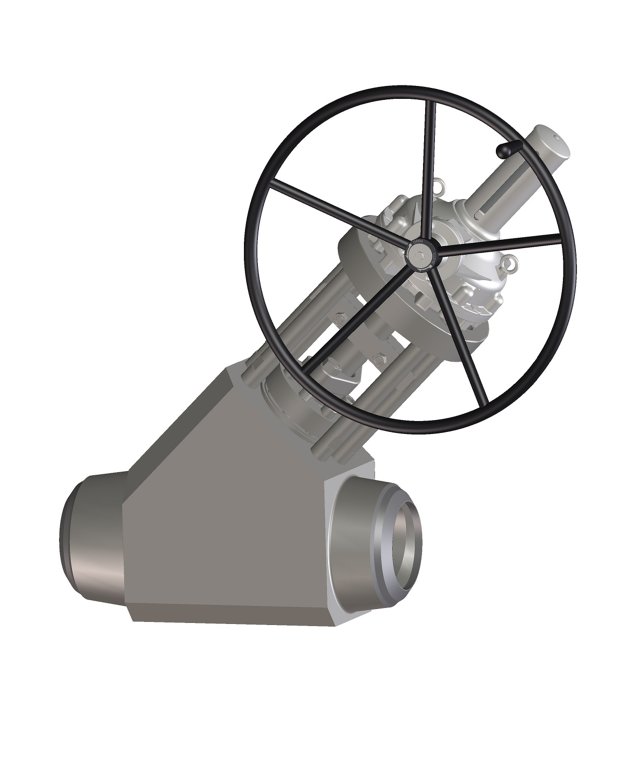

◆KYP--1500
|
Fig no.
KYP - 1500
Pressure rating
1500 / 1500 lbs
PN 250 Size range
6 - 18 Body materials
(S)A105N, (S)A182-F11, (S)A182-F22, (S)A182-F91, (S)A182-F92, 1.0460, 13CrMo4.5, 10CrMo9.10, 1.4903, 1.4901 End connections
BW Features
Pressure Seal Bonnet, Integral Backseat
|
◆KYP-2500
|
Fig no.
KYP - 2500
Pressure rating
2500 / 2500 lbs
PN 400 - PN 500 Size range
6 - 18 Body materials
(S)A105N, (S)A182-F11, (S)A182-F22, (S)A182-F91, (S)A182-F92, 1.0460, 13CrMo4.5, 10CrMo9.10, 1.4903, 1.4901 End connections
BW Features
Pressure Seal Bonnet, Integral Backseat
|

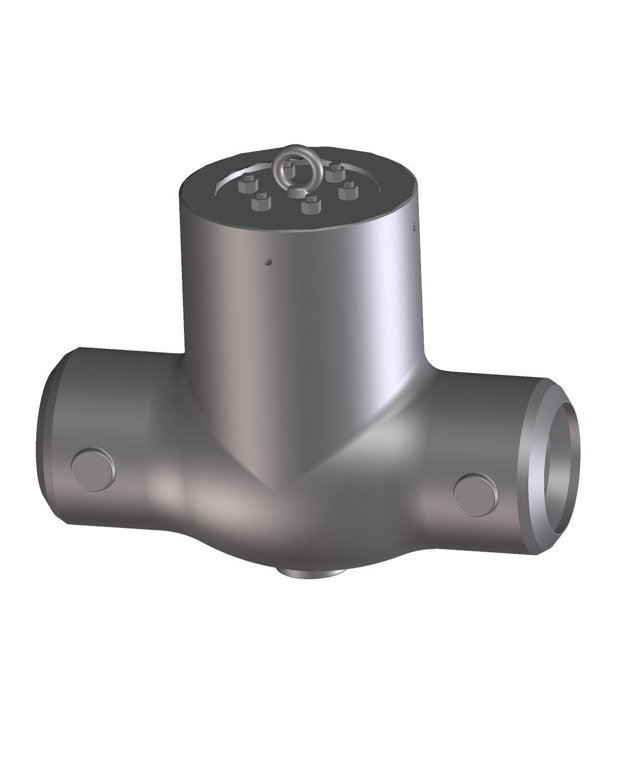

◆KCP
|
Fig no.
KCP
Pressure rating
1500 / 1500 lbs Size range
3 - 24 Body materials
(S)A216-WCB, (S)A217-WC6, (S)A217-WC9, (S)A217-C12A End connections
BW Features
Swing Check Valve, Pressure Seal Bonnet
|

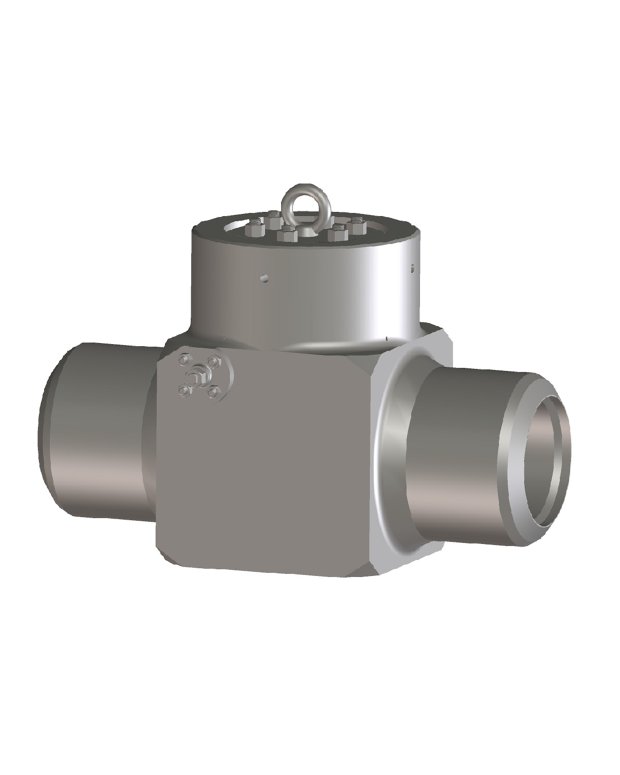

◆KDP-1500
|
Fig no.
KDP - 1500
Pressure rating
1500 / 1500 lbs
PN 250 Size range
6 - 24 Body materials
(S)A105N, (S)A182-F11, (S)A182-F22, (S)A182-F91, (S)A182-F92, 1.0460, 13CrMo4.5, 10CrMo9.10, 1.4903, 1.4901, 1.6368 End connections
BW Features
Swing Check Valve, Pressure Seal Bonnet
|
◆KDP-2500
|
Fig no.
KDP - 2500
Pressure rating
2500 / 2500 lbs
PN 400 - PN 500 Size range
6 - 20 Body materials
(S)A105N, (S)A182-F11, (S)A182-F22, (S)A182-F91, (S)A182-F92, 1.0460, 13CrMo4.5, 10CrMo9.10, 1.4903, 1.4901, 1.6368 End connections
BW Features
Swing Check Valve, Pressure Seal Bonnet
|
