071-4111-0155
BLIND RIVET최종 수정 일자 : 2018-11-25 07:08:50

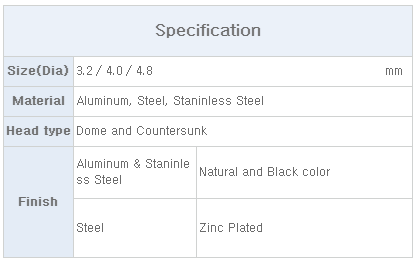

▣ OPENVET (Standard Blind Rivet)

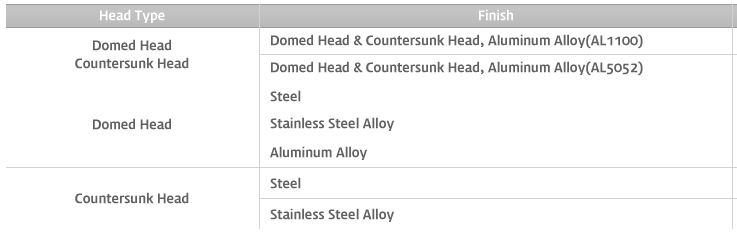

Openvet List
Deisgn Guide
| CHANNEL FASTENING The channel material shuld be placed in blind side Use Long Nose Assembly, in this case, you required to use The maximum length of channel is 200mm |
| EDGE FASTENING When you need to install the rivet on the conner of sheet. the distance from the center of hole to he edge should be Twice The Rivet Dia(D) |
| SOTF MATERIAL FASTENING Use metal washer on soft material. Use large flange rivet. Place the soft material at front side. |
| THIN AND WIDE HOLE FASTENING Place thin sheet or wide hole material on front sied. Make tight hole on the thin sheet. |
| PIVOT FASTENING If you want to have a rotating sheet after instalation. Use special nosepiece to provied a small gap between the rivet and the rotateing sheet The rotating sheet should be always placed the front side |

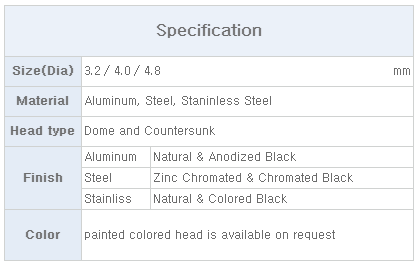

▣ MULTIVET
Multivet List
특징
| HOLE FILL FASTENING During installation, Multivet offer good hole fill. Provide string vibration resistance joint. At the very soft material you need to discuss about the grip-range with us, as the good as the good hole fill make often hole dia enlarge and the availble thickness thinner. |
| MULTI_GRIP FASTENING One multivet can be used instead of several standard grip rivets. Reduce your labour cost and stock storage. |
| THIN MATERIAL FASTENING Our Multivet offer a large bearing area on the rear sheet. even you use very thin sheet at the rear siad, out multivet will offer a well-grip The large bearing area will high resistance to pull-out load on the host material |
| WELL GRIP GASTENING Our Multivet offers a well fastening and high resistance against vibration After installation, the eyeball is well griped in the rivet body. lt will prevent DAMAGE, ELECTRIC PROBLEMS OR RATTLING due to losen eye-ball |

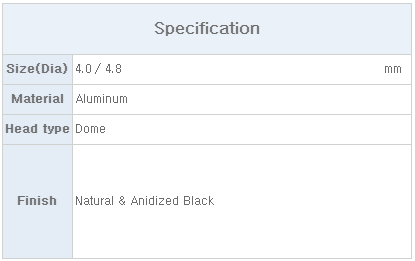

▣ CLAMPVET

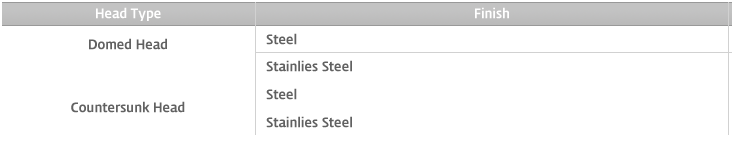

Clampvet List

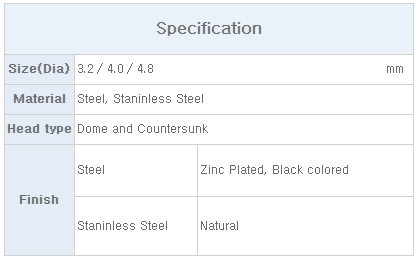

▣ TRIVET

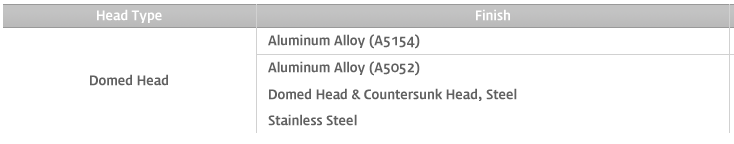

Trivet List
