SPEED RIVET최종 수정 일자 : 2018-11-25 07:08:50

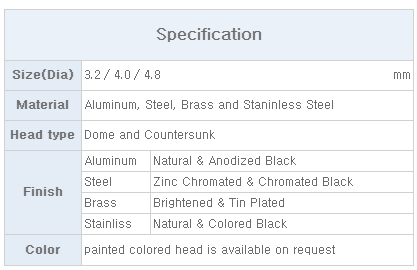

▣ SPEED RIVET


Speed Rivet List


특징

Our speed rivet has a Bulbed tail. And it is foreshortened and expanded radially during installation.

because this Bulbed tail will give you high viaration and good hole fill.

We supply the speed rivet with many different material and finishes.

So you wil have various options accordint to you needs.

Speed rivets are podded in a paper pod. So you can install 20 to 70 ricets with one easy loading.

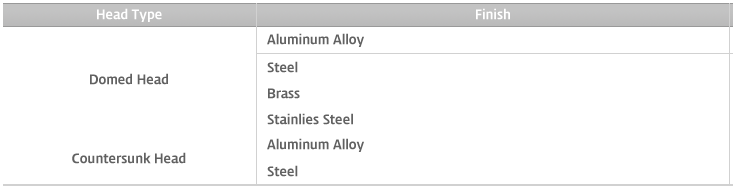

▶ Domed Head - Aluminum Alloy


▶ Domed Head - Steel


▶ Domed Head - Brass


▶ Domed Head - Stainless steel


▶ Countersunk Head - Aluminum Alloy


▶ Countersunk Head - Steel

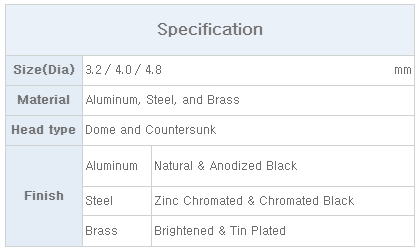

▣ SPEED CHOVET


Speed Rivet List


특징

Our speed chovets have internally tapered bore. And it is expanded radially during installation,

because this internally tapered bore will provide minimum stress to soft or brittle host materials.

Our speed chovet provides high shear and controlled clamp. it is ideal for soft and brittle materials. Speed chovets are podded in a paper pod. So you can install 20 to 70 rivets with one easy loading.

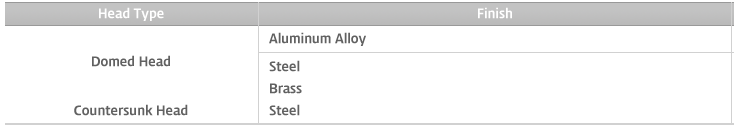

▶ Domed Head - Aluminum Alloy


▶ Domed Head - Steel


▶ Domed Head - Brass



▶ Countersunk Head - Steel



▣ SPEED SCREW


특징

Speed screw combines benefit of rivet and screw for Plastic Applications.

They are installed form one side of the workpiece with hexagon Mandrel.

The Hexagon Mandrel expands radially during installation, and forming a thread in the host material.

The rear sheet must be thicker than 1.62mm

The hardness of host material shold not be exceed 105Hv5


▶ Steel
